5.5m Coal Charging Equipments for coke oven plant
- Dalian
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | DHHI | |
| Model Number | 5.5m | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
5.5m Coal Charging Equipments for coke oven plant1.Double-locking structure
2.Using no-sleeve roller chain
3.ISO 9001:2008

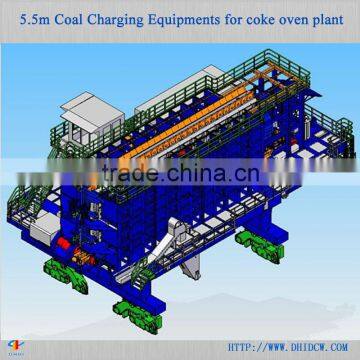

5.5m Coal Charging Equipments for coke oven plant
Function: 5.5m Coal Charging Equipments for coke oven plant traveling on the tracks of coke oven pusher side,and
receiving the coal under the coal tower.The stamping machines are fixed under the coal tower,and
stamping the coal which falling into coal tank with a certain intensity coke cake.Then the coal charging car traveling to the specific carbonization chamber,and loading the tamping shaped coke cake into the carbonization chamber through the charging device.Auxiliary functions can be configured sealed
frame and spillage coal recovery device.
Description of 5.5m Coal Charging Equipments for coke oven plant:
(For reference only, the design can be personalized according to the user’s requirements)
Including main parts | 1.Steel structure 2.Travel drive device 3.Charging device | ||
4.Spillage coal recovery device 5.Seal frame device | |||
6.Hydraulic system 7.Air conditioning system | |||
8.Lubrication system 9.Wiring duct 10.Electrical System | |||
The main technical parameters | Travel drive device | Travelling speed: | 75m/min |
Rail distance: | 12000mm | ||
Electric motor: | 30kW | ||
Wheel diameter: | φ1000mm | ||
Charging device | Coal charging speed: | 1.6-25m/min | |
Electric motor: | 200kW | ||
Backboard winch speed: | 20m/min | ||
Hydraulic system | System operating pressure: | 7Mpa | |
Working medium: | abrasive resistant hydraulic oil/Fatty and ester | ||
Equipment | Total motor power: | About 550kW | |
Total weight : | About 500t | ||
| Technological Characteristics | 1.VVVF speed control technology is used, operating smoothly without shock; | ||
2.The coal wall is lateral twist opened,it won’t hurt the coal cake and reduce the rate of collapse of coal cake; | |||
3.Proprietary chain drive technology,help the coal charging action running smoothly; | |||
4.Charging bed plate uses new technology,increases its wear resistance; | |||
5.New doublesealed structure is used on the coal charging seal frame, sealing effect is improved; | |||
| 6.Double-locking structure is used for back board; | |||
7.the scraper blades are used for spillage coal reclaiming; | |||
8.One- spotting technology is used; | |||
Composed of parts:
Six Significant Technical Features:
Strict quality control:
Factory final assembly:
