Home > Products > CHECK VALVE > Ductil Iron Spring Loaded Vertical Check Valve
Ductil Iron Spring Loaded Vertical Check Valve
- Qingdao/Tianjin
- T/T L/C D/P D/A Money Gram
You May Like
Product Details
| Standard or Nonstandard | Other, Standard or Non standard | Structure | Other, ductile iron vertical check valve | |
| Pressure | Medium Pressure | Power | Hydraulic | |
| Material | Other, Ductile Iron,Cast Iron or Stainless Steel | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | DN50-DN1000 | |
| Place of Origin | Shandong, China | Model Number | DN50-DN1000 | |
| Brand Name | HENGYU | Application | Other, water |
Product Description
Our Hot-sale products :
Butterfly valve,check valve ,Y type strainer and Air release valve
Product Description

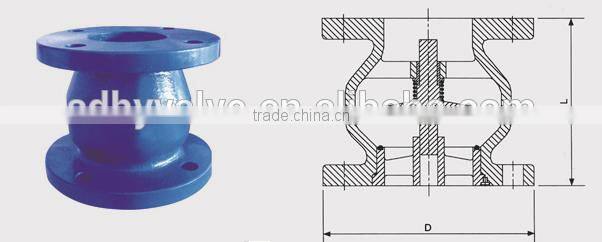

vertical check valve drawing

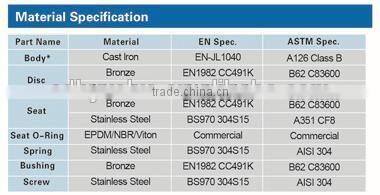

vertical check valve material

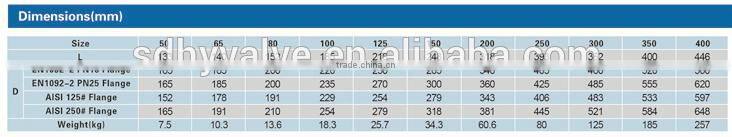

vertical check valve dimension
| Item | Description | Performance Data |
| 1 | Nominal Diameter (mm) | 25 - 600 |
| 2 | Nominal Pressure (MPa) | 1 - 1.6 |
| 3 | Shell Testing Pressure (MPa) | 1.5 - 2.4 |
| 4 | Sealing Testing Pressure (MPa) | 1.1 - 1.76 |
| 5 | Medium Temperature (degree C) | Normal -45-130 degree C, special 200 degree C |
| 6 | Suitable Medium | Fresh Water, Waste Water, Sea Water, Vapour, Gas, Oils, Acid and Alkaline |
| 7 | Operation Methods | Handle, Gear Operators, Electric, Pneumatic |
Products
vertical check valve casting
vertical check valve disc
vertical check valve stem
Assembled vertical check valve
Our workshop
Our show room
Packaging & Shipping
Our Advantage and Service for flap check valve
1. OEM Factory : Professional manufacturer, clients from whole world.
2. High Quality, Competitive Price: Custom is accepted.
3. Complete Service: Long service Life, Fast delivery, Multilingual services.
4. Certificates: ISO9001, CE, NSF, WRAS.
5. Low MOQ: Ready for providing the sample and producing some small orders.
Company Information
Our company is a professional manufacturer of valve products.Annual production valve is one billion us dollars.Our compny covers 667020 aquare meters.Currently we have 150 emplyees,which include 10 engineers.Now we have one hundred set of advanced production and inspection facitlities ,like precision lathe,miller,drilling machine,pressure testiong machine,tensile machie,metallographic analysis,nondestructive detector etc.
Company certificate
FAQ
1,What is our advantage?
We are factory ,so we have very competitive price.And we can response to your for your questions very quick.We have professiona QC team,so we can offer your high quality products and our qualtiy level is very stable.
2,What is our MOQ?
10pc,and sample is free.
3,Delivery time
30 days for one 20FCL
4,Is the pressure test inspection 100%?
Yes,we test the valves one by one
