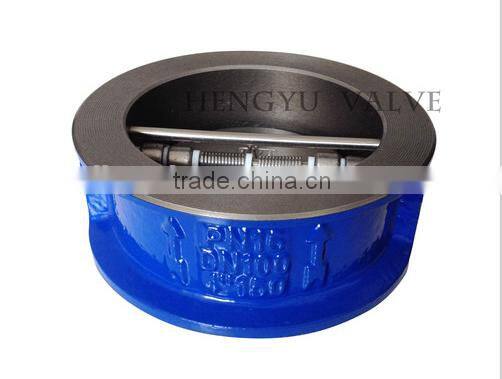

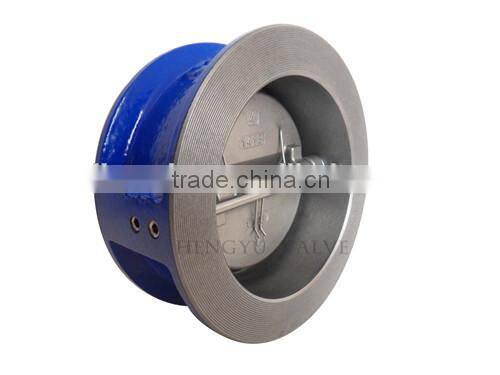

Cast Iron Double Plate Flap Check Valve

Ductile iron double plate flap check valve

Feature:

1.   the short face to face dimension and compact design of this valve allow installation and service in tight spaces.

2. spring assisted for better dynamic behavior.

3. soft sealed for perfect tightness even at low differential pressure.

4. available with flanges EN1092-2 pn10 or PN16. ANSI B16.1 Class 125(other types available on request).

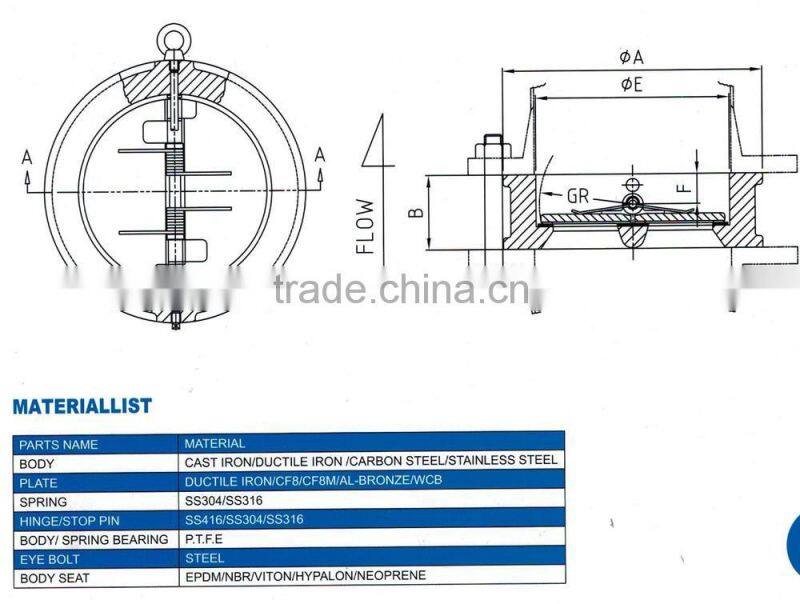

Part materials:

Body: cast iron

Disc: stainless steel

Seat:EPDM/NBR/viton

Hinge pin: stainless steel

stop pin: stainless steel

Pin retainer: stainless steel

spring: stainless steel

washer: PTFE

gasket: EPDM/NBR/viton

STANDARD: PN10/16/class125

size: DN50-DN600.

 TRANSPARENT (BUBBLE) PLASTIC BAGS IN KRAFT CARTON OR IN WOODEN CASES OR AS CLIENTS REQUIREMENTS.
