Round Hole Perforated Pipe/double Storey Screen for Oil Well From the Best China Manufacture
- tianjin
- T/T
You May Like
-
Oversea Market Factory Supplier Customized Perforated Liner/drilled Hole Liner Hot Sales
-
Hot Sales API 5CT Straight Welded Perforated Liner/drilled Hole Liner Oil Equipment
-
Supply Round Hole Perforated Pipe(factory Price)
-
Perforated Pipe Tube
-
Top Quality Factory Supplier Straight Welded Perforated Liner/drilled Hole Liner Hot Sales
-
High Strenth Round Hole Metal Filter Pipe Manufacture
Product Details
| Standard | ASTM, AISI, DIN | Place of Origin | Hebei, China | |
| Brand Name | guangxing | Model Number | 304 | |
| Type | Seamless | Steel Grade | 300 Series | |
| Application | Water | Certification | ISO | |
| Welding Line Type | EFW | Thickness | 25mm | |
| Outer Diameter | 630mm |
Product Description

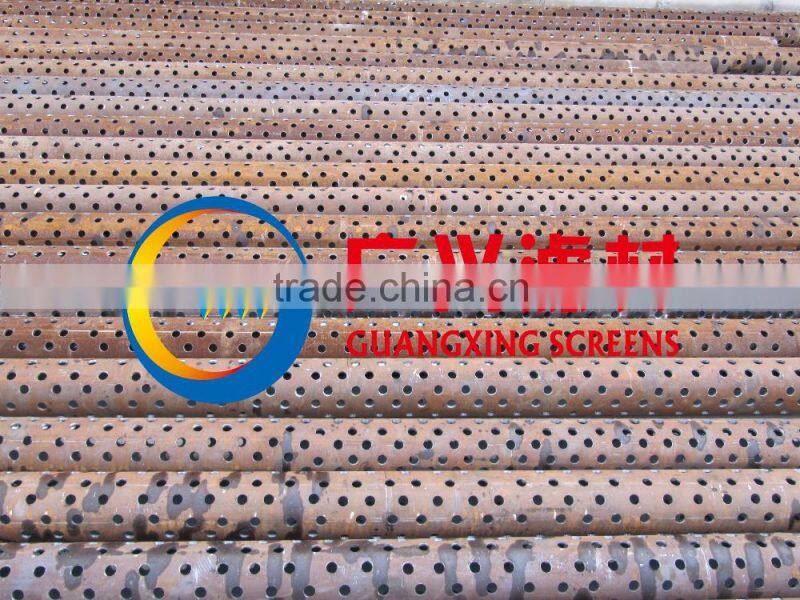

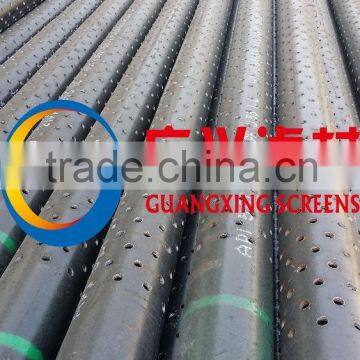

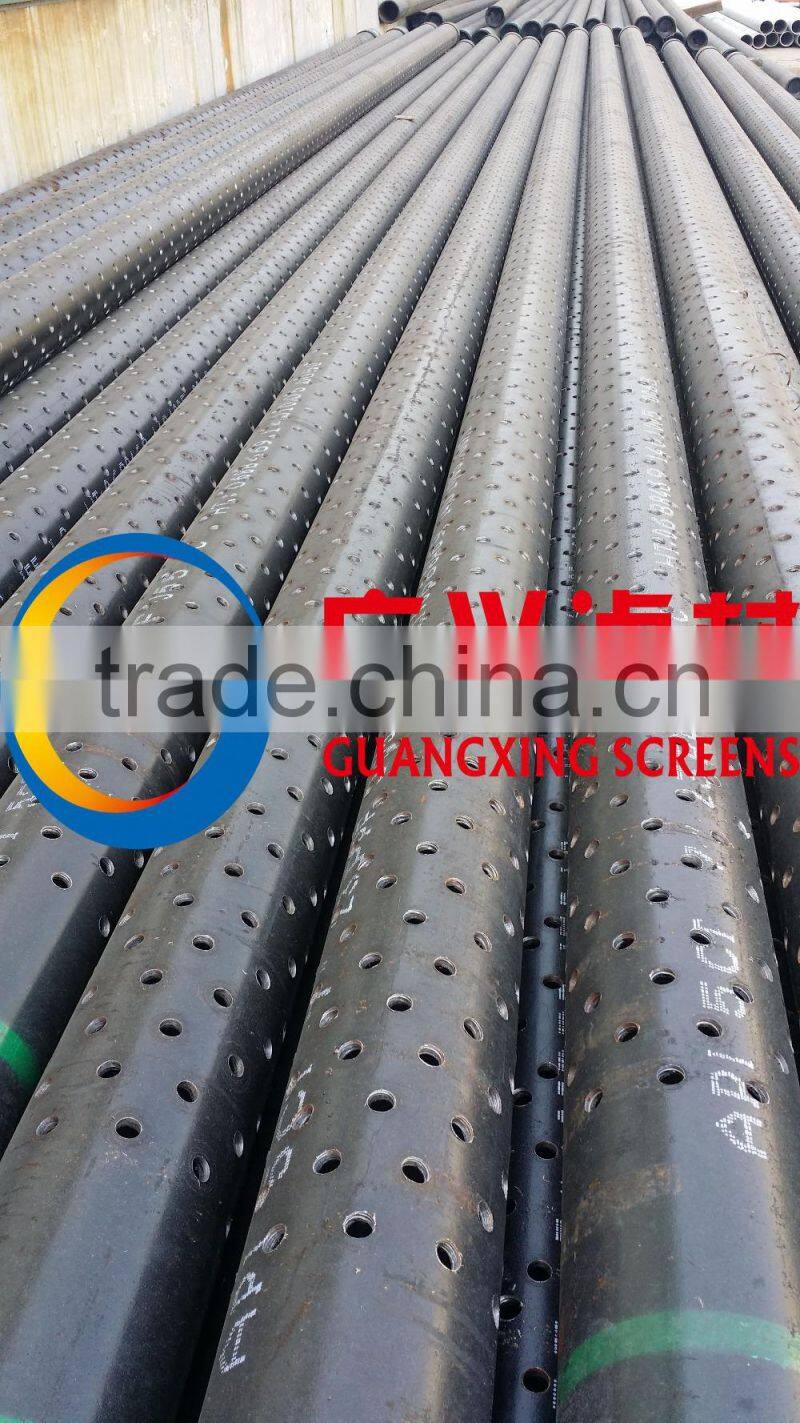

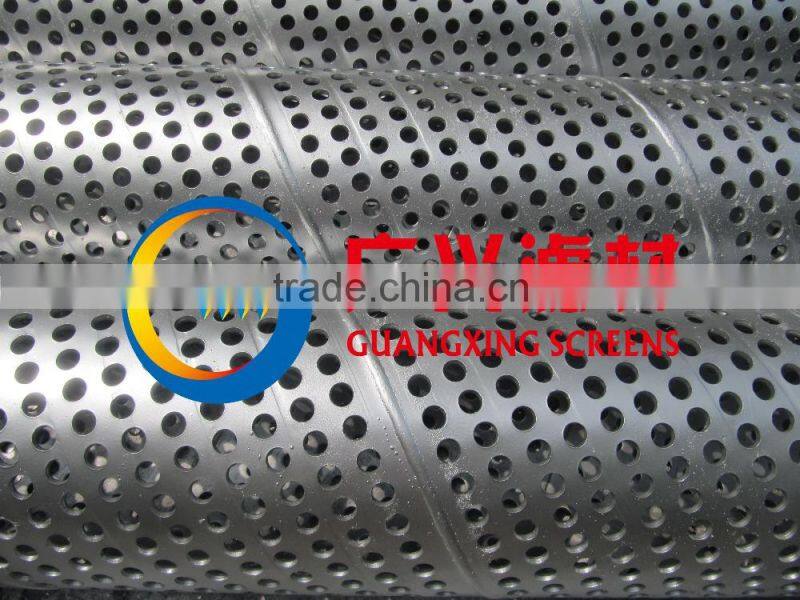

Round Hole Perforated Drilling Pipe
1.different diameter range
2.perforated casing pipe filter
petitive price

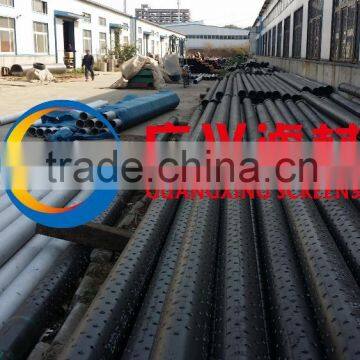

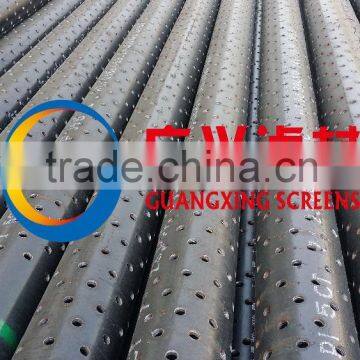

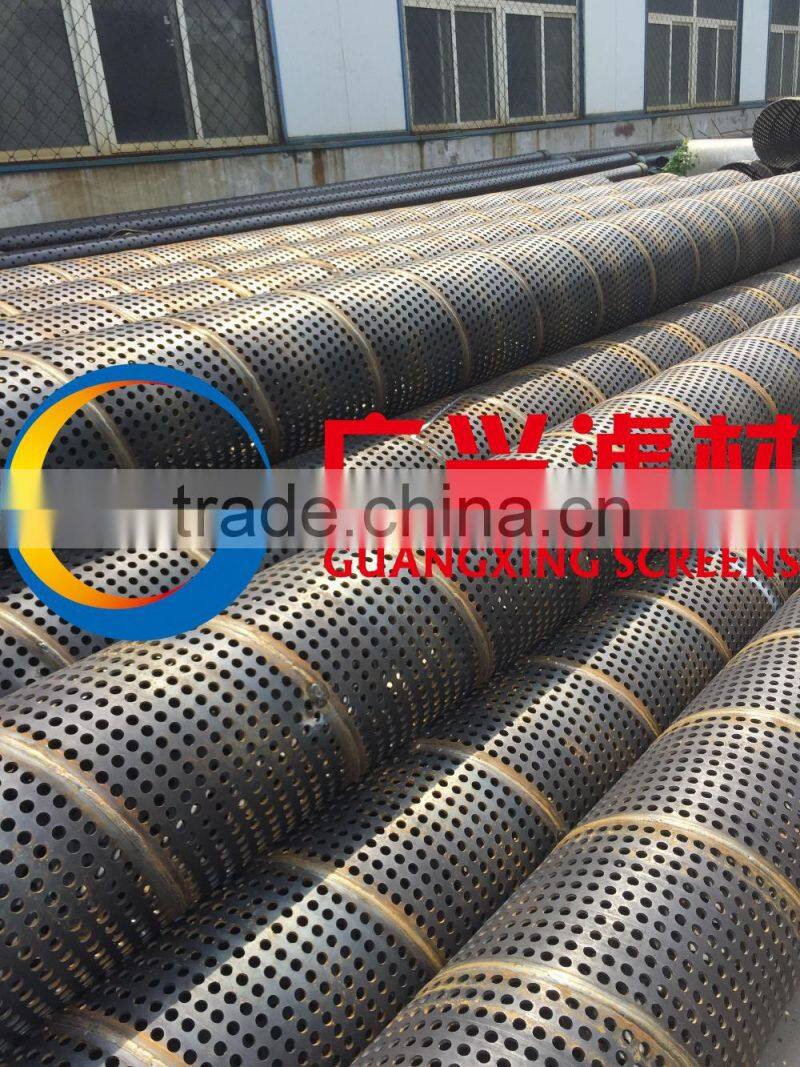

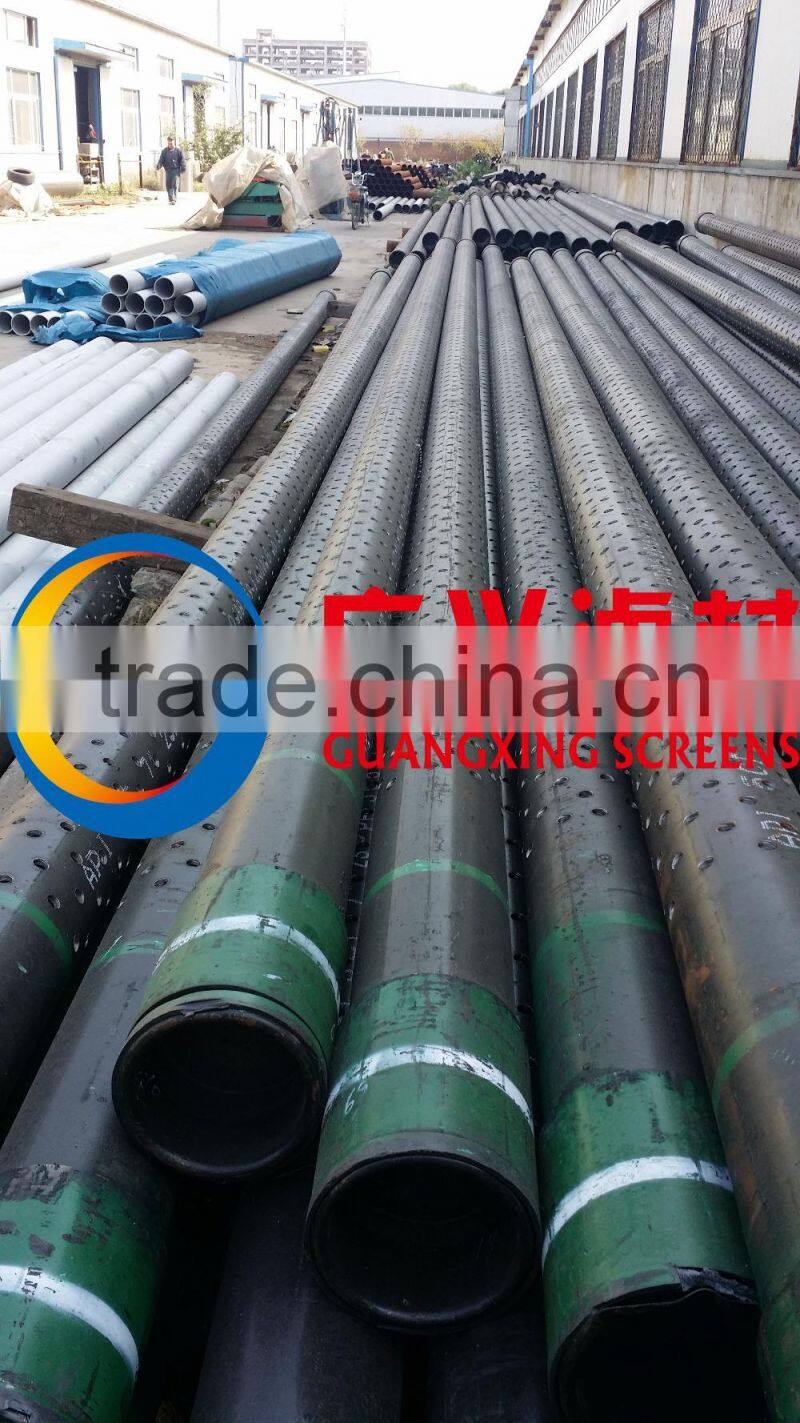

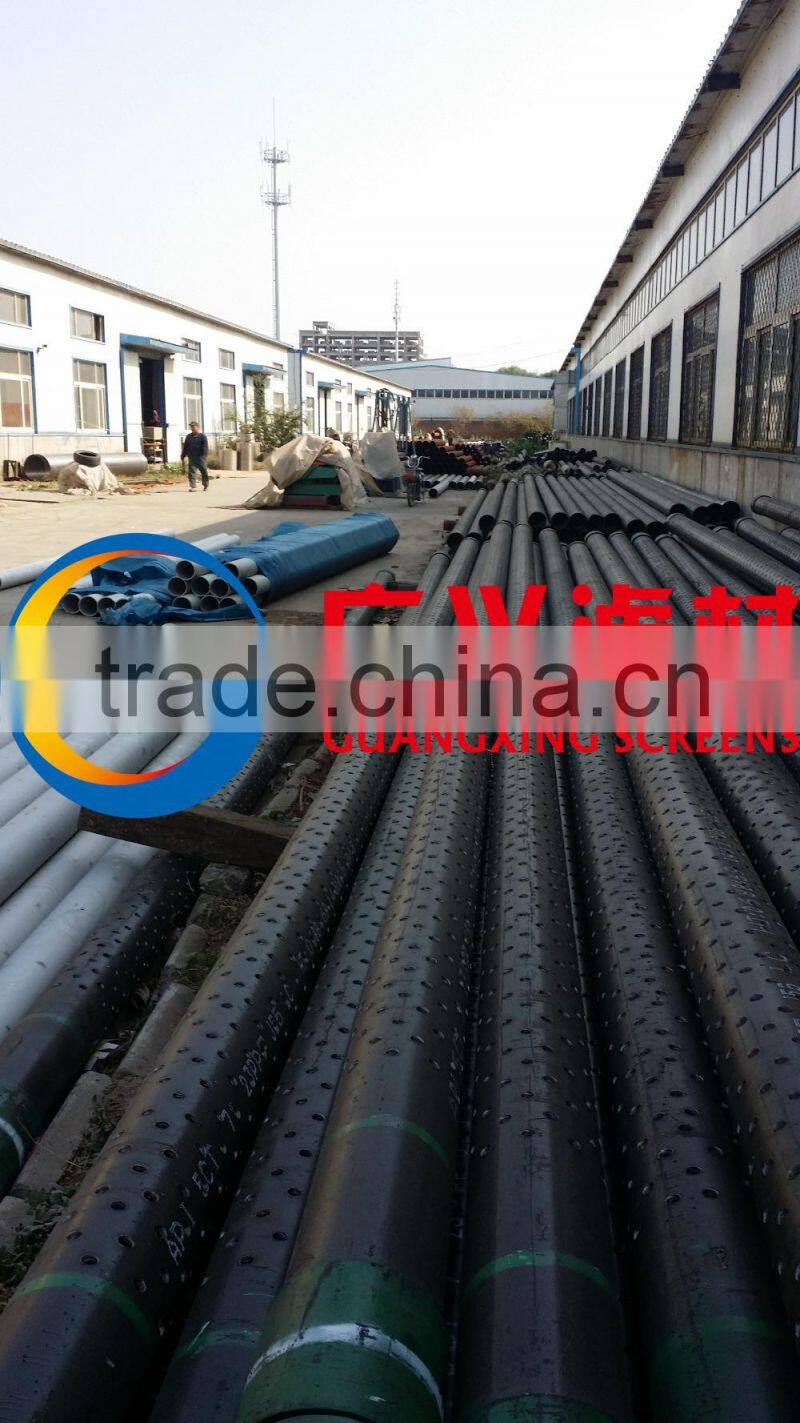

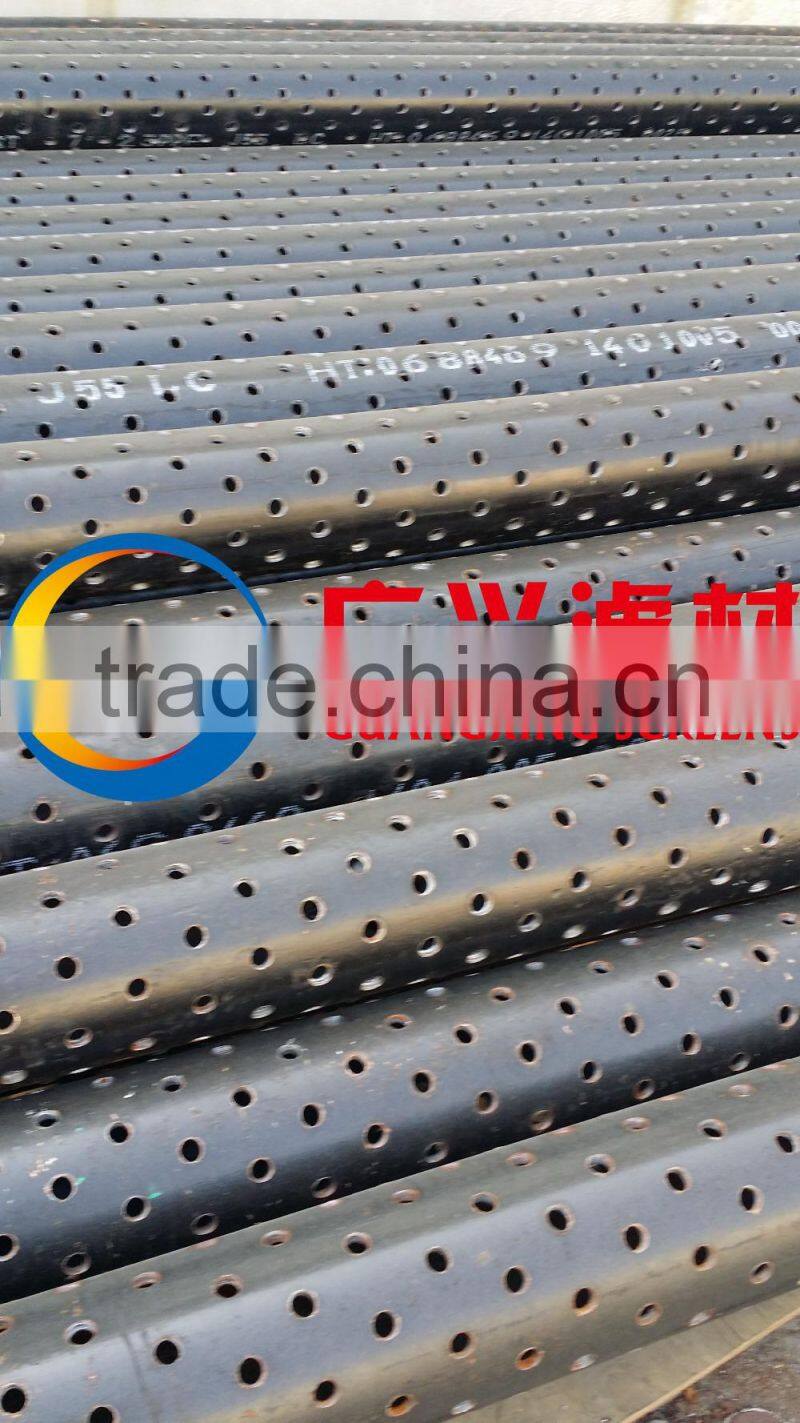

We can offer perforated pipe with stainless steel or carbon steel material,the max outer diameter is 630mm , the max wallthickness is 25mm,the length can be R3,the size of the round hotes is from 5mm to 25mm.Our new machine can drill any patter and any numbers holes as the customer request for water well .
The perforated casing pipe with cutting edge technology,which is manufactured with carbon steel or stainless steel,used for the application of oil reservation layer without much sand or for application of prewents the rock bits dropping off the well bore.
The overall strength of the drilling of the base pipe and is only 2 to 3% smaller than the standard casing or tubing. Therefore, it can withstand compression deformation class have sufficient overall strength. Even if the local deformation, compression portion of the gap can not be enlarged.
Material | Stainless steel or Low carbon steel |
Certifincatipn | ISO 9001:2008 |
OD | 100mm--180mm |
Wall thickness | 3-25mm |
Hole size | 5mm - 25mm |

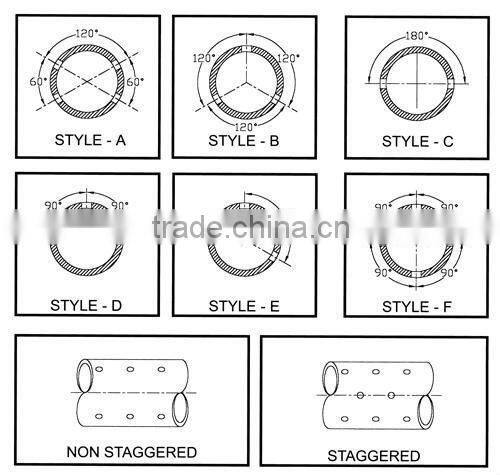

hole design | staggered or non staggered |
Length | as client require |
End connection | plain beveled or threaded |
Surface treatment | Galvanized or painting |
Pipe Size | Holes per feet | Size of hole | Perforated Area per Feet |
3/4" | 78 | 3/16" | 2.15 |
1" | 54 | 5/16" | 4.14 |
1-1/4" | 66 | 5/16" | 5.06 |
1-1/2" | 78 | 5/16" | 5.98 |
2-1/16" | 78 | 5/16" | 5.98 |
2-3/8" | 90 | 3/8" | 9.94 |
2-7/8" | 102 | 3/8" | 11.26 |
3-1/2" | 126 | 3/8" | 13.91 |
4" | 138 | 3/8" | 15.24 |
4-1/2" | 150 | 3/8" | 16.56 |
5" | 162 | 3/8" | 17.88 |
5-1/2" | 174 | 3/8" | 19.21 |
6-5/8" | 186 | 3/8" | 20.53 |
7" | 222 | 3/8" | 24.51 |
9-5/8" | 294 | 3/8" | 32.46 |
The max diameter for us is 630mm. | |||
Hengshui guangxing screens co.,ltd founded in 2010,is a major manufacturer and supplier of vee wire welded products for professional end-users in the world.It is equipped with modern machines and latest technology for the manufacture of high quality welded wedge wire screens in various shapes and size .We have been recongnized for our excellence in customer solutions creativity flexibility and no nonsense mentality coupled with short delivery time and competitive price.We keep the quality according to the ISO 9001:2008 standard to let the customers satisfy.High quality and competitive price and delivering on time is our aim.We believe that we will contribute to world prosperity by establishing bridges between our country and the global world.If you have interested in our wedge wire prodducts,please contact us.
