perforated pipe
- 1000 Meter / Meters per Month
- tianjin
- T/T
You May Like
-
oilfield equipment Factory supplier spiral welded Perforated liner/drilled hole liner oil equipment
-
High Quality API 7" Size of Hole 3/8" 5CT Perforated pipe
-
round hole oil sand control screen /perforated pipe
-
high quality perforated pipes
-
Perforated Drilling Pipe
-
TP 304 perforated round hole slotted deep well pipes
Product Details
| Standard | ASTM, AISI, DIN, EN, JIS | Place of Origin | Hebei, China | |
| Brand Name | guangxing | Model Number | 304 | |
| Type | Seamless | Steel Grade | 400 Series | |
| Application | Oil | Certification | ISO | |
| Welding Line Type | Seamless | Thickness | 25mm | |
| Outer Diameter | 630mm |
Product Description

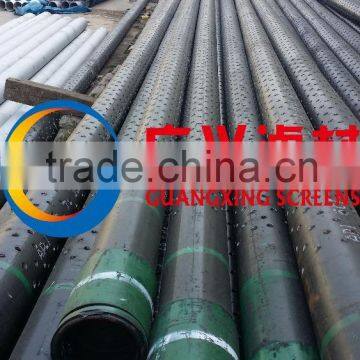

Round Hole Perforated Drilling Pipe
1.different diameter range
2.perforated casing pipe filter
petitive price
We can offer perforated pipe with stainless steel or carbon steel material,the max outer diameter is 630mm , the max wallthickness is 25mm,the length can be R3,the size of the round hotes is from 5mm to 25mm.Our new machine can drill any patter and any numbers holes as the customer request for water well .
The perforated casing pipe with cutting edge technology,which is manufactured with carbon steel or stainless steel,used for the application of oil reservation layer without much sand or for application of prewents the rock bits dropping off the well bore.
The overall strength of the drilling of the base pipe and is only 2 to 3% smaller than the standard casing or tubing. Therefore, it can withstand compression deformation class have sufficient overall strength. Even if the local deformation, compression portion of the gap can not be enlarged.
Material | Stainless steel or Low carbon steel |
Certifincatipn | ISO 9001:2008 |
OD | 100mm--180mm |
Wall thickness | 3-25mm |
Hole size | 5mm - 25mm |
hole design | staggered or non staggered |
Length | as client require |
End connection | plain beveled or threaded |
Surface treatment | Galvanized or painting |
Pipe Size | Holes per feet | Size of hole | Perforated Area per Feet |
3/4" | 78 | 3/16" | 2.15 |
1" | 54 | 5/16" | 4.14 |
1-1/4" | 66 | 5/16" | 5.06 |
1-1/2" | 78 | 5/16" | 5.98 |
2-1/16" | 78 | 5/16" | 5.98 |
2-3/8" | 90 | 3/8" | 9.94 |
2-7/8" | 102 | 3/8" | 11.26 |
3-1/2" | 126 | 3/8" | 13.91 |
4" | 138 | 3/8" | 15.24 |
4-1/2" | 150 | 3/8" | 16.56 |
5" | 162 | 3/8" | 17.88 |
5-1/2" | 174 | 3/8" | 19.21 |
6-5/8" | 186 | 3/8" | 20.53 |
7" | 222 | 3/8" | 24.51 |
9-5/8" | 294 | 3/8" | 32.46 |
The max diameter for us is 630mm. | |||
