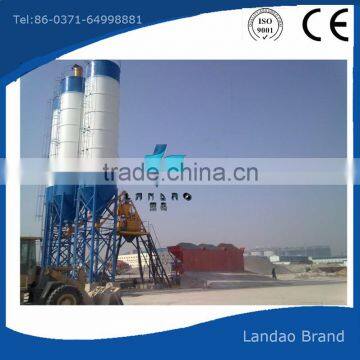

Greatly welcomed concrete ready mix plant by hopper lifting
- Qingdao Tianjin Shanghai
- T/T Credit Card
You May Like
-
Greatly welcomed small industrial automatic concrete mixing plant
-
Good quality commercial concrete batch plant price
-
Good quality HZS90 precast concrete batching plant supplier
-
Greatly welcomed hopper type small concrete batching plant for sale
-
Hot selling perfect wet mix concrete batching plant Ready mixed concrete batching plant
-
Best selling small ready mixed concrete mixing plant
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | Landao | |
| Model Number | HZS35 | Power(W) | 60kw | |
| Dimension(L*W*H) | 2500*2400*5700 | Weight | 15T | |
| Certification | ISO9001:2008 | Warranty | 2 Years | |
| After-sales Service Provided | Overseas service center available |
Product Description
concrete ready mix plant HZS35 is the ideal equipment to produce plastic concrete,
hard concrete and so on. The whole plant is composed of dosing system, mixing system, electric
control.
HZS35 concrete ready mix plant is widely applied in precast components, road, bridge,
irrigation works, dock and civil building projects.
1. concrete ready mix plant by hopper lifting adopts horizontal double shaft concrete mixer.
Thus will have a good mixing efficiency. And it is equipped with ladder and walking board,
it is convenient to maintain and inspect.
ntrol system of concrete ready mix plant HZS35 adopts new type electric weighting
system, which is worked together with computer, control module, digital indicator.
This design could make sure the accurate weighting.
3.Air control system uses good-quality air compressor, air cylinder and Pneumatic pipes.
4. Aggregates is sent to mixer by skip loader. Hopper lifting concrete ready mix plant
is equipped with self-locking elevating device, which avoid loader of sudden falling down.
5.discharging height could be chosen according to height of concrete pump and mixer truck.
Model | HZS25 | HZS35 | HZS60 | HZS90 | HZS120 | HZS150 |
capacity(m3/h) | 25 | 35 | 60 | 90 | 120 | 150 |
Discharge height(m) | 1.5-3.8 | 1.6-3.8 | 3.8 | 3.8 | 4 | 4 |
Operating period | 72 | 72 | 60 | 60 | 60 | 60 |
Mixer model | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 |
Dosing machine | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
Air compressor | 0.6-8 | 0.6-8 | 0.9-8 | 1.2-8 | 1.67-8 | 1.67-8 |
Aggregate weighing accuracy(%) | 0.6 | 0.6 | 0.9 | 1.2 | 1.67 | 1.67 |
Aggregate weighing accuracy(%) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Aggregate weighing accuracy(%) | 5.5 | 5.5 | 7.5 | 11 | 11 | 15 |
Aggregate weighing accuracy(%) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
cement weighing accuracy(%) | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
water weighing accuracy(%) | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
Additive weighing accuracy | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
Configuration of HZS35 skip type concrete mixing plant:
item | machine name | model | Unit | QTY | remarks | |
1 | Mixing machine | JS750-3.8m(discharging height) | set | 1 |
| |
The motor of mixer 30Kw | ||||||
2 | HPD1200 dosing machine | 2m3 storage bin | set | 1 | Double bins | |
750Kg weighing sensor | ||||||
motor:2.2KW | ||||||
3 | Measurement system | Cement | measuring hopper:600Kg max | set | 1 |
|
sensor:500Kg | ||||||
Pneumatic Butterfly ValveΦ300 | ||||||
Vibrator motor:0.37KW | ||||||
water | measuring hopper:250Kg max. | |||||
sensor:500Kg | ||||||
Water feed pump:3.0KW | ||||||
addictive | Water outlet pump:1.1KW | |||||
sensor:500Kg | ||||||
4 | Air system | Air compressor:W-0.8/1.0 | set | 1 |
| |
Air supply line | ||||||
accessory:1 | ||||||
5 | Control system | Automatic centralized control | set | 1 |
| |
centralized control | set | 1 | ||||
Control room(2×3×2.5) | room | 1 | ||||
6 | Screw conveyor | LX219-6m | piece | 1 | ||
