Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | LanDao | |
| Model Number | HZS50 | Power(W) | 100kw | |
| Dimension(L*W*H) | 12920mm*13000mm*17300mm | Weight | 30t | |
| Certification | ISO9001 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

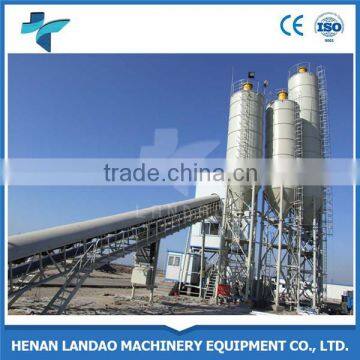

High Efficency HZS50 ready mix concrete batching plant
Product Description
HZS50 concrete mixing plant is a mini concrete mixer plant. It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.It constructs a brief and easy to move, for users often carry the project site, energetic performance of recycled strengths.Second, cost cheap, small simple concrete mixing station operation briefly, saving a lot of manpower and financial resources for engineering project.
HZS50 ready mix concrete batching plant is widely used large and medium scale building
works, road and bridge works and concrete products prefabrication plants, and is an ideal
equipment to produce commercial used concrete.
HZS50 ready mix concrete batching plant
1.With modular structure, the machine installation, relocation is very convenient, low equipment cost
2.The machine adopts JS dual-axial concrete mixer, mixing of good quality, high efficiency.
3.Aggregate the batching machine ingredients, accurate measurement, high production efficiency
4.Cement, water, liquid admixture ingredients adopt electronic scale metering, ingredients of high precision
5.The electrical system is reliable performance, convenient operation and use.
6.Belt type aggregate conveying system
Model | HZS25 | HZS35 | HZS50 (60) | HZS75 (90) | HZS120 | HZS180 (150) | HZS240 (200) | |
Productivity (m3/h) | 25 | 35 | 50 (60) | 75 (90) | 120 | 180 | 240 | |
Mixer capacity (m3) | 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | 4 | |
Batching system | PLD1200 | PLD1200 | PLD1600 | PLD2400 | PLD3200 | PLD4800 | PLD6400 | |
Discharging height (m) | 3.8 | 3.8 | 3.8 | 3.8 | 4 | 4 | 4 | |
Cycle time (s) | 60 | 60 | 60 | 60 | 60 | 60 (72) | 60 (72) | |
Weighing accuracy | Aggregate | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Cement | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Water | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Additive | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
HZS50 ready mix concrete batching plant consists of Mixing Building
Aggregate Batching System Weighing System Control System Screw Conveyor and Cement silo
The digital weighing system is with buffering device, auto compensation function and very high weighing accuracy. The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.
Our services of HZS50 ready mix concrete batching plant *We will send our technicians to install machines and debug machines.
*We will train workers for customers.
*We will follow customers’ usage and telephone follow-up.
*our guarantee period is 24 months except wearing parts. We provide spare parts at low price.
Zhengzhou Landao Machinery and Equipment Co.,ltd is established in 2003. Our factory is located in Zhengshang Road, Xingyang District, Zhengzhou City, Henan province. Our company Zhengzhou Landao is specialized in manufacturing and selling construction machines and engineering machines.
Our company mainly is engaged in concrete mixers, concrete mixing plant, stabilized soil mixing plant, concrete batching machine, cement silo, brick machine and road maintenance equipment.
