Home > Products > Pneumatic(air-assisted) Airless Paint Sprayer > DP-6C/9C Heavy Duty Pneumatic Airless Sprayer 65:1 / 33:1

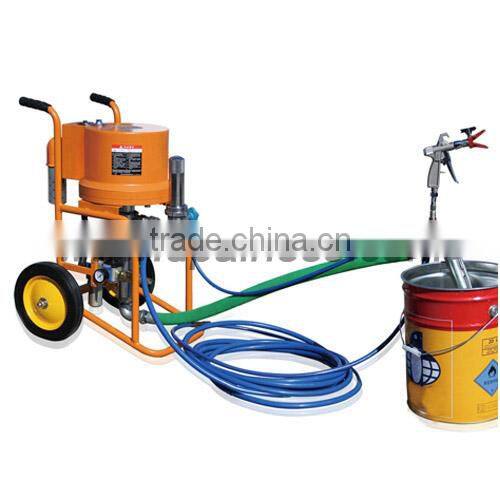

DP-6C/9C Heavy Duty Pneumatic Airless Sprayer 65:1 / 33:1
- NINGBO/SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | DINO-POWER | |
| Model Number | DP-6c/9c | Type | Other, airless paint sprayers | |
| Average Air Consumption | 250-2400 | |||
Product Description
Specifications
DP-6C/9C heavy duty pneumatic airless sprayer Idea for C-shaped steel, steel structure of large stations, ships, cars, etc

Compressed air-powered, reliable quality with very low failure rate;
New improved transducer with fast changing direction and less spraying pulse, so as to ensure the equal atomizing, and no stuck.
Low pressure pulsation, coating uniformity with better quality;
Long stroke, big paint delivery, low-frequency convert, not easy wearing parts ensure longer maintenance period and life-time.
New improved muffler for much lower noise;
Trolley type with big wheels, easy to move;
About 35 cycles per minute , improve longer lifetime for the fluid pump with less worn.
Environmental protection, high efficiency and economize paint
The pump can spray the fluid which mixed with grains less than 40 mesh.
(if the grain is bigger than 40mesh, it’s not good to spray it with the machine)

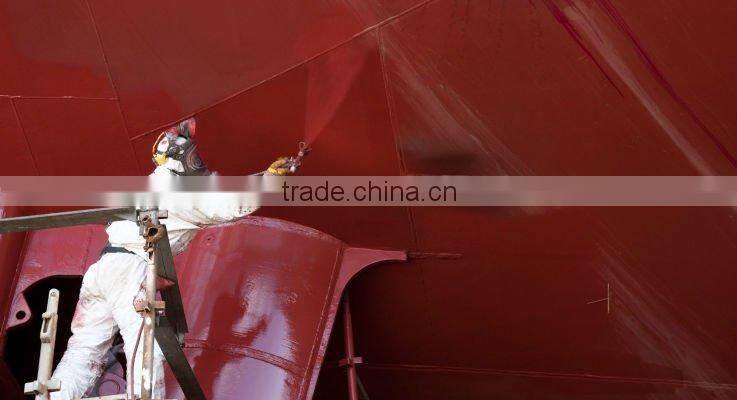

Idea for steel, C-shaped steel, steel structure of large stations, ships, cars, trains,trailers, machinery, floors, railway vehicles, tunnels, pipelines, storage tanks, tank, lifting equipment, bridges, locks, containers, aerospace paint.
Applications
DP-6C could spray thick heavy duty anti-corrosive paint, waterproofing coatings and other conventional oil-based paint.
DP-9C could spray inorganic zinc coatings, epoxy zinc-rich prime,enamel,fir-resistant coating, other water and oil based paint.
Technical data
| DP-6C | DP-9C | |
| Pressure ratio | 65:1 | 33:1 |
| Paint delivery | 12L/MIN | 24L/MIN |
| Inlet pressure | 0.4-0.7Mpa | 0.4-0.7Mpa |
| Air consumption | 250-2400L/MIN | 100-1000L/MIN |
| Cylinder diameter | 240mm | 240mm |
| Dimension | 520*430*670 | 460*430*920 |
| Net weight | 45KGS | 55KGS |
