China Best Seller KG-940A Hydraulic Drilling Rig
- T/T
You May Like
-
Kaishan KG940A Portable Crawler Blasting Drilling Rigs For Large Cooper Mine
-
Kaishan KG935S Surface DTH Drilling Rig
-
Kaishan KG935 High Pressure Horizontal Oil Directional Drill Rig
-
36m Strip Mining Self-pushing Integrated Ore Mining Drill Rig
-
KG910D Crawler Mounted Portable Hydraulic Shallow Rotary Drilling Rigs
-
Drill Rig KG915 For Cement Blue Stone Quarries Provides Higher Performance And Lower Fuel Consumption
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Zhejiang, China | |
| Brand Name | Kaishan | Model Number | KG940A | |
| Usage | Ore | Dimension(L*W*H) | 5400*2330*2020mm | |
| Weight | 6500kg | Certification | ISO CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The Usage
1. This series machine are used in a wide variety of Quarry ,Highway , Water and electricity , Surface mine and deep hole joint pipe drill work on the building project etc.
2. This series drilling rigs with air compressor,hammer together work , To blasting horizontal hole ,vertical holes ,inclines holes .
Technical Parameter
Rock rigidity | F=6-20 |
Diameter of hole | 105-165mm |
Optium drilling depth | 25m |
Working pressure | 10-24bar |
Air consumption | >=16 m³/min |
Rotation speed | 0-100 rpm |
Torque | 2800N.m |
Lift power | 22KN |
Dimension | 5400*2330*2020mm |
Weight | 6500KG |
Drive system | YC4D80-T10 Engine |
Standard Componets (option) | |
1.hammer | HD45A(HD45S) |
2.Rod | Φ76*3000mm |
3.Bit | Φ85,Φ90,Φ105,Φ115 |
4.Air hose | Φ38*2P*20 |
Recommended compressor | LGCY-18/17;LGCY-19.5/19;LGCY-22/20 |
Capacity | 18 (635CFM) |
Work pressure(Mpa) | 1.7 (247.5PSI) |
Diesel engine(hp | Cummins,6cta8.3-C260(194kw) |
Weight | 3500KG |
Dimension(mm) | 3600*1900*2200 |
Matched Air Compressor
LGCY-19.5/19 Diesel Mobile Screw DTH Air Compressor
1.Air pressure: 1.9Mpa
2.Air displacement: 19.5m3/min
3.Power: 132KW

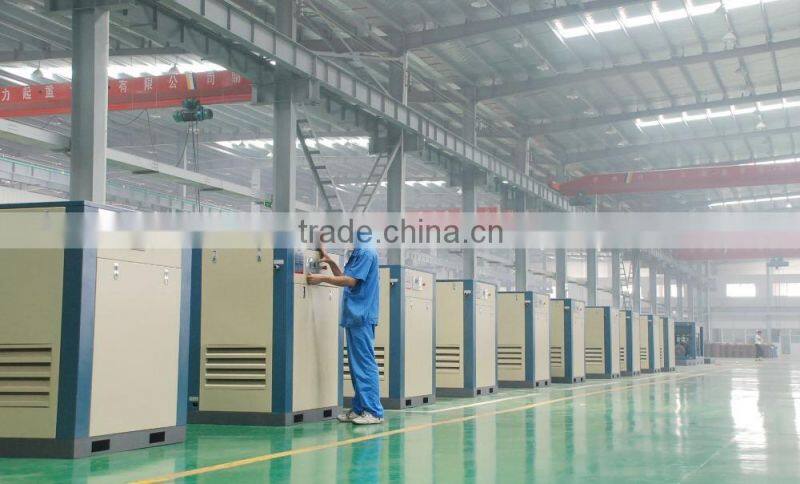

About Our Company:
1. Kaishan group Co., Ltd was founded in 1956.
2. There are 31 members of the company, the company's total assets are 6 billion yuan, more
than 6,000 employees and sales revenue is 4.5 billion yuan in 2011
3. Kaishan group Co., Ltd is the world's largest drilling machine manufacturing enterprise
the largest in Asia, the world's third air compressor manufacturing enterprises, and the largest
drilling equipment manufacturers.
4. Good Service, competitive price, high quality, fast shipping and perfect after sale service.
Welcome to visit our factory and would like to start the cooperation with you in the future
