KT7 Open-air DTH Crawler Drilling Rig For Stonework
- Ningbo
- T/T
You May Like
-
KT7 Drilling Rig For Granite Or Open Pit Mining With Self Contained Air Compressor
-
KT7 Integrated Diesel Powered DTH Quarry Crawler Drill Rig
-
Bauma China Kaishan KT8 Integrated Portable Auger Drilling Rig
-
KT8 Drilling Rig With Dust Collector For Open Cast Mining Or Stone Quarrying For Construction
-
KT8 High Pressure Rotary Integral DTH Drilling Rig
-
Kaishan Brand KT8 25m Depth Integrated Open-Air Crawler Drilling Rig
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Zhejiang, China | |
| Brand Name | Kaishan | Model Number | KT7 | |
| Usage | Ore | Voltage | Customized | |
| Power(W) | 190KW | Dimension(L*W*H) | 8000*2260*2800mm | |
| Weight | 9500kg | Certification | ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
KT7 Open-air DTH Crawler Drilling Rig For Stonework
"Kaishan" brand KT7 integral type high wind pressure open-air crawler drilling rig is integrated the DTH drill system and screw air compressor system of the advanced drilling equipment, a six-cylinder diesel engine provide power for the two systems, compact structure, well type, easy to move. Drill car equipped with core intellectual products of single stage high compressed air pressure screw head, applied the international leading Shang Shi Y line, large flow(13m³/min),high pressure(1.7Mpa), provide strong power for high wind pressure pneumatic shock, drilling speed than the high air pressure drill car faster in 20% to 50%.

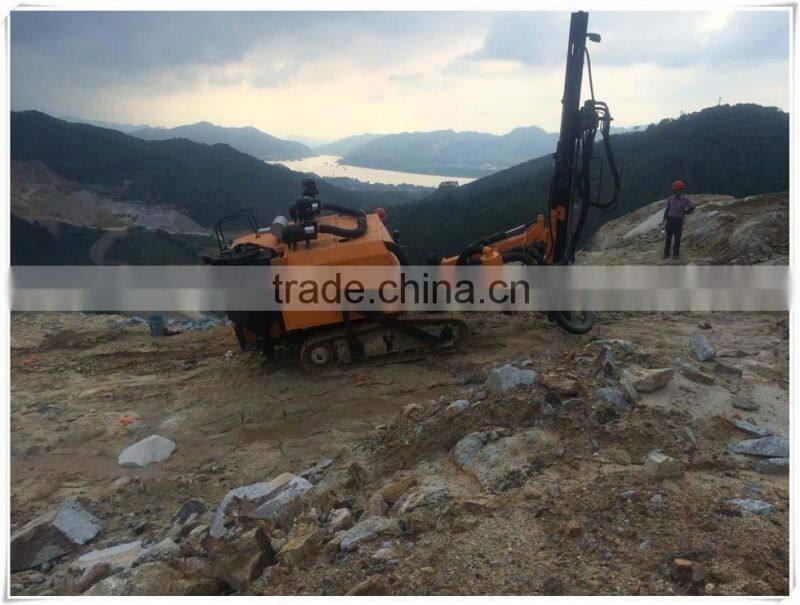

"Kaishan" brand KT7 integral type high wind pressure open-air crawler drilling rig mainly used for stonework and open-air mine drilling work.
Advantages
1.Has a strong climbing ability and adaptive to the rough pavement.
2.Adapt to a wide range, can be furnished with various types of DTH impactor, can drill different diameter and different depth in variety of positions and angles.

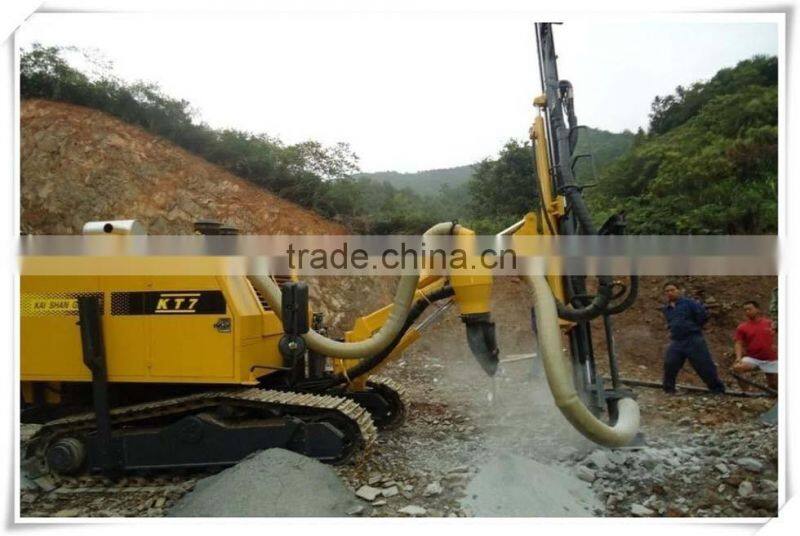

3.Also can be furnished with dry or wet dust collector when working, effectively reduce dust pollution to the environment, and protect the worker.
4.Anti-jamming system, safety operation.
5.ISO9001:2008
6.ISO14000
Features
1.Single section boom system.
2.Toe hole drilling capability .
3.Hydraulic operated rotary head.
4.Yuchai turbo charged diesel engines.
5.Break-out table with pressure regulating kit .
6.Crawler type undercarriage with track oscillation system.
7.Hydraulic cylinder operated feed system mounted in an steel feed beam.

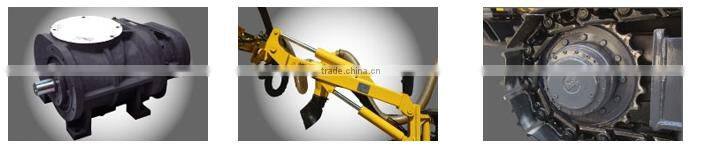

National initiative single stage flexible drill arm system Security and stability of the
compressor high pressure screw host walking mechanism

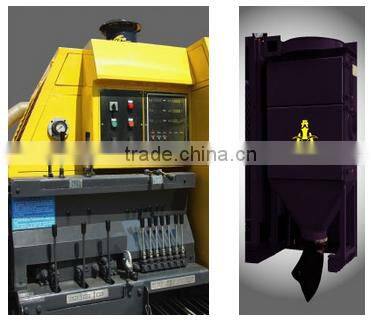

Centralized operation platform Advanced dust collection device
KT7 Open-air DTH Downhole Drill Rig Mainly Used In The Project Of Stonework And The Open-pit Mine Drilling technical parameters: | |||
Rock hardness | f=6-20 | Rotatingtorque(N.m) | 1900 |
Drilling diameter(mm) | 90-105 | Maximumlifting power(N) | 25000 |
Economic drill depth(m) | 30 | Carriage lifting angle | up 28° down 42° |
Travel speed(Km/h) | 0-2.5 | Carriage elevation angle | 129° |
Gradeability | 30° | Carriage swing angle | right 38° left 35° |
Ground clearance(mm) | 380 | Carriage leveling angle | right 4° ~89° |
Machine Power(kW) | 180 | Drill arm swing angle | right 39° left 60° |
Diesel | Yuchai YC6A | Frame leveling angle | up 10° down 9° |
Screw capacity(m³/min) | 13 | Push length(mm) | 3000 |
Screwworking Pressure(Mpa) | 1.7 | Compensation length(mm) | 900 |
Dimension (mm) | 8000×2300×2800 | Hammer | HD35A (adapt HD45S) |
Weight(Kg) | 9500 | Drill rod | Φ64×3000mm |
Rotating Speed(r/min) | 0-120 | Catching dust | Hydraulic cyclone layer flow |
