Product Details
| Place of Origin | Zhejiang, China | Brand Name | KAISHAN | |
| Model Number | YO18 | Type | Hammer Plate | |
| Machine Type | Drilling Tool | Certification | Other | |
| Material | Other | Processing Type | Casting | |
| Use | Ore Mining |
Product Description

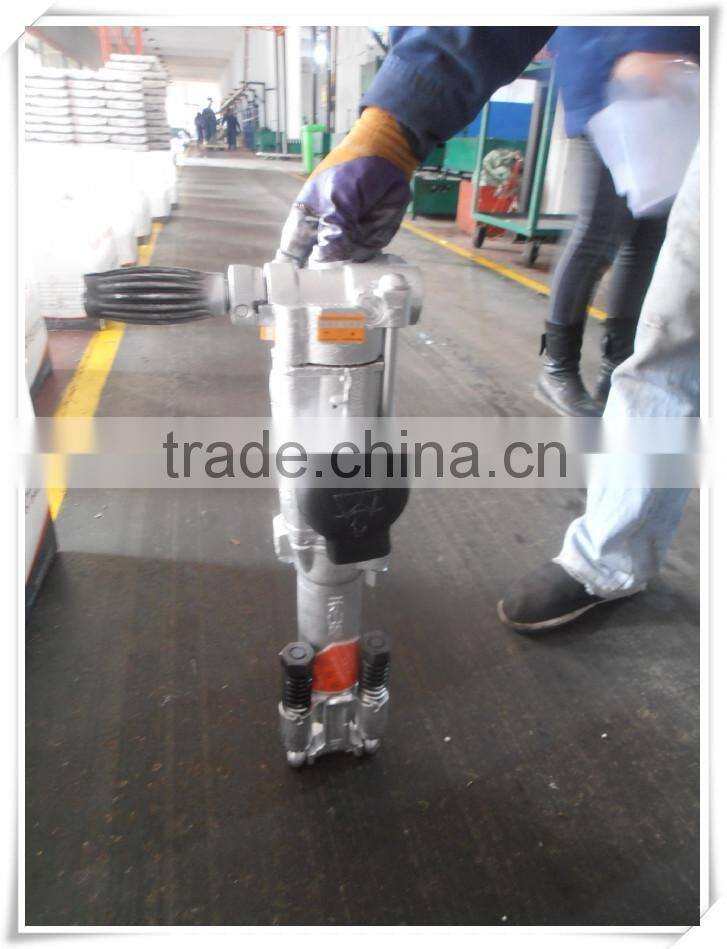

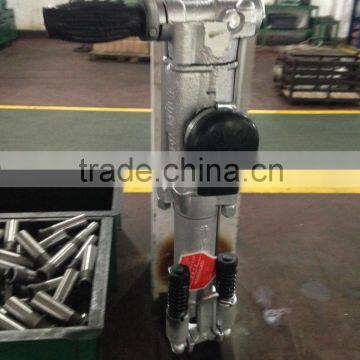

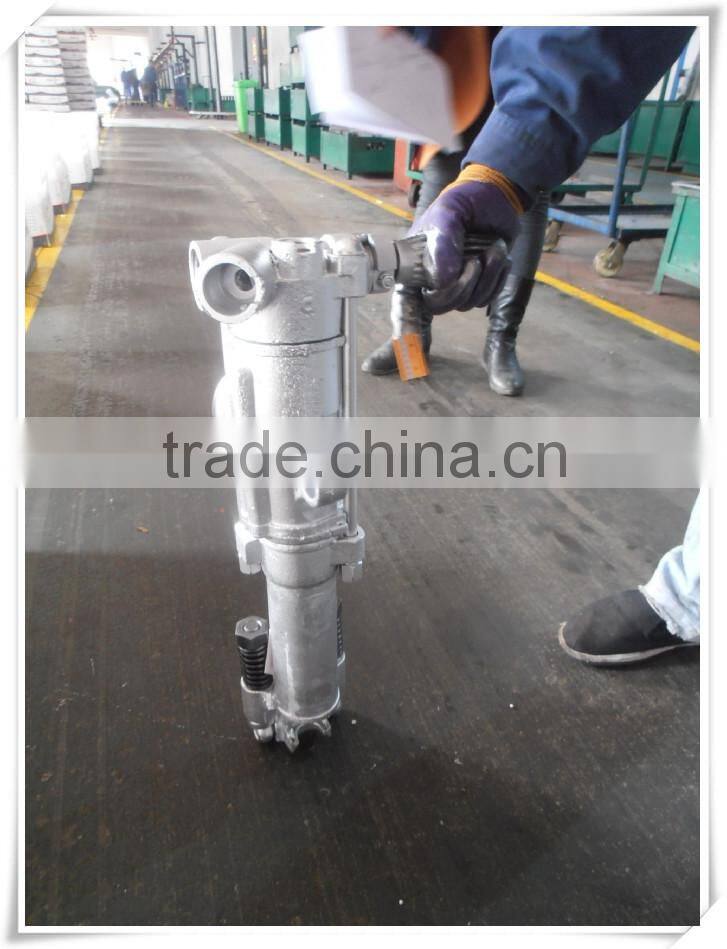

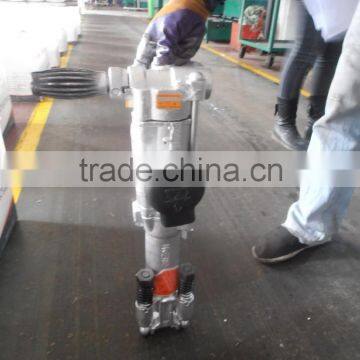

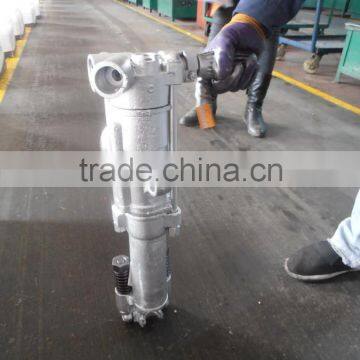

YO18 New Desigh Electric Rock Drill Tool With ISO and QAC Certificate/Hand Hold Rock Drill
Kaishan brand pneumatic products:
1.Safe and easy operate
2.High efficiency and reliability
3.Best product quality control from cutting edge forging process to product completion
4.Durable with minimal maintenance
Hand Hold Rock Drill(YO18) | |
Total Length(mm) | 550 |
Weight(Kg) | 18 |
Cylinder Diameter(mm) | 58 |
Piston Stroke(mm) | 45 |
Air Pipe Inner Diameter(mm) | 19 |
Working Pressure(Mpa) | 0.35-0.63 |
Impact Energy (J) | ≥22 |
Impact Frequency(Hz) | ≥32 |
Air Consumption(L/s) | ≤20 |
Water Pipe Inner Diameter(mm) | 8 |
Rock Drill Hole Dia(mm) | 34~42 |
Rock Drill Hole Depth(m) | 5 |
Shank dimensions | 22×108mm |
Water pressure | 3.9-5.9×105Pa |
Average speed (at 3.9×105Pa ) | 80mm |
Torque(at4.9×105Pa ) | 7.85N / m |
Average speed(at4.9×105Pa ) | 120mm |
Model | Weight | Length | Cylnder Dia*Stroke | pressure | Impact Energy | Impact Frequency | Air Consumption |
kg | mm | mm | MPa | J | HZ | I/s | |
YO18 | 18 | 550 | 58×45 | 0.4-0.63 | ≥22 | ≥32 | ≤20 |
YO18PA | 18 | 550 | 58x45 | 0.4-0.63 | ≥23 | ≥34 | ≤25 |
Y19A | 19 | 600 | 65×54 | 0.4-0.63 | ≥28 | ≥35 | ≤43 |
YO20 | 20 | 561 | 63×55 | 0.4-0.63 | ≥26 | ≥33 | ≤33 |
YT23 | 24 | 628 | 76×60 | 0.4-0.63 | ≥65 | ≥37 | ≤78 |
YT24 | 24 | 678 | 70×70 | 0.4-0.63 | ≥65 | ≥31 | ≤67 |
YT28 | 26 | 661 | 60 ×60 | 0.4-0.63 | ≥70 | ≥37 | ≤81 |
