Home > Products > Pneumatic tools > YT24 Gold Mining Equipment YT24 Hammer Drill
YT24 Gold Mining Equipment YT24 Hammer Drill
US$ 160 - 170
/ Piece
1 Piece(Min. Order)
- Ningbo
- T/T Credit Card
You May Like
-
YT24 Kaishan Manufacturing China Pneumatic Drilling Rigs For Sale
-
YO18 Kaishan High Efficiency Hand-hold Hammer Drill
-
YT24 The Newest Hot Sale Kaishan Portable Hand Held Jack Hammer
-
YT24 Efficent And Portable Air Compressor Rock Drill Jack Hammer
-
YO18 Hand Hold Or Air Leg Compressor Jack Hammer/Mini Jack Hammer/Pneumatic Jack Hammer
-
YO18 New Desigh Electric Rock Drill Tool With ISO and QAC Certificate/Hand Hold Rock Drill
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KAISHAN | |
| Model Number | YT24 | Type | Hammer Plate | |
| Machine Type | Drilling Tool | Certification | Other | |
| Material | Other | Processing Type | Casting | |
| Use | Ore Mining |
Product Description

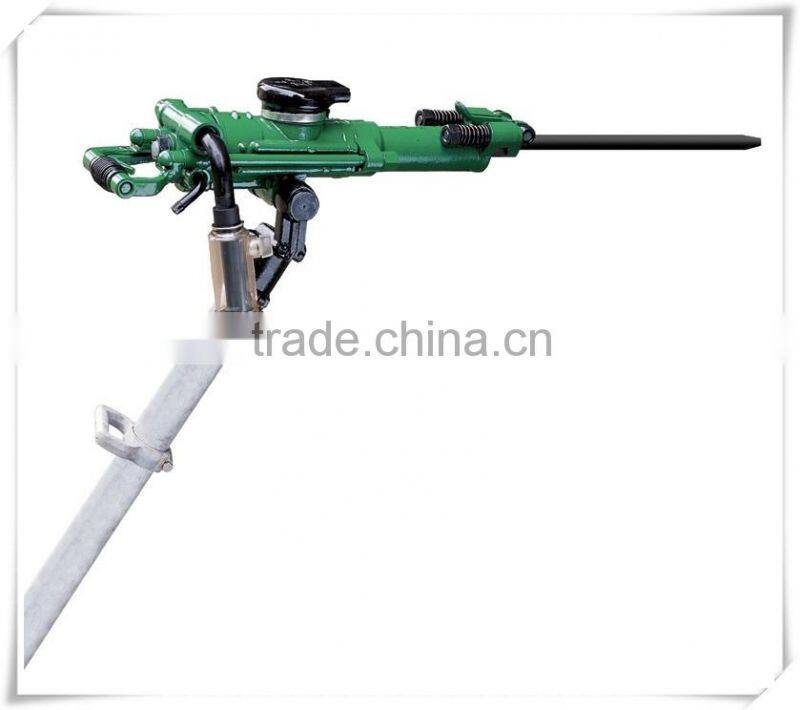

YT24 Gold Mining Equipment YT24 Hammer Drill
Product Description
Kaishan brand pneumatic products:
1.Safe and easy operate
2.High efficiency and reliability
3.Best product quality control from cutting edge forging process to product completion
4.Durable with minimal maintenance
Technical Parameters
Hand Hold Rock Drill(YT24) | |
Total Length(mm) | 678 |
Weight(Kg) | 24 |
Cylinder Diameter(mm) | 70 |
Piston Stroke(mm) | 70 |
Air Pipe Inner Diameter(mm) | 25 |
Working Pressure(Mpa) | 0.35-0.63 |
Impact Energy (J) | ≥65 |
Impact Frequency(Hz) | ≥31 |
Air Consumption(L/s) | ≤67 |
Water Pipe Inner Diameter(mm) | 13 |
Rock Drill Hole Dia(mm) | 34~42 |
Rock Drill Hole Depth(m) | 5 |
YT24 Pneumatic Tools Mining Air Rock Drill With Air Leg Matched air compressor:

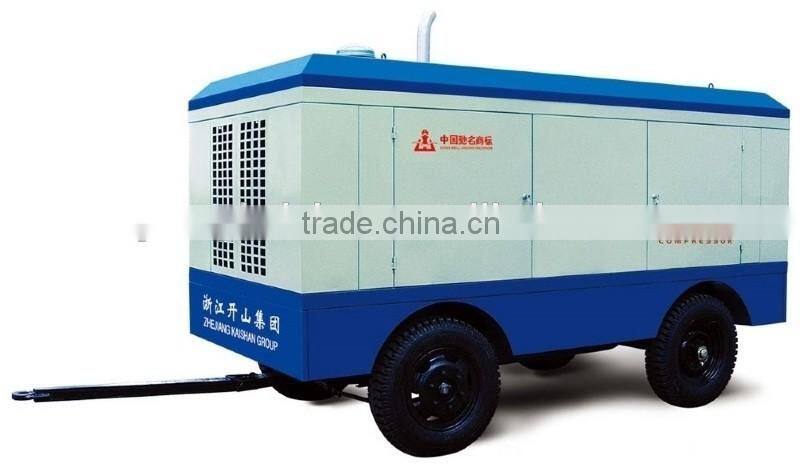

CVFY-6/7 Diesel portable piston air compressor
Working pressure:0.7MPa
Capacity: 6m³/min

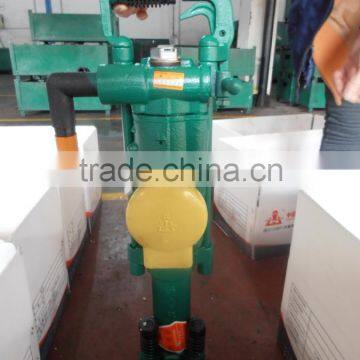

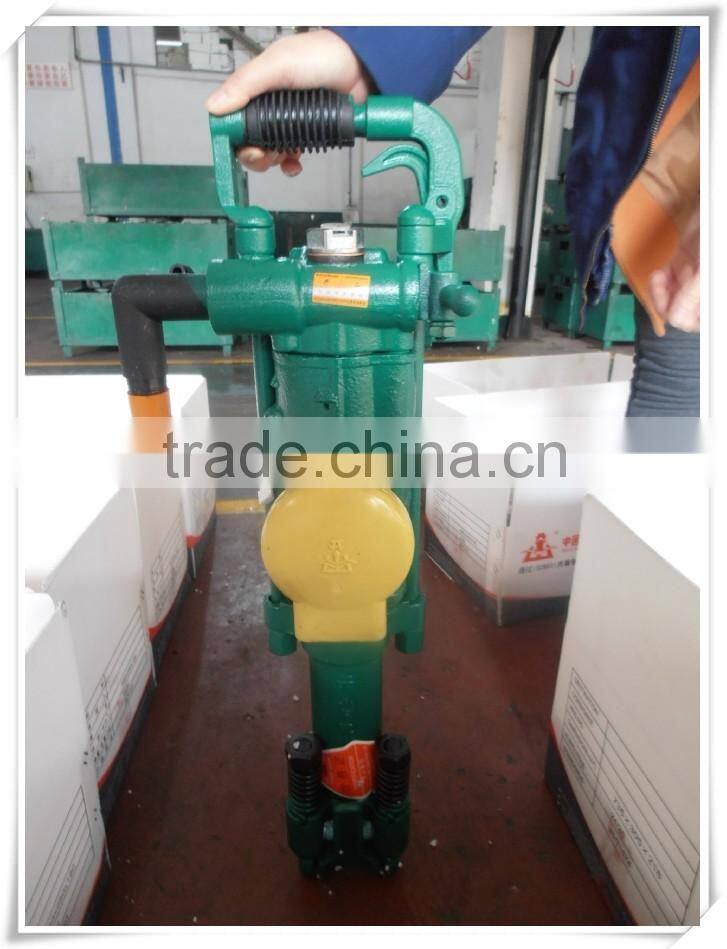

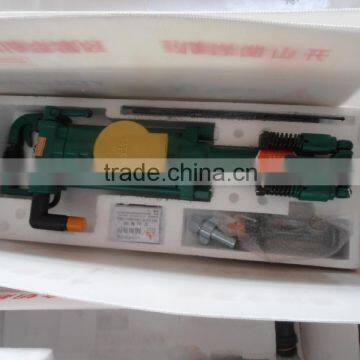

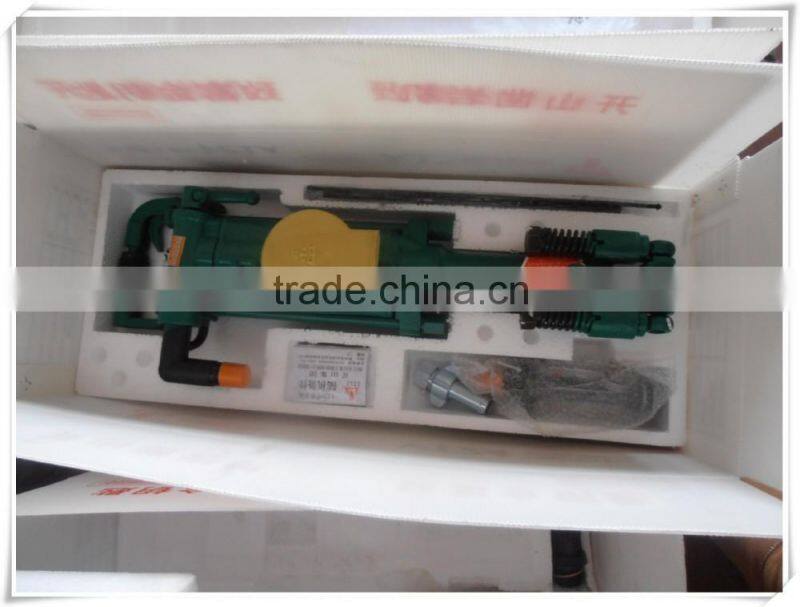

Detailed Images
Company Information
Technology
Certifications
Exhibitions
Contact Us
- Zhejiang Kaishi Machinery Co., Ltd.
- Contact nameJoye cheng Chat Now
- Phone0086-570-3052486
- AddressNo.67 Jianxin Road,Xinxin Street,Kecheng District, Quzhou, Zhejiang
