Home > Products > Teka Turbine Pan Type Mixers THZ > Teka Construction Mixer 1cubic Meter Model THZ1500
Teka Construction Mixer 1cubic Meter Model THZ1500
US$ 1 - 1,000,000
/ Unit
1 Unit(Min. Order)
- Shanghai
- T/T
You May Like
-
Teka Pan Mixer 1cubic Meter
-
1m3/2400kg/1500L Teka China Continuous Concrete Mixer Cement Mixer
-
1.5 Cubic Meter Germany Teka Pan Electric Motor Concrete Mixer With Two Discharge Gate Model THZ2250
-
1.25 Cubic Meter Germany Teka Customized Pan Concrete Mixer Gearbox With Protection Cover of Discharge Gate
-
Teka Turbine Concret Pan Mixer
-
2.5CBM Germany Teka Pan Type Bucket Concrete Mixer Cement Mixer THZ3750
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Teka | Model Number | THZ1500 | |
| Motor Power | 37KW | Mixing Power | 37KW | |
| Charging Capacity | 2400KG / 1500L | Reclaiming capacity | 1.0cbm | |
| Speed of Mixing Drum | 20/min | Water Supply Mode | automatic | |
| Working Cycle Period | 50/hour | Discharge Way | Hydraulic | |
| Outline Dimension | 2520mm*2520mm*1530mm | After-sales Service Provided | Overseas service center available |
Product Description
Product Description

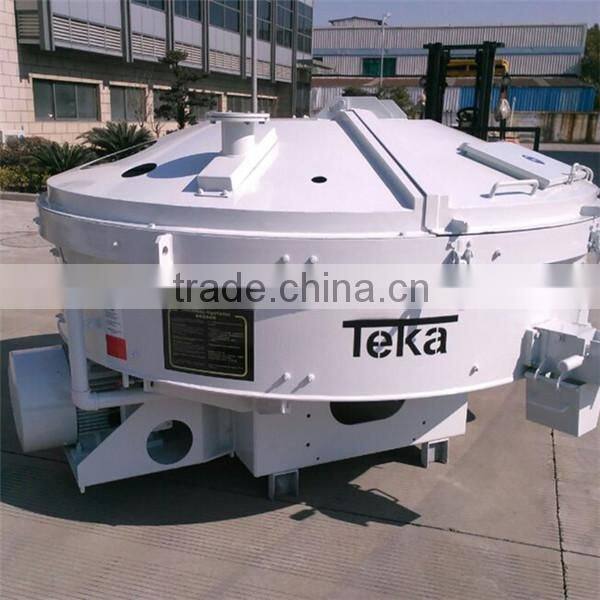

Teka construction mixer 1cubic meter model THZ1500
| Model No. | THZ1500 |
| Filling quantity mixer | 1500 Liters |
| Filling quantity mixer | 2400 Kgs |
| Compacted concrete output per cycle | 1M3 |
| Drive power mixer | 37 KW |
| Speed of rotor | 20 Upm/rpm |
| Weight of mixer | 4200 Kgs |
| Filling capacity of skip hoist bucket | 2200 Kgs |
| Speed of Skip hoist bucket | 0.4 M/Sec |
| Weight of bucket | 2000 Kgs |
| Dimensions | 2520mm*2520mm*1530mm |
Standard configuration and nonstandard configuration
| Configuration details | THZ | TPZ | |
| Standard configuration(Other details, pls. see quotation sheet) | Discharge gate | 1 Set | 1 Set |
| Stop block of discharge gate | 2 PCS(Full open/Full close) | 2 PCS(Full open/Full close) | |
| Mixer cover | 1/2 open | 1Set 60°full open pneumatic gate | |
| Safety device on mixer cover | 1Set | 1Set | |
| Wear-resisting scaleboard at bottom | ST60/65mm/10mm | ST60/65mm/10mm | |
| Outward wear resistant lining board | ST60/65mm/10mm | ST60/65mm/10mm | |
| Inside wear resistant lining board | ST60/65mm/10mm | No | |
| Bottom mixing blade | W3/W4 | W3/W4 | |
| Outward scraper blade | W3/W4 | W3/W4 | |
| Inside scraper blade | W3/W4 | No | |
| Electrical connector | 1 PC | 1 PC | |
| Hand winch | 1Set | No | |
| Tool bag | 1Set | 1Set | |
| Oil filter | 1PC | No | |
| Operation Manual | 1Copy | 1Copy | |
| Spare parts list | 1Copy | 1Copy | |
| Viewport | 1PC | 1PC | |
| Centralization lubrication | No(Can add) | 1Set | |
| Independent hydraulic station | No | 1Set | |
| Feedwater device | 1Set | 1Set | |
| Nonstandard configuration(Can add or replace) | Second discharge gate | Yes | Yes |
| Third discharge gate | Yes | Yes | |
| Forth discharge gate | THZ1125 and smaller mixer | Yes | |
| Second review gate | Yes(No less than 60°) | Yes | |
| Broken bag machine | Yes | Yes | |
| Hydraulic couplers | Yes | Yes | |
| Into size for aggregate, powder , additive etc. | Yes | Yes | |
| Docking chute of discharge gate | Yes | Yes | |
| Full sealed protection cover of discharge gate | Yes | Yes | |
| Stop block of middle discharge gate | Yes | Yes | |
| Dust collection device | Yes(Airbag) | Yes(Airbag) | |
| High pressure cleaning device | Yes | Yes | |
| Water metering device | Yes | Yes | |
| Steam-heating unit | Yes | No | |
| Scraper blade of drive disc | Yes | No | |
| Humidity detectors | Yes(can supply/no commissioning) | Yes(can supply/no commissioning) | |
| Temperature sensor | Yes(can supply/no commissioning) | Yes(can supply/no commissioning) | |
| Bottom wear resistant lining board(Optional) | Harddox/Clad plate/Alloy slab/15mm | Harddox/Clad plate/Alloy slab/15mm | |
| Bottom mixing blade(Optional) | Nonmetal/Hard alloy | Nonmetal/Hard alloy | |
| Skip hoist(Standard 60°/Rail extension in 3 meters) | Yes | Yes | |
| Skip hoist(Nonstandard 70°/Rail extension more than 3 meters) | Yes | Yes | |
| Manual control box | Yes | Yes | |

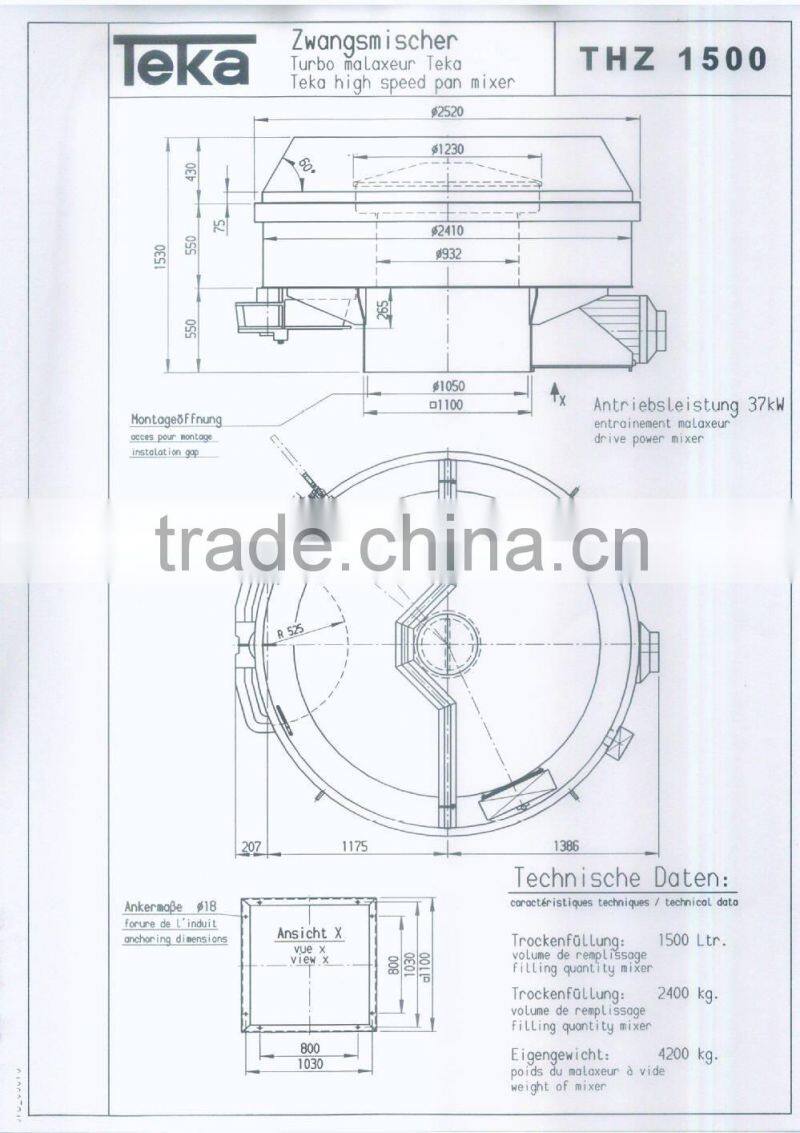

Outline Dimension
Products advantages:
- Suitable for a wide range of mixing applications
- Large installed base of thousands of machines worldwide
- Exceptional reliability
- Perfect for retrofitting thanks to compact size
- Intelligent component layout simplifies maintenance
Application fields:

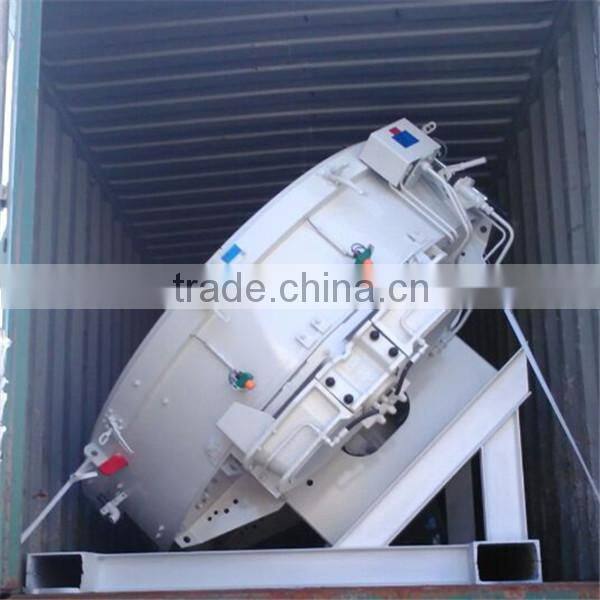

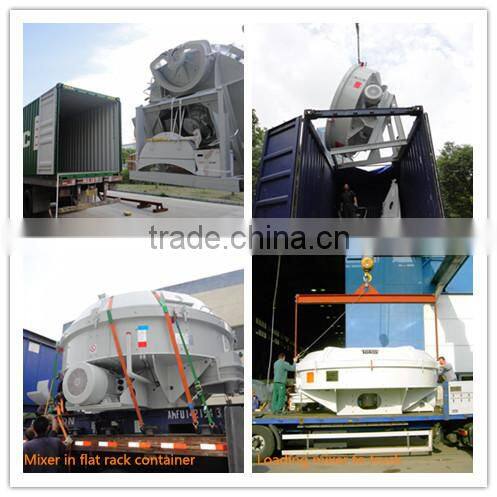

Packaging & Shipping
Company Information

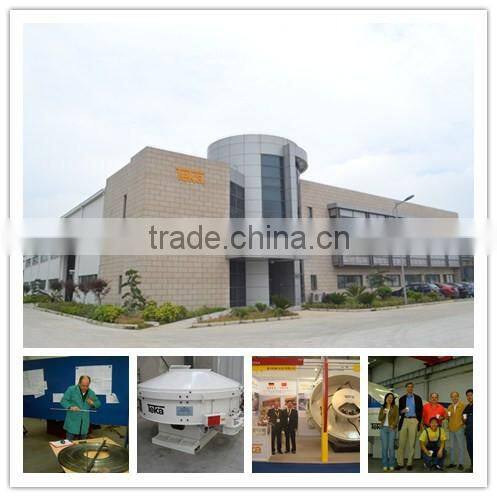

Teka Machinery (Taicang) Co., Ltid. is a branch company of Teka Germany. We started from 2005, It is about 10 years already since we came to China.
Established in 1961, TEKA Maschinenbau GmbH has become one of the leading manufacturers of high-performance mixers and mixing plants for the building-materials industry. With an installed base of more than 18,000 mixers and thousands of mixing plants, it’s clear that Teka products are well accepted and highly regarded – and versatile enough for many different applications.
Interested in our products, contact us for quote now!
Contact Us
- Teka Machinery (Taicang) Co., Ltd.
- Contact nameLucy An Chat Now
- Phone86-512-53576251
- AddressNo.8 North Loujiang Road, Taicang City, Jiangsu Province, China, Suzhou, Jiangsu
