Home > Products > Industrial Motor > TAYGUEI Taiwan customer first rotor stator manufacturer small ac motor
TAYGUEI Taiwan customer first rotor stator manufacturer small ac motor
- Taichung Port
- T/T
You May Like
Product Details
| Brand Name | TG | Model Number | Industriy type 019 | |
| Type | Asynchronous Motor | Frequency | 50/60 HZ | |
| Output Power | 0.74-3.5KW | Protect Feature | Explosion-proof | |
| Phase | Single-phase | Certification | CE | |
| AC Voltage | 115/120 V | Place of Origin | Taiwan, China | |
| Efficiency | Other, IE 3, As you request |
Product Description
| TAYGUEI Taiwan customer first rotor stator manufacturer small ac motor |
A. Use interlock technology.
B. Made in Taiwan
C. Customize any dimension
D. All steel are from Chine Steel
| Stator(mm) | Slot | Rotor(mm) | Slot | width | shaft hole |
| 190 | 36T | 140 | 44T/28T | 184W | 32,35,38,42 |
| 180 | 36T | 110 | 44T/28T | 168W | 22,25,30,38 |
| 160 | 36T | 100 | 44T | 157W | 20,25,27,32 |
| 160 | 36T | 96 | 44T | 149W | 20,22,25,27 |
| 160 | 36T | 95 | 44T/28T | 158W | 20,22,25,27,31.85 |
| 160 | 32T | 95 | 44T | 145W | 20,25,31.85 |
| 160 | 24T | 88 | 18T | 159W | 20,25,27,28,32 |
| 160 | 24T | 80 | 16T/34T | 149W | 15,17,20,22,25 |
| 140 | 36T | 85 | 44T/28T | 135W | 20,22 |
| 140 | 36T | 85 | 44T | 130W | 15.7,15,17,20,22,30 |
| 140 | 32T | 85 | 44T | 130W | 17,20,22 |
| 140 | 36T | 80 | 44T | 135W | 15,17,20,22,30 |
| 140 | 24T | 70 | 34T | 130W | 20,22,25,27 |
| 125 | 36T | 75 | 44T | 123W | 16,18,20,22 |
| 125 | 32T | 75 | 44T | 120W | 18,20 |
| 121.7 | 4T | 67.3 | 44T | 124W | 12.7 |
| 114 | 24T | 56 | 28T | 114W | 12,17,20 |
| 114 | 24T | 55 | 29T | 112.5W | |
| 111 | 24T | 67 | 44T | 104W | 10,12,12.7,16 |
| 110 | 36T | 70 | 44T | 107W | 14,16,18 |
| 110 | 24T | 65 | 34T | 100W | 10,12,14,16 |
| 108 | 24T | 70 | 34T | 108W | 12,12.7 |
| 100 | 24T | 53 | 22T | 95W | 8,10,12,15 |
| 90 | 18T | 48 | 23T | 89.5W | 11.5,12.7 |
| 90 | 18T | 48 | 23T | 82W | 8,10 |
| 90 | 24T | 47 | 18T | 88W | 8.03 , 11.6, 12, 14,16 |
| 82 | 16T | 44/46 | 22T | 75W | 8,10 |
| 75 | 16T | 44/46 | 22T | 75W | 8,10 |
| 66.4 | 16T | 46 | 22T | 75W | 8,10 |
Paper box or wooden box
COMPANY INTRODUCTION

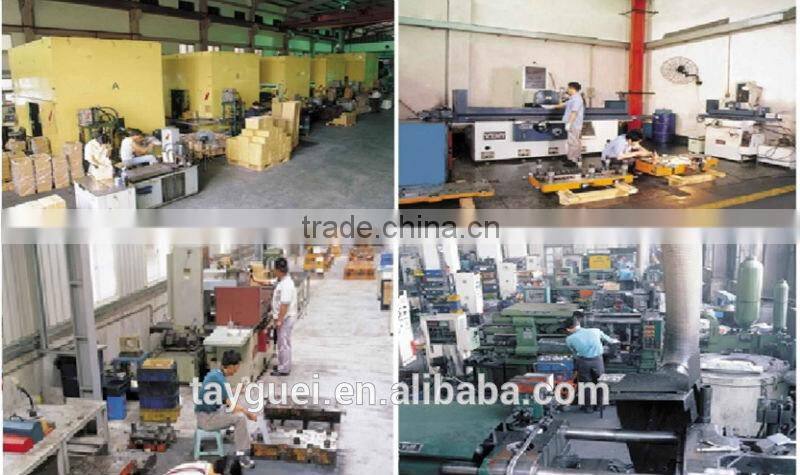

Tay Guei Industry Co., Ltd. was established in 1984. For thirty years, Tay Guei concentrates in silicon steel lamination, and develops various dimensions of rotors and stators. At the beginning, Tay Guei was a small factory located in Xitun District, Taichung, Taiwan. Few years later, we moved to Taichung Industry Park, and we set up another factory, Chuan Den Precision Co., Ltd., in Dongguan, China in 1990. Now, we have a 5,500 square meter plant in Taiwan, and a 30,000 square meter factory in China. The annual production exceeds 60,000 tons. In motor industry, Tay Guei has been committed to the most professional operation of silicon steel sheet stamping and fan motor producing.
Our material is offered directly by China Steel Corporation Taiwan, which is well known as its high quality. We build strong partnership with our outsourcing partners, the aluminum injection factories. We believe that cost-down is not the strategy we should take, but reliable quality and considerable service. Therefore, we improved our press lamination process in 2011. This action made our products conform to the standard of high efficiency motors, e.g. IEC, IE2, and IE3 of NEMA. We honor our promise to our customers that we will meet the requirement of high-efficiency era.
Our customers are multinational, including Italy, Pakistan, and Thailand. Our products are used in fan motor, water pump, and generator etc. In other words, we not only provide English-friendly service, but also competitive price that meets customers’ need. Especially for oversea trading, we implement strict quality control that always measures up our clients’ expectation. We, Tay Guei, expect us to be a sustainable operation.
Contact Us
- TAY GUEI INDUSTRY CO., LTD.
- Contact nameJerry Chen Chat Now
- Phone886-4-23552058
- AddressNo. 12-1
