Home > Products > Field-Effect Transistor > IRFZ44N Mosfet TO-220M 50A 50V Field-Effect Transistor
IRFZ44N Mosfet TO-220M 50A 50V Field-Effect Transistor
US$ 0.01 - 1
/ Piece
1000 Pieces(Min. Order)
- Shanghai shenzhen or follow customer demand
- T/T L/C D/P D/A Credit Card
You May Like
-
IRF3205 Mosfet TO-220M 55V 110A Field-Effect Transistor
-
IRFP064M Mosfet TO-247 55V 110A Field-Effect Transistor
-
65N06 Mosfet TO-220M 60V 65A Field-Effect Transistor
-
85N06 Mosfet TO-220M 60V 85A Field-Effect Transistor
-
120N06 Mosfet TO-220M 60V 120A Field-Effect Transistor
-
TH040N07TM Mosfet TO-220M 70V 40A Field-Effect Transistor
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HC | |
| Model Number | IRFZ44N | Type | Field-Effect Transistor | |
| Package Type | Throught Hole |

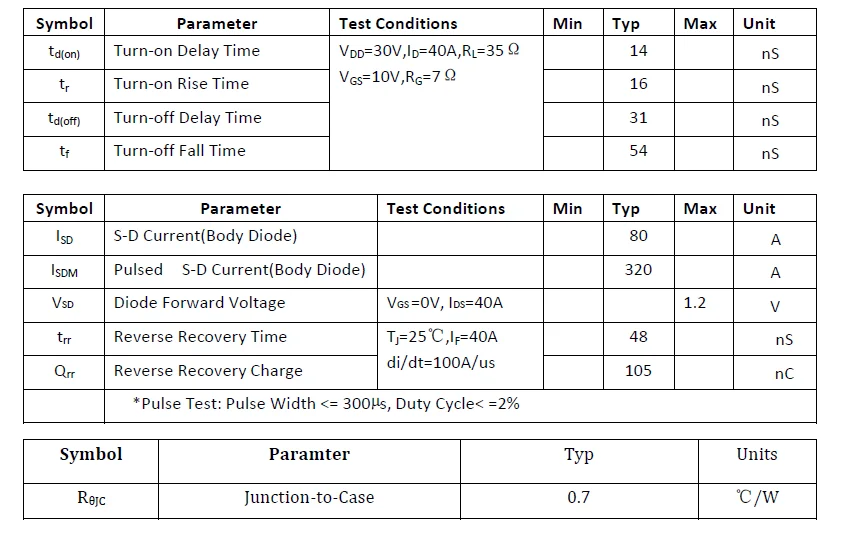

Product Description
Product Description
The TH080N08TM uses advanced 8 inch trench technology to achieve extremely low Static Drain-to-Source on-Resistance RDS(on). It can be used in a wide variety of applications.

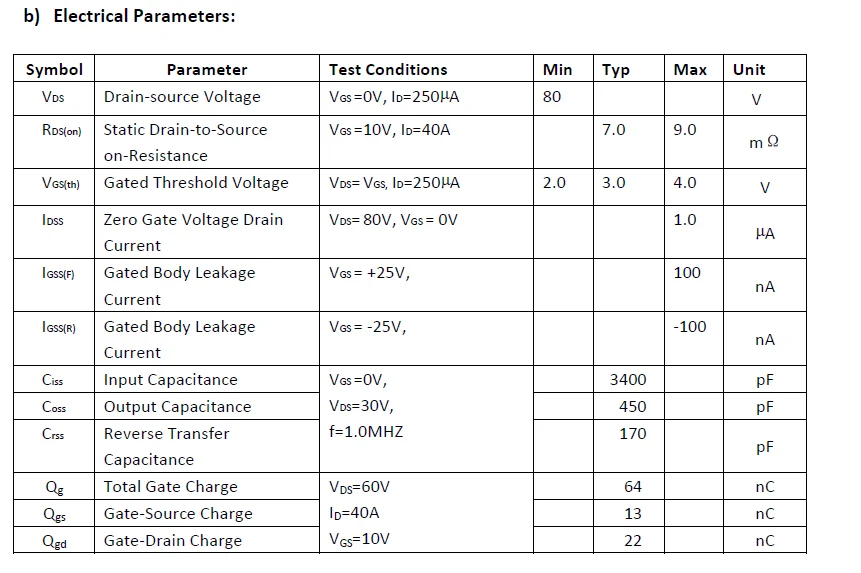

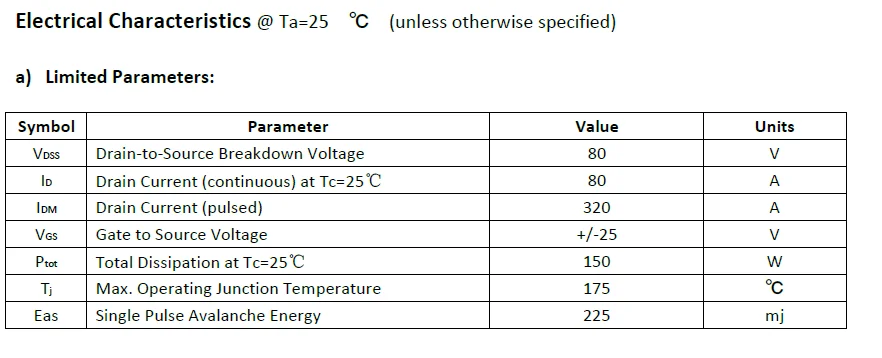

General Features
VDS=80V,ID=80A; Rdson≦9.0mΩ @VGS=10V (Typ:7.0mΩ)
Low ON Resistance(Rdson≦9.0mΩ)
Low Reverse transfer capacitances
100% Single Pulse avalanche energy Test
Related Products
* Below are part of general products provided by Thunder
* Package type could be adjusted according to customer needs* New product (not in below list) could be developed according to customer needs
Our Company
Thunder Microeletronics was establised in 1995, specialized in power semiconductor parts production for over 20 years. Factory Area is over 7000m², incluse 1000m² purification workshop (10T grade) . Our main products are Schottky Diodes, Fast and Ultra Fast Recovery Diode, Mosfet (Field-Effort diode), Transistors, Rectfider Bridges and Power Management IC. We have own product deveopment and applicatioon team, fully support your requirements.
Thunder Values :
* Future and Result Focus
*Reliability, Credibility, Legality
*Initiative and Sustainability*Determination and Responsibility
*Trust, Openness and Fairness
Certifications
Packing & Delivery
Delivery
* For general Diodes in stock,shippment in 3 days after payment received.
* We expect customer to place order 15 days in advance, in case the ordering quantity is large or product is not our regular stock.
