pvc coated fiberglass sleeving

FOB Price

US$ 0.01 - 1 / Meter

100 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	HAOXIANG
Model Number	2715 pvc fiberglass sleeving	Type	Insulation Sleeving
Material	Other, Fiberglass, Fiberglass , pvc	Application	Other, Wiring protection and insulation, protection and insulation for wirings
Rated Voltage	1.5-4.0Kv

1. I.D. 0.5-30mm
2. BDV:1.5KV,2.5KV,4KV
3. Operating Temp.-25-130 degrees Celsiu
4. Protection and insulation for wirings

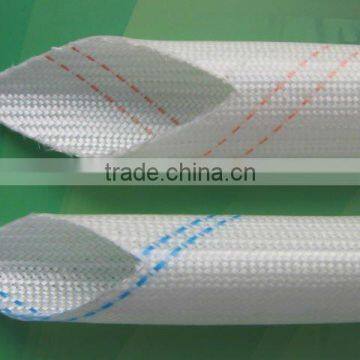

2715 PVC Fiberglass Sleeving:

1. Temp. -25-130°C

2. Dia: 0.5-40mm

3. Color: Blue, green, red and straw yellow spiral lines or as per customers' requests.

4. Features: Smooth appreance, felxible body, good dielectric, chemical resistance, super elasticity, antiaging performance.

5. Technical Process: Made of non-alkly fiberglass braided sleeving coated with PVC (polyvinyl chloride) resin under high temp.

6. Applications: For wiring , radio, motors, appliances, electric instruments or apparatus and other electric equipment.

7. Breakdown voltage: 1.5kv, 2.5kv, 4kv, 7kv.

8. Packing: 1000mm/piece, 100m/roll.

Property	Requirements
Resistance to soldering heat	Pass (only for sleeving having nominal bore Diameter up to and including 5mm)
Bending after heating	No cracking or detachment of coating shall all be visible after bending around mandrels after 96h at 130°C
Bending at low temperature	No cracking or detachment of coating shall be visible after bending around mandrels while at-25°C
MΩ Insulation resistance	At room temp :103 After damp heat: 101
Flame propagation method A,sec,max	60,in addition,the indicator flag on any of the threetest specimens shall not be burned.
Temperature index	105°C
Breakdown Voltage kv Straight mandrel with 25mm electrode	Room temp	Elevated temp	Damp heat
Central value	4.0	1.2	1.2
Lowest individual value	2.5	0.8	0.8

Xuchang Haoxiang Insulation Materials Co., Ltd.: Contact namePeter Xin
Chat Now; Phone86-374-3269889; AddressXiaozhai Industrial Park, West Part of North Beltway, Xuchang, China, Xuchang, Henan
