Home > Products > FTTH Drop Cable > 2016 hot G657A 1 core drop fiber optic ftth price per meter

2016 hot G657A 1 core drop fiber optic ftth price per meter

FOB Price

USD $0.05 - $0.06 / Meter

1 Meter(Min.Order)

Supply Ability 100 Kilometer / Kilometers per Month
Port SHENZHEN
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	GL
Model Number	FTTH 1 Core	Type	Cat 1
Number of Conductors	1

Product Description

2016 hot G657A 1 core drop fiber optic ftth price per meter

Description:

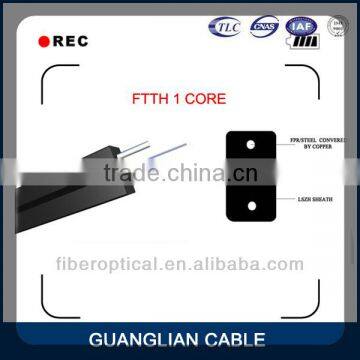

* The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP)

are placed at the two sides. Then the cable is completed with a black or color LSZH/PVC sheath.

Characteristics:

* Weight, low cost, and practicability.

* Suitable for limited space field of the branch, indoor series

* Laid to facilitate construction operations;part and the cable

* Jacket use low smoke, halogen-free flame-retardant materials.

* Prevent lightning and strong electric environment;

*FRP or KFRP strengthen the component materials

Technical Parameter:

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(°C)
1	3.1*2.0	8	600	200	1000	300	20D	10D	40
2	3.1*2.0	8	600	200	1000	300	20D	10D	40
4	4.1*2.0	10	600	200	1000	300	20D	10D	40
1 (Self-support)	5.3*2.0	21.0	600	200	1000	300	20D	10D	40
2 (Self-support)	5.3*2.0	21.0	600	200	1000	300	20D	10D	40
4 (Self-support)	5.6*2.0	21.5	600	200	1000	300	20D	10D	40
12 (Self-support)	3.0*9.0	21.7	600	200	1000	300	20D	10D	40

Related Product:

Our Factory:

Hunan Guanglian Photoelectricity Electricity Co.,Ltd is a leading enterprise which has specialized

in manufacturering of fiber optic cable for more than 9 years, we can supply cables such as Outdoor

Fiber Optical cable, Indoor Fiber Optical cable, FTTH Cable , Special Fiber Optic Cables (OPGW),etc.

The application can involve to Aerial / Duct / Underground, etc.

SINCERELY WELCOME YOUR COMING TO US!

Fiber Optic Cable Testing:

Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber

Cable to withstand mechanical stresses and strains likely to be encountered in its lifetime. Each

mechanical characteristics can be tested on testing machine for the particular test.

Cable Wooden Drum:

The cables will be shipped on disable wooden or treated wooden drums.

Inner packing: Steel reel on wooden drums which wrapped with insulated material;

Out packing: Protected by wooden batterns.

PS:The inner and outer ends of cable will be capped and made accessible for testing. A direction

of rotation arrow is marked on the drum together with the identification information.

Packing and Shipment:

The following printing(white hot foil indentatioin)is applied at 1-meter intervals.

Supplier: As cuctomer required
Standard Code(Product Type, Fiber Type, Fiber Count): Aerial/Duct/Buried SM/MM xx F
Year of manufacture: xxx
Length marking in meters
Cable ID / Drum No.

The accuracy of marking is ±0.5%. Occasional loss of printing and remarking is in accordance with

Bellcore GR 20 and supersedes earlier marking. Cables can be supplied with a range of single mode

or multimode fibers and customized printing.

Cooperated Clients:

Advantages from GL

♦ We accept OEM and ODM. The cable size and material are customized.Ur own logo and

own design are welcome. Which makes our custommers satisfied.we have advanced facilities and

excellent quality control department. We will produce according to ur requirment and description;

♦ With more than 9 years experience in fiber optic cable, based on our superior quality, competitive

price and professional service, we already cooperated and established long-term business

relationship with both domestic and overseas famous enterprises.

Contact Us:

Website:
Contact: Ms Coco
Phone: +86-731-85501765 Fax: +86-731-89722708
Address: No.318 Xizi,Wanjiali Road,Yuhua District,Changsha.Hunan,China,410007
Whatsapp: +86 15211134956
Skype: coco_1758
Email:coco(at)
