Wet Grinding Lab Ball Milling Machine, Lab Ball Miller Machine

QHQM series new type horizontal ball mill features: reasonable structure design, convenient operation, as well as strong adaptability. It can be used for material superfine grinding and mixing in chemical, abrasive, ceramics, medicine, food and other industries.

As per customer’s different requirements, there are ball mills with jacket or without jacket. (The ball mill with jacket can automatically discharge and separate minerals from steel balls, as well as dust proof.) The cylinder body can be made of ordinary steel, high quality stainless steel or other materials. It also can be lined with ceramics, polyurethane or PP materials.

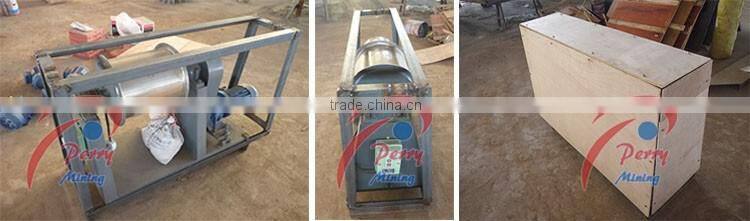

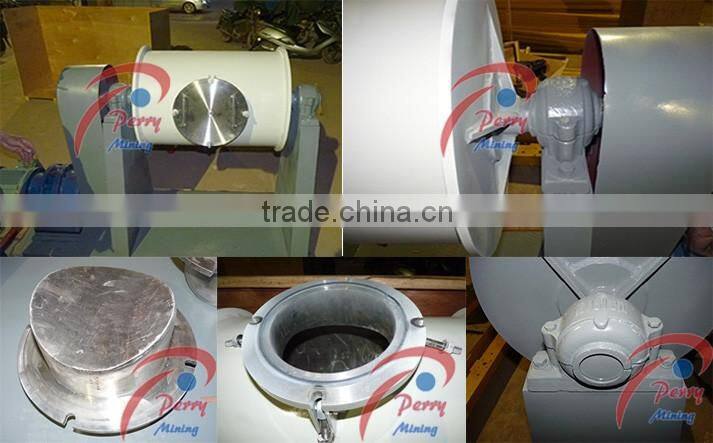

 Lab Ball Milling Machine  Lab Ball Milling Machine  Lab Ball Milling Machine  Lab Ball Milling Machine

Structure & Principle of Lab Ball Milling Machine

This equipment is composed of motor, reducer, cylinder body, bearing seat, belt pulley, and control box etc. The cylinder body is filled with a number of grinding medium (zirconia balls, polyurethane balls, or bearing steel balls etc).

The grinding medium and minerals are lifted up to a certain height by the rotation force of cylinder body, and then detach the cylinder wall and drop down following a parabola by the force of gravity.

The minerals are crushed and mixed by friction and shear generated by rolling and sliding of grinding medium’s impacting and grinding.

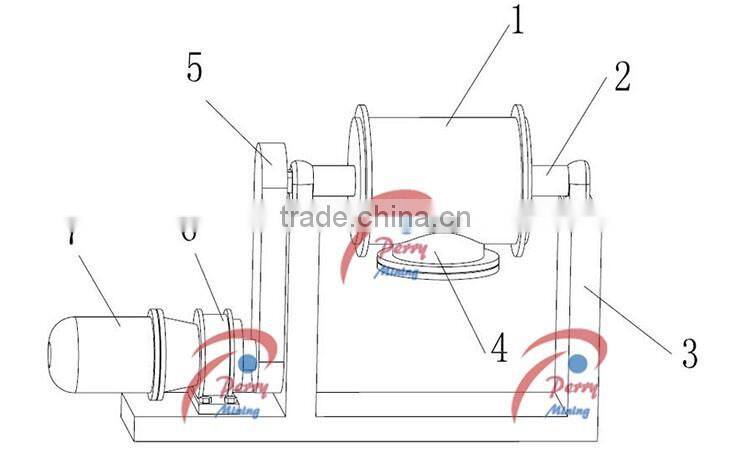

1. Cylinder body 2. Bearing 3. Support frame 4. Feeding port 5. Belt pulley 6. Reducer 7. Motor

Specifications of Lab Ball Milling Machine

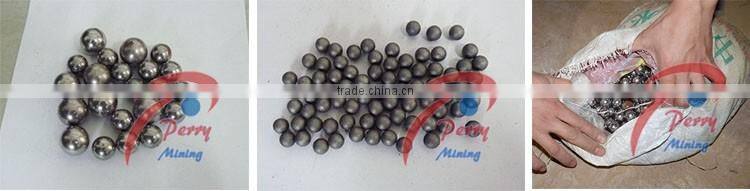

  Steel Balls of Lab Ball Milling Machine

The grinding steel ball for QHQM series lab ball mill is the bearing balls.

  Lab Ball Milling Machine  Lab Ball Milling Machine  Lab Ball Milling Machine  Lab Ball Milling Machine

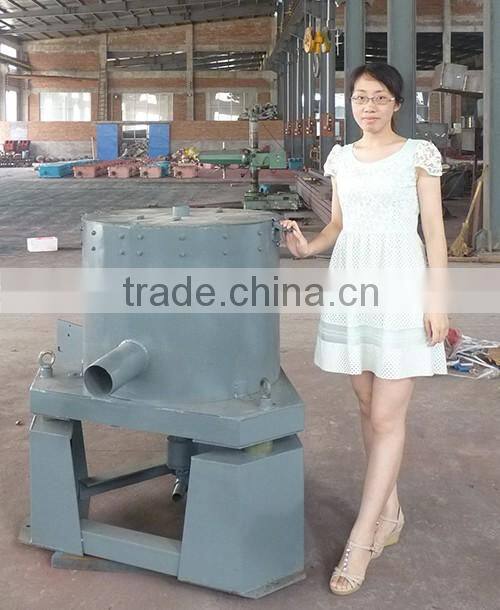

Some of other lab equipment  of Lab Ball Milling Machine

  Lab Ball Milling Machine  Lab Ball Milling Machine  Lab Ball Milling Machine  Lab Ball Milling Machine

  Lab Ball Milling Machine  Lab Ball Milling Machine  Lab Ball Milling Machine  Lab Ball Milling Machine

Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.   Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on.
