Iron Ore Double Log Washer for Sale
- Xiamen Guangzhou Shenzhen
- T/T Credit Card
You May Like
-
Small Gold Washing Plant, Gold Washing Equipment
-
RXT Model Diamond Rotary Scrubber For Washing Diamond
-
Gold Washing Rotary Scrubber Clay Washing Scrubber
-
RXT1545 Model Diamond Gold Scrubbers Washing Rotary Scrubber
-
South Africa Diamond Scrubber Diamond Rotary Scrubber Diamond Washing Equipment
-
India Placer Sand Rotary Scrubber Washing Gold
Product Details
| Condition | New | Motor Type | AC Motor | |
| Power(W) | 7.5kw | Capacity(t/h) | 25-32t/h | |
| Place of Origin | Jiangxi, China | Brand Name | Perry Log Washer for Sale | |
| Model Number | 2RXL540 Log Washer for Sale | Dimension(L*W*H) | 8120*1280*1580mm | |
| Weight | 3.9t | Certification | ISO9001:2008;CE | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Main equipment available:
Jigger machine Trommel scrubber
Shaking table Log Washer for Sale
Spiral separator Flotation machine
Centrifugal concentrator Jaw crusher
Mobile trommel Hammer mill
Fixed trommel Ball mill
Complete alluvial gold line Complete rock gold line
Please CLICK the above items for more information! Full Plant Design is Available for both Rock and Alluvial type minerals.
Iron Ore Double Log Washer for Sale for Sale
Log Washer for Sale is used to wash ores with mud before the employment of mineral processing technology as well as increase ore dressing indexes of back-end technology. They are often used to wash ores such as manganese ore, iron ore, limestone, tungsten ore, tin ore and silica sand ore. According to silt content, grain size and washing difficulty level of ores, double-screw washer, troughed ore washer or cylindrical ore washer can be selected. RXT Log Washer for Sale is apply to desliming of sand and gravel. Single-deck or double deck round screen is installed inside the drum of the washer which can get two or three types of sand and gravel production of different specifications.
The blades are usually the casting type. There is also another type of blades: the replaceable blades which are tightened by bolts.

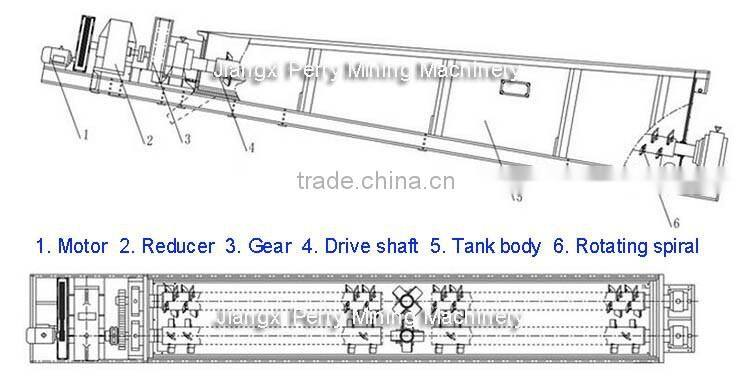

Structure of Log Washer for Sale
The Log Washer for Sale is mainly composed of driving system, spiral, tank, bottom support, and overflow tank.
Technical Parameter of Log Washer for Sale
Model | Spiral Dia. (mm) | Rotating Speed (r/min) | Feeding size (mm) | Tank slope (o) | Output (t/h) | Power (kw) | Weight (t) |
2RXL320 | Φ320×3200 | 28 | ≤30 | ≤12 | 10 | 4 | 0.9 |
2RXL400 | Φ400×4600 | 23 | ≤30 | ≤12 | 20 | 5.5 | 1.9 |
2RXL540 | Φ540×4600 | 23 | ≤30 | ≤12 | 25 | 7.5 | 3.9 |
2RXL750 | Φ750×7600 | 22.7 | ≤70 | ≤12 | 50 | 15 | 17.2 |
2RXL800 | Φ800×7600 | 22 | ≤70 | ≤12 | 70 | 18.5 | 18.9 |
2RXL914 | Φ914×7600 | 21 | ≤70 | ≤12 | 100 | 22 | 23 |
Successful cases of Log Washer for Sale
Log Washer for Sale Log Washer for Sale Log Washer for Sale Log Washer for Sale

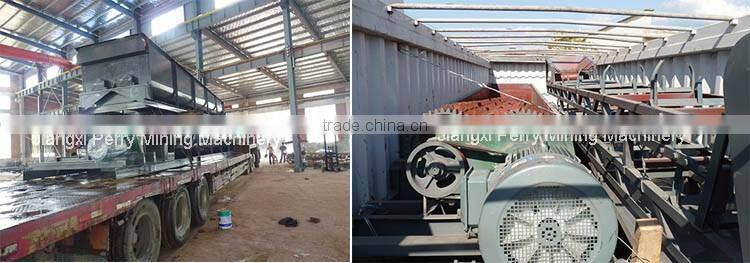

FCL shipment:
The main machines are loaded and fixed in container, while the spare parts are packed in wooden boxes.
LCL shipment:
The machines are usually packed in steel frame with plywood.
Log Washer for Sale Log Washer for Sale Log Washer for Sale Log Washer for Sale
Perry Mining will offer you the turnkey solution for your ore mining professionally. Just trust us and let us do it for you!
Log Washer for Sale Log Washer for Sale Log Washer for Sale Log Washer for Sale
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd, professional in mining equipment manufacturing, has more than 25 years' manufacturing experiences. Our equipment had been exported to more than 50 foreign countries.
| Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.
Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on. |
Log Washer for Sale Log Washer for Sale Log Washer for Sale Log Washer for Sale
Name: Helen Huang |
|
| E-mail: helen@ | |
Mobile: 0086-15879777833 | |
Skype: sabrina88196 |
1. Are you a trade company or a manufacturer?
A: We are an ISO9001:2008 and CE verified manufacturer specialized in various kinds of mining equipment as well as mining technology. OEM & ODM service are available.
2. What is your delivery time?
A: The delivery time is about 7-20 days after receipt of payment.
3. What is the payment terms?
A: The payment term is 45% payment in advance, 55% balance before shipment.
4. Why choose you as supplier?
A: 1). High quality & most competitive price
We are a factory who could provide the lowest price to you.
We are top 3 and with more than 20 years experiences in mining equipment.
2). Fast delivery--Goods will be shipped within 7 - 30 days based on order quantity.
3). Best service--Overseas customers can enjoy 24/7 after-sale service and dispatching service
4). 3D & CAD flow chart design
Iron Ore Double Log Washer for Sale for Sale
Iron Ore Double Log Washer for Sale for Sale
Iron Ore Double Log Washer for Sale for Sale
