Home > Products > High Pressure Air Compressor > 3M3/min 300/400bar 30/40Mpa Piston Reciprocating High Pressure Air Compressor
3M3/min 300/400bar 30/40Mpa Piston Reciprocating High Pressure Air Compressor
- Shanghai
- T/T
You May Like
-
300/400bar 2M3/min Air Cooled Electric Stationary Super High Pressure Piston Air Compressor
-
300/400bar 2M3/min Oil Lubricated High Pressure Reciprocating Piston Compressors
-
300/400bar 2M3/min Oil Lubricated High Pressure Piston Reciprocationg Piston Type Air Compressor
-
300/400bar 2M3/min Oil Lubricated Piston Recipricating Type High Pressure Air Compressor
-
30Mpa 2m3/min Multi-stage High Pressure Piston Air Compressor
-
20Mpa 2m3/min Multi-stage High Pressure Piston Reciprocating Air Compressor
Product Details
| Condition | New | Type | Screw | |
| Configuration | Stationary | Power Source | AC Power | |
| Lubrication Style | Lubricated | Mute | No | |
| Place of Origin | Shanghai, China | Brand Name | Dream | |
| Model Number | DMVF-2/450 | Voltage | 110-130V,220-380V,415-460V. | |
| Dimension(L*W*H) | 2150*1000*1700mm | Weight | 895Kg | |
| Certification | CE,GC,ISO9001 | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

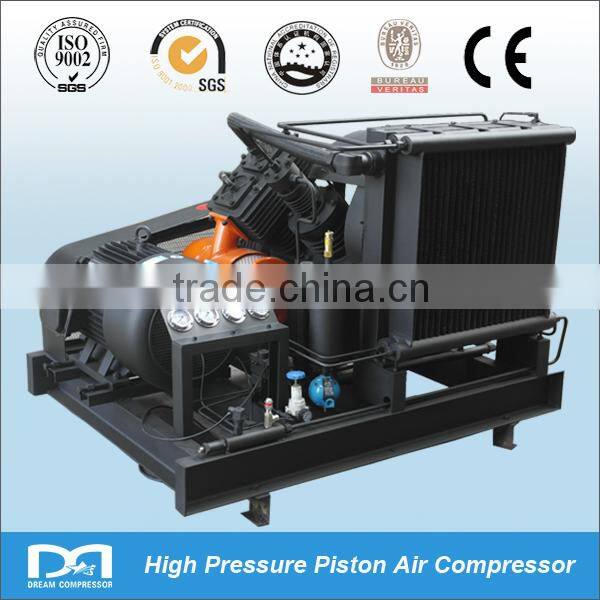

300/400bar 40Mpa high pressure piston reciprocating air compressor
V type 5 stages of air compression
Air delivery rate: 2 m3/min
Intake pressure: 0.1 MPa
Discharge pressure: 45Mpa
Intake temperature: ℃ ≤40
Discharge temperature: ℃ ≤180
Final temperature/: ℃ local temp.+5
Crankshaft RPM: r/min 1000
Piston stroke: mm 110
Cylinders:5
Power: KW ≤37
Lube oil temperature: ℃ ≤70
Lube oil consumption: g/h ≤40
Cooling: air cooled
Air volume: m3/h 7800
Drive:belt or direct drive
Safety valves
1st stage: 0.35 Mpa
2nd stage: 1.1 Mpa
3rd stage 4 Mpa
4th stage 13 Mpa
5th stage 45.5 Mpa
Noise Power:(LWA) ≤108
Weight: Kg 1300
Size:(L*W*H) mm 1780*1450*1340

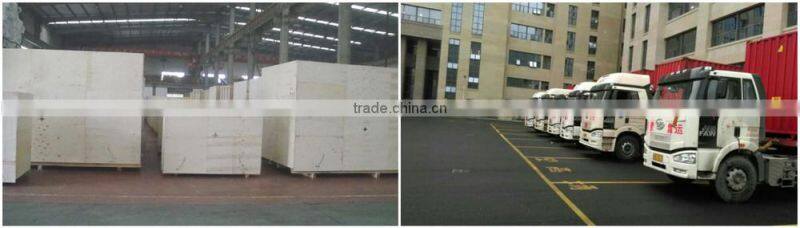

Professional packaging,make sure machine's safety!
Powerful logistics team serve you!

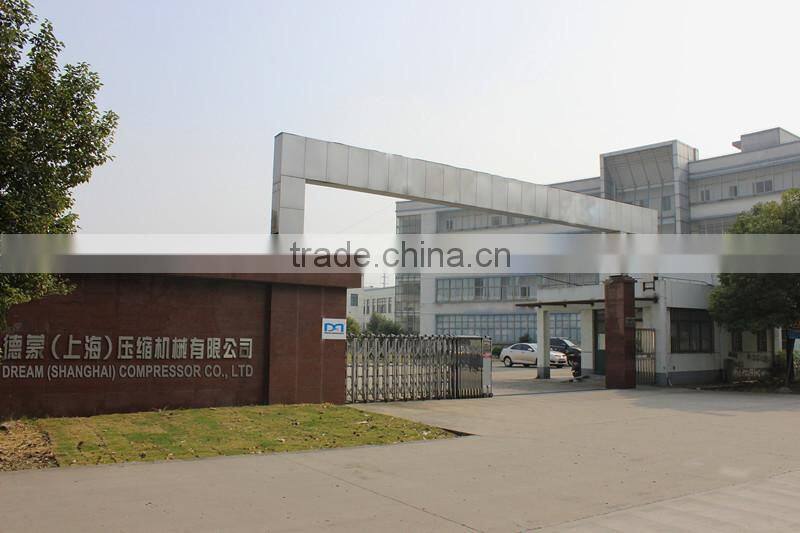

Dream(Shanghai) Compressor Co., Ltd., founded in 2005, is a Sino-German high-tech enterprise in research, development, production and sales. Our company is located in Songjiang district, Shanghai, covering an area of ten thousand square meters with more than 300 employees. We have set up offices in the major provinces and cities. We are not only provide the high-quality air compressors from minimum 7.5Kw to maximum 355Kw, but also provides matching processing equipment of compressed air.We will wholeheartedly serve you.
Contact Us
- Dream(Shanghai) Compressor Co., Ltd.
- Contact nameMark Ma Chat Now
- Phone86-021-67625676
- AddressNo. 58, Rongshu Road
