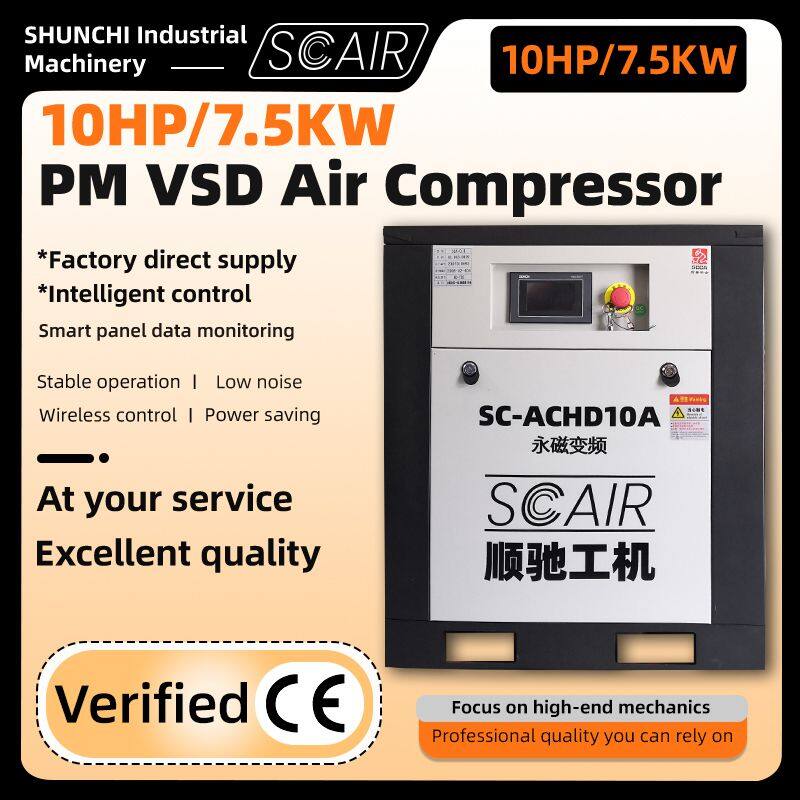

SCAIR 10HP 1.2MPa Compressor for Leak Testing Benches & Pneumatic Calibration Systems

SCAIR's 10HP compressor delivers 1.1 m3/min at 1.2MPa with 0.001mg/m3 oil purity, eliminating false positives in automotive fuel rail testing where hydrocarbon contamination causes 18% measurement drift.

Featuring dual-precision regulators and thermal compensation, this 7.5kW system maintains ±0.05% pressure stability during ISO 6789 torque tool calibration - critical for maintaining ±1% accuracy in aerospace fastener tensioning.

• Air Delivery: 1.1 m3/min @ 1.2MPa (0.9m3/min @ 1.5MPa for valve seat testing)

• Pressure Control: ±0.05% stability with 0.01MPa resolution

• Purity Certification: ISO 8573-1 Class 0 (oil), Class 1 (particulates)

• Response Time: 0.3s pressure build-up from 0-1.2MPa

• Pulse-Free Architecture: Dual accumulators eliminate 0.02MPa ripple causing gauge measurement errors

• Thermal Lock: Active temperature control maintains ±0.3°C for volumetric leak testing

• Contamination Guard: Catalytic oxidizer destroys VOCs <0.1ppb for semiconductor wafer testing

• Data Integrity: MODBUS RTU output for pressure/temperature logging per ISO/IEC 17025

• Automotive Components: Powers fuel injector leak test benches detecting 0.5cc/min leaks (meets ISO 4021)

• Medical Device Testing: Supplies ventilator valve calibration rigs with FDA 21 CFR Part 820 compliance

• Aerospace Seals: Tests aircraft door seals at 1.2MPa simulating 40,000ft altitude conditions

• Electronics Manufacturing: Calibrates pneumatic screwdrivers with 0.002Nm torque repeatability

• Certifications: ISO/IEC 17025 (testing labs), ASME B40.7 (pressure gauges), ISO 6789 (torque tools)

• Traceability: NIST-traceable pressure calibration certificate included

• Validation: IQ/OQ documentation for ISO 9001 quality systems

• Q: How to maintain stability during cyclic testing?

  A: Adaptive PID? algorithm compensates for temperature drift during 500-cycle endurance tests.

• Q: Solution for micro-leak detection below 0.1sccm?

  A: Integrated 50L reference volume enables pressure decay resolution of 0.001Pa/sec.

• Q: Compatibility with helium leak detectors?

  A: Dedicated ultra-clean port with <0.01ppb hydrocarbon background for tracer gas systems.




• Industry-exclusive 1.2MPa focus for precision testing

• Novel thermal compensation and pulse-free architecture

• Applications in altitude simulation and micro-leak detection

• Compliance with ISO 6789 and ASME B40.7 standards

• Solved measurement drift and cyclic stability pain points
