Home > Products > New Products > 3-pieces Ball Valve
3-pieces Ball Valve
- QINGDAO TIANJIN SHANGHAI
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | Other, Medium Pressure, Medium pressure | Power | Manual | |
| Material | Other, stainless steel, carbon steel | Temperature of Media | Normal Temperature | |
| Media | Other, Water, Oil, Gas and so on | Port Size | DN15-DN800 | |
| Place of Origin | Shandong, China | Brand Name | BFW |
Product Description
Specifications
3-pieces Ball Valve:Design Standard: ASME, DIN, BS, JIS, API, etc.
Size: Reduce Bore, Full Bore
1. Company Information:
BESTFLOW INDUSTRIAL CO., LTD. is one of professional manufacturers and exporters of valves in China. The products includes: gate valve, globe valve, check valve, butterfly valve, ball valve etc., they are widely used the valve systems of nuclear power plants, power station, water, natural gas, petrochemical, oilfields, fire-fighting, ship buildings, engineering fields and construction industry.
Depend on advanced production technology and equipment, strict quality management and control, good service and competitive prices, win a good reputation in the domestic and foreign customers, and exported the products to Europe, America, Middle East and southeast Asian, over 50 countries and areas.
We are certified to the international ISO-9001 quality system standard and all products are carefully tested to meet the strict quality requirements and industry standards for each order. Parts of our products have been tested, listed, approved by some predominant labs and bodies, such as UL (USA), FM (USA), NSF(USA), CUL(Canada), CSA(Canada), KS(Korea), DVGW(Germany), TUV(Germany), TSE(Turkey) and PSB(Singapore), JIS(Japan) and BSI(England).
2. Product Description:
Stainless steel ball valve
Ball valve
High quality ball valve
Stainless steel ball valve
Carbon steel ball valve
Floating ball valve
| Standard: | ANSI, DIN, JIS, BS | ||||
| Size: | 2"-32" or DN50-DN800 | ||||
| Pressure: | Class150-1500LB or PN16-PN160 or 10K-40K | ||||
| Design & Manufacture Std: | API608, ASME B16.34, API6D, BS5351,DIN,JIS | ||||
| Face to Face Std: | ASMEB16.10 (JISB2002),API 6D, DIN3202, ASME B16.25 | ||||
| End Connection Std: | ASME B16.5,ASME B16.47, JISB2212-JISB2214, DIN2543-2550,ASME B16.34 | ||||
| Structure Type: | One-piece, Two-piece, Three-Piece,Reduced bore, Full bore Floating type(1/2 -10 ), trunnion type(2 -32 ) | ||||
| Operated way: | Lever, Gear, Pneumatic, Electric Acturtor | ||||
| BALL VALVE MAIN PART MATERIAL | |||||
| Part Name | CF8 SERIES | CF3 SERIES | CF8M SERIES | CF3M SERIES | WCB SERIES |
| BODY | CF8 | CF3 | CF8M | CF3M | WCB |
| BALL | F304 | F304L | F316 | F316L | 1CR13 |
| SEAT | PTFE/PPL | PTFE/PPL | PTFE/PPL | PTFE/PPL | PTFE/PPL |
| Stem | F304 | F304L | F316 | F316L | 1Cr13 |
| PACKING | PRFE | PTFE | PTFE | PTFE | GRAPHITE |
| BOLT | A193-B8 | A193-B8 | A193-B8M | A193-B8M | 35CrMoA |
| NUT | A194-8M | A194-8M | A194-8M | A194-8M | 45 |

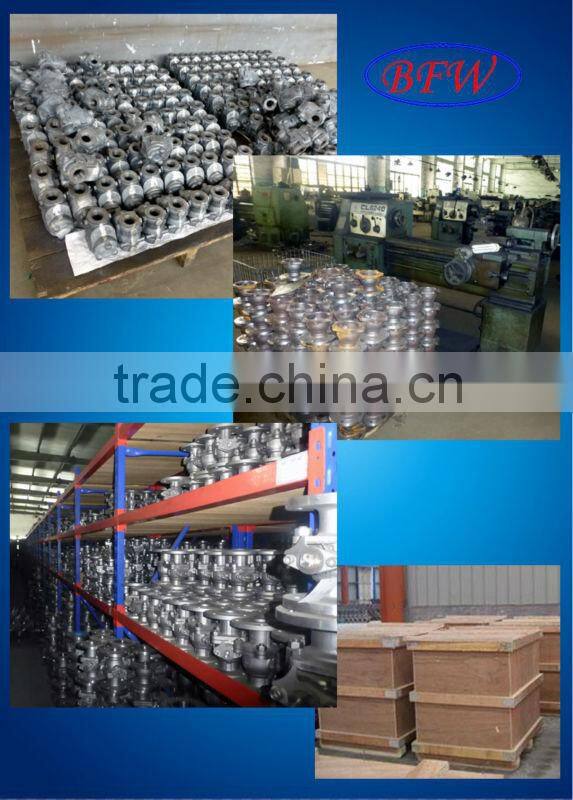

3. Product Picture:
4. Our certificates:


5. Our Service:
BESTFLOW INDUSTRIAL CO., LTD.
Add: No. 63, TECHNOLOGY PARK, QINGDAO, CHINA
TEL:+86-532-55576189 FAX:+86-532-55576192
SKYPE: LINDA.BFW WEBSITE:
