Home > Products > New Products > Cast Iron Wafer Style Butterfly Valve
Cast Iron Wafer Style Butterfly Valve
- QINGDAO TIANJIN
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Butterfly | |
| Pressure | Other | Power | Manual | |
| Material | Other, Casting, Iron, steel | Temperature of Media | Normal Temperature | |
| Media | Other, Oil,Water,Gas | Port Size | 1 1/2''-12'' | |
| Place of Origin | Shandong, China | Brand Name | BFW |
Product Description
1. Company Information:
BESTFLOW INDUSTRIAL CO., LTD. is one of professional manufacturers and exporters of valves in China. The products includes: gate valve, globe valve, check valve, butterfly valve, ball valve etc., they are widely used the valve systems of nuclear power plants, power station, water, natural gas, petrochemical, oilfields, fire-fighting, ship buildings, engineering fields and construction industry.
Depend on advanced production technology and equipment, strict quality management and control, good service and competitive prices, win a good reputation in the domestic and foreign customers, and exported the products to Europe, America, Middle East and southeast Asian, over 50 countries and areas.
2. Product Description:

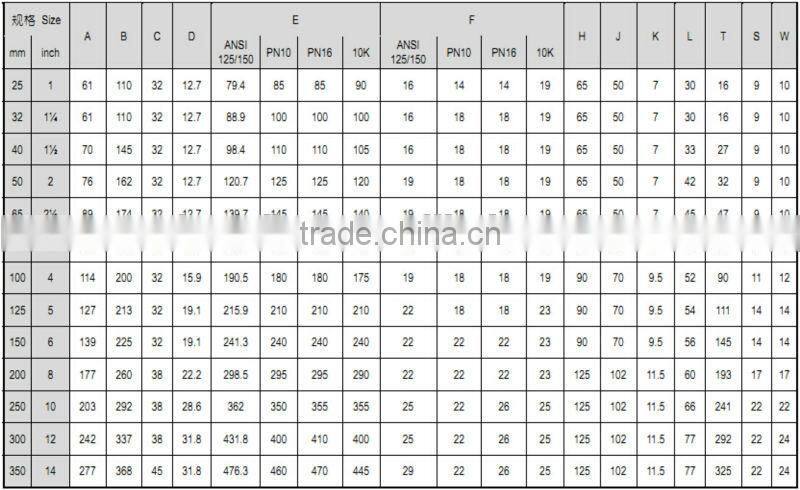

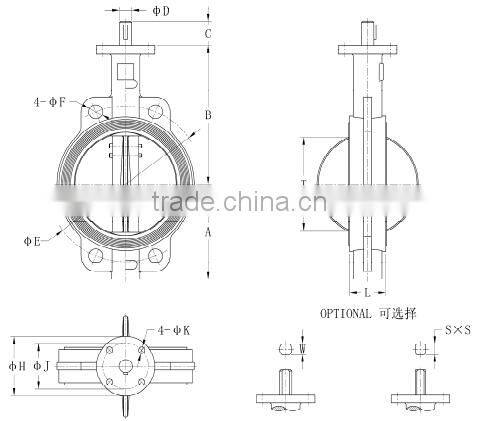

Cast iron wafer style butterfly valve:
| Materials list | ||
| Item | Part Name | Materials |
| 1 | Body | Cast Iron: ASTM A126CL.B, GG25 |
| Ductile Cast Iron: ASTM A536 65-45-12, GGG40 | ||
| Stainless Steel: ASTM A351 CF8, CF8M | ||
| Carbon steel: ASTM A216 WCB | ||
| 2 | Stem | Alloy: Monel K500; |
| Stainless Steel: ASTM A182 410 416 420 431 304 316 | ||
| 3 | Seat | NBR, EPDM, PTFE, Viton |
| 4 | Disc | Ductile Cast Iron (Nickel plated): ASTM A536 65-45-12, GGG40 |
| Stainless Steel: ASTM A351 CF8, CF8M | ||
| AL-Bronze: ASTM B148 C954 | ||
Other butterfly valves we produce:
3. Our Service:
BESTFLOW INDUSTRIAL CO., LTD.
Add: No. 63, TECHNOLOGY PARK, QINGDAO, CHINA
TEL:+86-532-55576189 FAX:+86-532-55576192
SKYPE: bestflowfitting WEBSITE:
