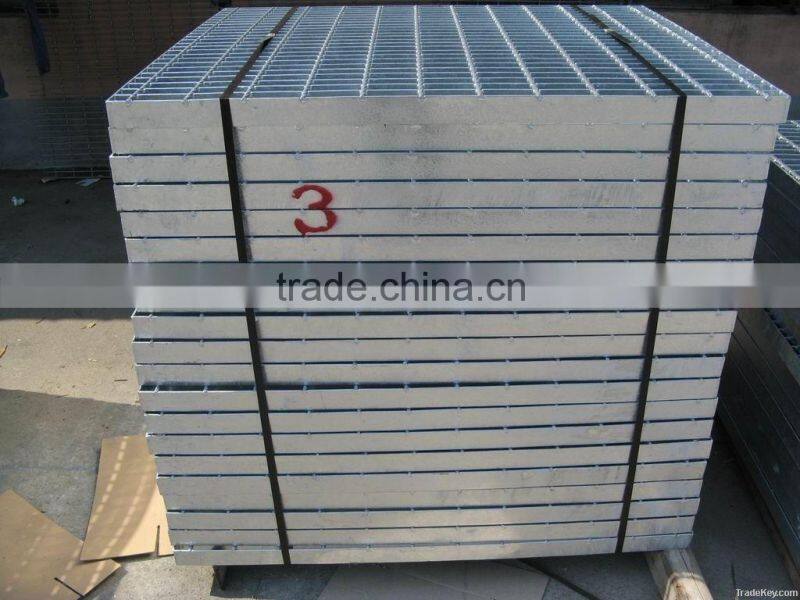

Hot Dipped Galvanizing Steel Bar Gratings
- any China port
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | BFW | |
| Model Number | BFW-0765 | Material | Steel |
Product Description
Specifications
hot dipped galvanizing steel grating:1.Bearing bar pitch:30,40,60mm
2.Cross bar pitch;50,100mm

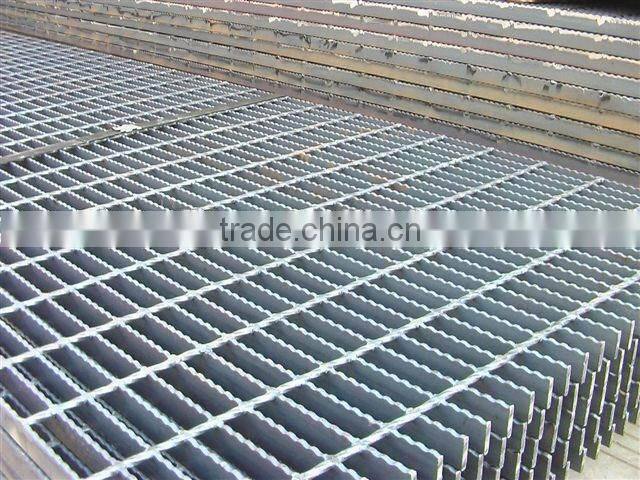

3.Plain,Serrated,I-shape
Product Description:
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10;the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4),(19-w-2) and so on.>
3) Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.
4) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
5) Surface Treatment:
Untreated, Painting or Hot dip Galvanizing
6) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
| No | Item | Description |
| 1 | Bearing bar | 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm |
| 2 | Bear bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
| 3 | Cross bar pitch | 38,50,76,100,101.6mm |
| 4 | Material | Q235,A36,SS304 |
| 5 | Surface treatment | Black, hot dipped galvanising, paint |
| 6 | Standard | China: YB/T 4001.1-2007 |
| USA: ANSI/NAAMM(MBG531-88) | ||
| UK: BS4592-1987 | ||
| Australia: AS1657-1985 |
Product Description:
