DIN3352 F4/F5 Flanged End Resilient Seat Non-rising Stem Gate Valves PN16
- QINGDAO TIANJIN SHANGHAI
- T/T
You May Like
-
DIN3352 F4 Flanged End Resilient Seat Non-rising Stem Gate Valve
-
High Quality Cast Iron Wafer Type Butterfly Valves
-
PN16 Wafer Type Butterfly Valves
-
ANSI Cast Iron Lug Type Butterfly Valve
-
China PVC Socket Ends Ductile Iron Non-rising Stem Resilient Seated Gate Valve
-
AWWA C515/C509 250 PSI Ductile Iron Rising Stem Resilient Seated Gate Valve
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Low Pressure | Power | Manual | |
| Material | Other, Casting, Ductile iron, Grey iron, Steel | Temperature of Media | Normal Temperature | |
| Media | Water | Port Size | DN40-DN600 | |
| Place of Origin | Shandong, China | Model Number | BFW-008 | |
| Brand Name | BFW |
Product Description
Specifications
Resilient Seated Gate Valve:1. Standard: DIN3352
2. Size: DN40-DN600
3. Pressure: PN10, PN16, PN25
1. Product Description:
DIN3352 F4F5 flanged end resilient seat non-rising stem gate valves PN16:
1. Design, manufacture conforms to DIN3352.
2. Face to face dimension conforms to series 14 of BS EN558-1
3. Flange drilled conforms to BS EN1092-2.

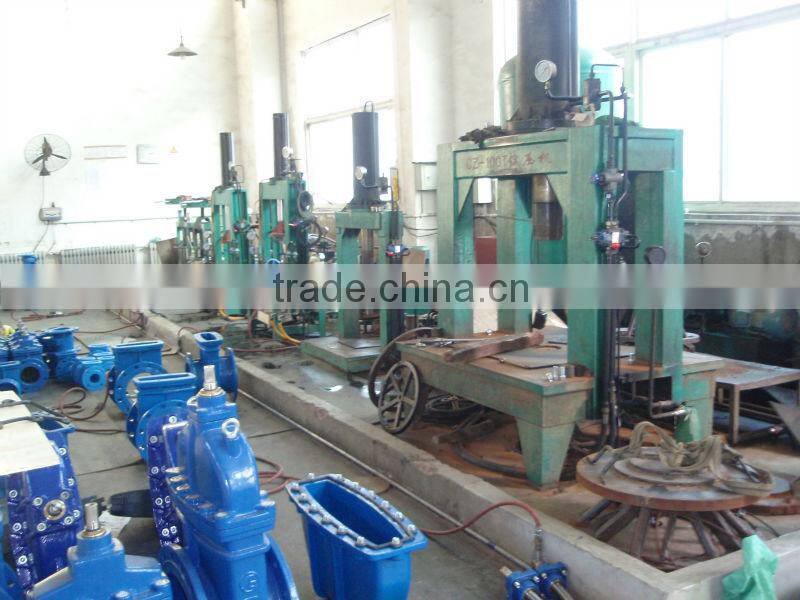

| Norminal Pressure | 1.6MPa | |
| Suitable Medium | water | |
| Test pressure | shell | 2.4MPa |
| seat | 1.76MPa | |
| Test time | DN50-150 | 60S |
| DN>150 | 120S | |
| Temperature | ≤80°C | |

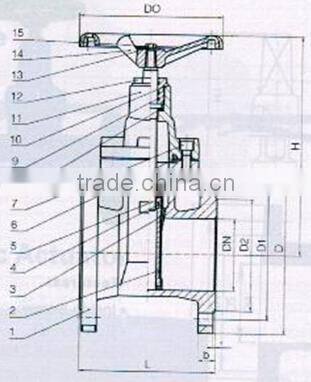

Dimensions:
| DN | L | D | D1 | D2 | b | f | n-d | Do |
| 40 | 140 | 150 | 110 | 84 | 18 | 3 | 4-19 | 130 |
| 50 | 150 | 165 | 125 | 102 | 19 | 3 | 4-19 | 130 |
| 65 | 170 | 185 | 145 | 122 | 19 | 3 | 4-19 | 130 |
| 80 | 180 | 200 | 160 | 132 | 19 | 3 | 8-19 | 150 |
| 100 | 190 | 220 | 180 | 156 | 19 | 3 | 8-19 | 185 |
| 125 | 200 | 250 | 210 | 184 | 19 | 3 | 8-19 | 185 |
| 150 | 210 | 285 | 240 | 211 | 19 | 3 | 8-23 | 195 |
| 200 | 230 | 340 | 295 | 266 | 20 | 3 | 12-23 | 225 |
| 250 | 250 | 405 | 355 | 319 | 22 | 3 | 12-28 | 245 |
| 300 | 270 | 460 | 410 | 370 | 24.5 | 4 | 12-28 | 285 |
| 350 | 290 | 520 | 470 | 429 | 26.5 | 4 | 16-28 | |
| 400 | 310 | 580 | 525 | 480 | 28 | 4 | 16-31 | |
| 450 | 330 | 640 | 585 | 548 | 30 | 4 | 20-31 | |
| 500 | 350 | 715 | 650 | 609 | 31.5 | 4 | 20-34 | |
| 600 | 390 | 840 | 770 | 720 | 36 | 5 | 20-37 |
Material list:
| No. | Part | Material | Germany Standard | Chinese Standard |
| 1 | body | ductile iron | DIN1693 GGG50 | GB1348-88 QT500-7 |
| 2 | wedge frame | ductile iron | DIN1693 GGG50 | GB1348-88 QT500-7 |
| 3 | wedge | NBR | NBR | |
| 4 | stem nut | cast brass | DIN17656G-CuZn37Pb | GB1176-87 ZCuZn40Pb2 |
| 5 | stem | stainless steel | GB1220-92 2Cr13 | |
| 6 | flange gasket | NBR | DIN30 | NBR |
| 7 | screw | steel | GB699-88 30 | |
| 8 | gasket | teflon | HG/T2902 | |
| 9 | O-ring | NBR | NBR | |
| 10 | O-ring | NBR | NBR | |
| 11 | bonnet | ductile iron | DIN1693 GGG50 | GB1348-88 QT500-7 |
| 12 | stuffing box | cast brass | DIN17656G-CuZn37Pb | GB1176-87 ZCuZn40Pb2 |
| 13 | washer | steel | DIN17100 RSt37-2 | GB700-88 Q235 |
| 14 | handwheel | ductile iron | DIN1693 GGG50 | GB1348-88 QT500-7 |
| 15 | bolt | steel | DIN17100 RSt37-2 | GB700-88 Q235 |
2. Packaging & Shipping:
Packaging Detail: Playwood Case
Delivery Detail: about 30-35days after get the downpayment
