WRP Type S Platinum/Rhodium Thermocouple
- qingdao
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SICO | |
| Model Number | SCIO-571 | Usage | Industrial | |
| Theory | Temperature Transmitter | Temperature Range | 0-1600 |
Product Description
Specifications
IEC584IEC75
JB/T5582-1991
Specifications
1.Various explosion-proof types are available.
2.Good explosion proof performance.
3.using temperature highest can reach 1600c

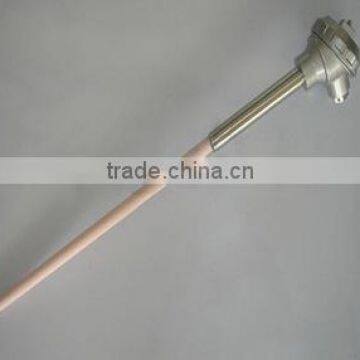

WRP Type S platinum/Rhodium thermocouple
Platinum rhodium thermocouple(S/B/R TYPE)
Platinum Rhodium Assembling Type Thermocouple is widely used in production places with high temperature. It is mainly used to measure temperature in glass and ceramic industry and industrial salting .
Product Introduction:
Conductir material | Type | Graduation | Spec. of protection tube(mm) | Use temperature°C | |||
Total Lenght | Length in fluid | external diameter of ceramic tube | Material of protection tube | ||||
PtRh10-Pt | WRP | S | 300 350 400 450 550 650 900 1150 1250 | 150 200 250 300 400 500 750 1000 1100 | 16 25 | High Al content tube | 0-1300 |
PtRh30-Ptrh6 | WRR | B | Corundum tube | 0-1600 | |||
PtRh13-pT | WRQ | R | 16 20 | High Al content tube | 0-1200 | ||
Mini PtRh10-Pt | WRP-100 | S | 252 | 252 | 7 | High Al content tube | 0-1200 |
1,Type and Graduation
2,Spec. of protection tube(total length and well length).
Temperature needed: 0-1800°C
Graduation S normally means: 0-1300°C
Graduation B normally means: 0-1600°C
Graduation R normally means: 1400-1500°C.
Method of fixing: normally without fixing device, but flange or threaded is available
3.SUM-UP :
S type thermocouple for you .such type the standard wire diameter is 0.5mm,( s-positive pole) material is Platinum - 90%, Rhodium - 10% ;(s- negative pole) is Platinum -100%, the long-term using temperature is 1300 degree. The short term using temperature highest
