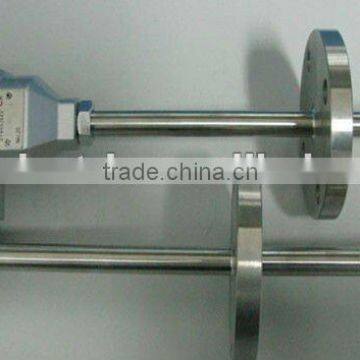

explosion proof thermocouple/thermocople/thermocouple with fixed flange

explosion proof thermocouple

As a kind of temperature sensor, it has wide applications in automatic control systems of chemical industry.

(a).The testing voltage of the insulation resistance at room temp.is500± 50VC.D.C,ambient temperature is 15-35°C,the relative humidity is 45%,atmospheric pressure is 86-106KPa,insert time is no less than 2 hours. Then:
When the thermocouple is longer than lm, the length and the insulation resistance 100M m,i,e, Rr. L 100M m L lm.
When the thermocouple is shorter than 1m, the insulation resistance should be no less than 100M.
(b). Insulation resistance at upper limiting temp,
The insulation resistance at upper limiting temp. should be no less than the following values:

3 Explosion proof principal and structure

4 Indication of explosion-proof thermocouple

The principal and structure of explosion-proof thermocouple are similar to those of the assembly type. The difference between them is that the junction box of the former takes a special explosion-proof structure as shown in the figure. The junction box is made by die-casting so it has enough thickness, explosion-proof space and mechanical strength. Because the box takes the explosion-proof thread and the cylinder-shaped joint interfaces. Together with the sealing washer and lack screw, it will be isolated from the outside dangerous gas when accidently the electric happens. In summary, our products will have very good explosion-proof effect if the customers use them under the d II BT₄ explosion-proof limit.
In order to ensure the firmness and reliability of the explosion-proof structure, the connection of the explosion-proof junction box and the protective tube is sealed with epoxy resin and fastening devices.

Indication of the temp. transmitter of mechanical and electronic unitization explosion-proof thermo-couple

5 Types and specifications of explosion proof thermocouples
