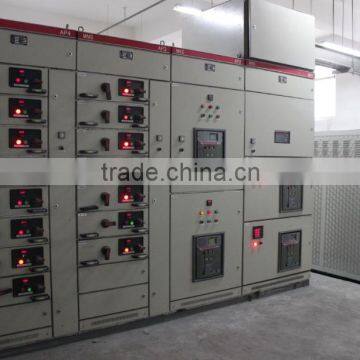

3 phase low voltage switch board for power transformer power distribution equipment
- 20000 Set / Sets per Month
- QINGDAO
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SICO | |
| Model Number | JP |
Product Description
JP Type LV Switch Cabinet
JP series LV switch cabinet is applied in 50Hz, rated voltage 0.4kV AC power distribution system. It integrates power distribution, control, protection, capacitance reactive compensation, metering functions into one cabinet which makes it compact and multifunctional.
JP switch cabinet is widely used in urban & rural power distribution system, industrial & mineral enterprises, residential area and street lighting system etc. JP series LV switch cabinet offers all the essential guarantees:
Indoor use
Ingress protection up to IP40
Multifunctional
Compact and economical
No. | Item | Value | |
1 | Rated Voltage | 400v | |
2 | Rated Frequency | 50Hz | |
3 | Creep Distance | 30mm | |
4 | Capacity of Transformer | 30~630kva | |
5 | Compensation mode | Circulatory, coding control, fuzzy control and automatic cut | |
6 | Responding time | <20ms | |
7 | 1min power frequency voltage withstand. | Phase to phase | 2.5kv |
Enclosure to living parts | 3.5kv | ||
