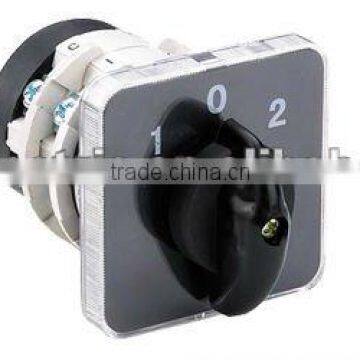

LW31 series rotary switches
Negotiable
/ Piece
1000 Pieces(Min. Order)
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SICO | |
| Model Number | LW31 |
Product Description
Please contact Ms.YIN---- yinhebey [at] gmail [dot] com, sikeqd [at] 126 [dot] com. Thank you.
Introduction
LW31 series rotary switches applied to switchgear and control of electric mkotors as well as to change over of electric circuitss,it’s a good substitution for other cam switches.
Technical parameters
Description | LW31-20 | LW31-25 | LW31-32 | LW31-50 | LW31-75 | |||||||||||||||||||
| Rated thermal currentITH | A | 20 | 25 | 32 | 50 | 75 | ||||||||||||||||||
| Rated working voltageUe | V | 110 | 220 | 440 | 110 | 220 | 440 | 500 | 690 | 110 | 220 | 440 | 500 | 690 | 110 | 220 | 440 | 500 | 690 | 110 | 220 | 440 | 500 | 690 |
| Rated working currentLe | ||||||||||||||||||||||||
| AC-21A | A | 20 | 25 | 32 | 50 | 70 | ||||||||||||||||||
| AC-22A | A | 16 | 20 | 32 | 40 | 63 | ||||||||||||||||||
| DC-20 | A | 20 | 25 | 32 | 50 | 75 | ||||||||||||||||||
| power | P | |||||||||||||||||||||||
| AC-23A | KW | 5 | 7.5 | 7.5 | 11 | 15 | 11 | 18.5 | 22 | 15 | 22 | 30 | 18.5 | 30 | 37 | |||||||||
| AC-3 | KW | 4 | 5.5 | 5.5 | 7.5 | 11 | 7.5 | 15 | 18.5 | 11 | 18.5 | 22 | 15 | 22 | 30 | |||||||||
| AC-4 | KW | 2.2 | 3 | 2.2 | 4 | 4 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 9 | 7.5 | 11 | 15 | |||||||||
| DC-23 | KW | 0.77 | 1.2 | 2 | 2.2 | 2 | 2.2 | 3 | 6 | 4 | 8 | |||||||||||||
Mechaical life
Mechanical life without load:0.3×106 times,operation frequency is 120 times/h.
Mechanical life with load:0.6×104 times operation frequency is 120 times/h.
Dimensions and installation
Description | Dimensions(mm) | Installation(mm) | ||||||||||
| A | C | H | L | E | D1 | D2 | S | F | G | D3 | T | |
LW31-20 | 54 | Φ44 | 38 | 25+12n | 32 | Φ9.5 | Φ3.2 | 1.5 | 35 | Φ45 | Φ4.5 | 6 |
LW31-20 | 72 | Φ44 | 38 | 25+12n | 32 | Φ9.5 | Φ3.2 | 1.5 | 58 | Φ45 | Φ4.5 | 6 |
LW31-25 | 72 | Φ59 | 36 | 25+13n | 33 | Φ9.5 | Φ3.2 | 1.5 | 58 | Φ64 | Φ4.5 | 6 |
LW31-25 | 105 | Φ59 | 53 | 23+13n | 33 | Φ9.5 | Φ3.2 | 1.5 | 85 | Φ64 | Φ4.5 | 6 |
LW31-32 | 72 | Φ59 | 36 | 23+18n | 33 | Φ9.5 | Φ3.2 | 1.5 | 58 | Φ64 | Φ4.5 | 6 |
LW31-32 | 105 | Φ59 | 53 | 23+18n | 33 | Φ9.5 | Φ3.2 | 1.5 | 85 | Φ64 | Φ4.5 | 6 |
LW31-50 | 105 | Φ80 | 53 | 34+18n | 46 | Φ13 | Φ5.3 | 3 | 85 | Φ90 | Φ5.5 | 8 |
LW31-75 | 105 | Φ80 | 53 | 34+27n | 46 | Φ13 | Φ5.3 | 3 | 85 | Φ90 | Φ5.5 | 8 |
If you are interested in our company and products, please dont hesitate to contact Ms.Amy Yin
yinamy9@gmail [dot]com AND sikeqd@126 [dot] com
