SC8108 Limit Switch
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SICO | |
| Model Number | SC8108 | Protection Level | IEC 529 class IP65 | |
| Operating Temperature | +5°F to +160°F |
Product Description

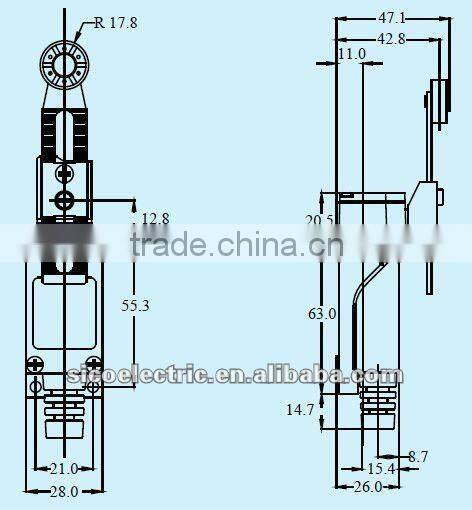

SC8108 limit switch
OF MAX 340g
RF MIX 21g
PT MAX 20
OT MIX 75
DT MAX 10
TT MIX 95
SPECIFICATION
1. FEATURES
1) Wide choice of heads and actuators
2) Variety of operating characteristics
3) Captive cover screws
4) Mode of operation is field adjustable
5) Internal grounding screw
6) Dustproof, Oil-Tight, Water-Resistant
7) Temperature range +5°F to +160°F.
2. RATING
5A : 250 VAC (resistive)
0.4A: 115 VDC (resistive)
3. FIELD ADJUSTABLE
Rotary motion roller lever and rod actuators are adjustable through 360°. They may be set of operation clockwise, counter-clockwise, or in both directions. Operating heads may be positioned in any of four 90°positions.
4. EASY WIRING
1) Loosen cover screws and remove cover.
2) Remove rubbers strain relief from switch cover.
3) Slip strain relief over cable.
4) Fasten terminal screws and grounding screw tightly after Inserting cables or terminal.
5) After wiring,insert strain relief into the groove of the switch cover.
6) Fasten 3 cover screws evenly. Do not over tighten.
7) Recommended cable-#18/3SJT Flexible.
5. CHARATERISTICS
Operating Speed | 0.5mm to 50m/sec |
Operating Frequency | Mechanically: 120 operating s / min. Electrically: 30 operating s / min. |
Contact Resistance | 15 m Ωmax. (initial) |
Insulation Resistance | 100m Ω min, (at 500 VDC) |
Dielectric Strength | 1,000 VAC, 50/60Hz for 1 minute between non-continuous terminals 2,000 VAC, 50/60Hz for 1 minute between each terminal and non-curent carrying metal part and between each terminal and ground. |
Vibration | Malfunction durability : 10 to 55Hz ; 1.5mm double amplitude. |
Shock | Mechanical durability : Approx. 1,000 m/sec2 (approx. 100G’s) Malfunction durability : Approx. 300m/sec2 (approx. 30 G’s) |
Ambient Temperature | Operating : -15°C to + 70°C |
Humidity | 95% RH max |
Service Life | Mechanically : 10,000,000 operations min Electrically : 300,000 operations min |
Degree of Protection | IEC 529 class IP65 |
