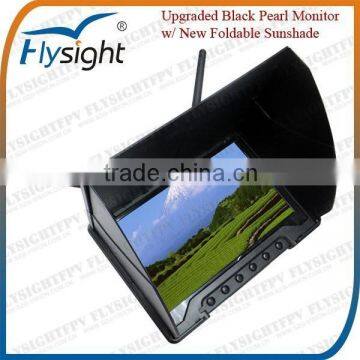

C523 High Brightness No Blue Screen 7" Wireless FPV Monitor With 5.8GHz Receiver

C523 High Brightness No Blue Screen 7" Wireless FPV Monitor with 5.8GHz Receiver

All-in-one fpv monitor category with the Black Pearl 7" diversity monitor.

This little gem features a number of upgrades including a built-in tripod mounting adapter

(for standard camera screws), a fitted sunshade, built-in 5.8GHz receivers with diversity functionality, and a very bright screen that's easy to see in direct sunlight. The Black Pearl operates on 7-28 volts and includes 3S Lipo Battery.

With integrated video and dc outputs, you can also run a pair of video goggles right from

the monitor

This 7” fpv monitor with 5.8ghz diversity receiver 32ch supports Arewave and NexwaveRF.

It can be compable with all 5.8ghz transmitters 32ch, such as Fatshark, Boscam, Immersion RC. It will be not affected by 2.4ghz radio controller.

Features

*High resolution 1024*600, Anti reflective matte screen

*No "blue screen" problem when the signal gets weak

*It is very bright in daylight 400cd/m²

*build-in two 5.8GHz video receivers and a diversity system that will

   automatically select the best video signal

*It is equipped with an efficient rigid sunhood

*photo screw to clamp it on standard system (1 /4 " 20 threads per inch WBS )

*It has video outputs and Dc output to connect and power other equipmen

*A composite video input will allow you to display external sources

*HDMI video input

*Power 7 - 28V and a DC output for powering a pair of video googles

   or other equipment (Dcout = Dc in, MAX 1A)

*Channel selection via button (no more micro switch !)

*Built in speakers to hear the sound ( from your video Tx or video input sources )

*Support image rotation 180 degree

Specification

Product Image

Package content:

1*Main Body

1*Sun Shield

2*Antennas (SMA and RP-SMA for option)

2*AV Cable

2*power Cable

1*Battery

1*Charger (US, UK, European and Australian charger for option)

1* guidbook
