C471 5.8GHz Diversity Receiver 7 inch LCD monitor RC801 black pearl for dji phantom quadcopter
- 3000 Set / Sets per Month
- shenzhen
- Credit Card
You May Like
-
C430 Flysight Wholesale FPV 7 Inch Monitor Diversity Receiver RC801 Black Pearl HDMI Screen for Dji dji phantom 2
-
C386 5.8GHz 7'' Diversity LCD Screen Receiver Monitor RC801 for rc airplane fpv
-
5.8g wireless 40ch flysight black pearl HDMI diversity monitor for rc hobby plane
-
C332 First Personal View System 7 inch HDMI Monitor no Blue Screen with Sun shadow 32ch available RC801 for Drone
-
C732 5.8G Battery Powered 7" HD LCD FPV Monitor No Blue Screen 32CH Dual Receiver for DJI/Boscam/Immersion/Fatshark, OEM welcome
-
C887 5.8G 7inch Diversity 32CH FPV Receiver, No blue Screen Compatiable with Fatshark/Airwave/ImmersionRC
Product Details
Products Status | Stock | Application | Other, outdoor and indoor | |
Screen Size | Other, 7" | Response Time | 3ms | |
Brightness | 400cd/m | Interface Type | HDMI | |
Contrast Ratio | 700:1 | Resolution | Other, 1024*600, 1024*600 | |
Widescreen | No | Panel Type | TFT | |
Brand Name | Flysight | Model Number | RC801 | |
Place of Origin | Guangdong, China |
Product Description
Specifications
1.Adjustable display direction2.Image ZOOM function
3.Resolution: 1024*600
4.Contrast: 700:1

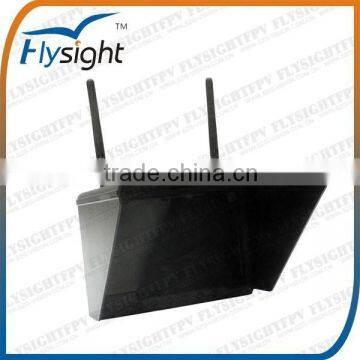

C471 5.8GHz Diversity Receiver 7 inch LCD monitor RC801 black pearl for dji phantom quadcopter
Features:
1. Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching |
2. HDMI input |
3. Image Zoom function |
4. DC out |
5. AV in and AV out |
6. video display direction can be Flip Horizontal,Flip Vertical |
7. 4 Bands and total 32 Channels |
Specification:
Display Screen | Diagonal | 7 inch |
Resolution | 1024X600 | |
Contrast | 700:1 | |
Luminance | 400cd/m² | |
Wireless Receiving | Sensitivity | -90dBm±1dBm |
Channel | 32Channel ( 4 Band X 8 Channel ) | |
Antenna Port | 2 X SMA,50ohm | |
Diversity receiving | Antenna diversity | |
TV System | NTSC/PAL | |
Video output level | 1.0Vp-p Typ,75ohm | |
Audio output level | 1.0Vp-p Typ,10Kohm | |
AV Port | RX1 AV OUT | Video,Audio output |
RX2 AV OUT | Video,Audio output | |
DIV AV OUT | Diversity receiving, Video,Audio output | |
AV IN | Video,Stereo Audio input | |
HDMI IN(A Type) | Support HDMI 1.3 Digital Input, Support HDMI Audio in | |
Built-in Microphone | 8Ω/1W X 2 | |
Power Supply | DC IN | 7~28V/ 2A |
DC OUT | Output Voltage:DC IN or battery voltage Output Current:1A | |
Battery | 11.1V/1000mAh(3 series LiPo cells) | |
Consumption | 12V input:7.8W | |
Dimensions | Main Body | 183X126X19.5mm(not include sun shadow) |
Battery | 105X87.5X6.7 mm(not include prominent part) | |
Weight | Main body | 350g |
Product Image
Package content:
1*Main Body
1*Sun Shield
2*Antennas (SMA and RP-SMA for option)
2*AV Cable
2*power Cable
1*Battery
1*Charger (US, UK, European and Australian charger for option)
1* guidbook
