concrete pump end hose
- Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TS | |
| Model Number | Concrete braided hose ends |
Product Description

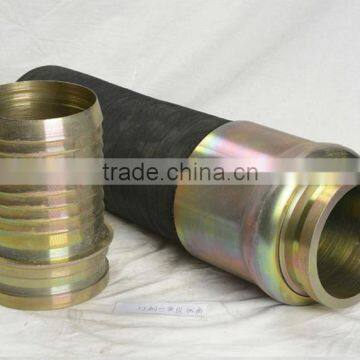

Concrete braided hose ends
There are two kinds of rubber hoses, steel hoses and fabric hoses, available in size 2" to 5", installed in concrete pumps and shotcrete pumps respectively.
.Fabric hose size: 2"-5" Working pressure: 55bar
.Wire braid hose size: 2"-5" Working pressure: 85bar
Steel hose
Spec. | Inner diameter (mm) | Wall thickness tolerance (mm) | Outer diameter (mm) | Working pressure (bar) | Bursting pressure(bar) | Bend radius (mm) | Weight(kg/m) |
2" | 50 | 9±0.75 | 68±1.5 | 85 | 240 | 200 | 2.6 |
2.5" | 64 | 10±0.75 | 85±1.5 | 85 | 240 | 250 | 4.3 |
3" | 76.2 | 12.9±1 | 102±1.5 | 85 | 240 | 270 | 6.1 |
3.5" | 89 | 13.5±1 | 116±1.5 | 85 | 240 | 290 | 8 |
4" | 101.6 | 14.2±1 | 130±1.75 | 85 | 240 | 300 | 9 |
4.5" | 115 | 14±1 | 143±2 | 85 | 240 | 320 | 10.2 |
5" | 127 | 16±1 | 158±2 | 85 | 240 | 360 | 12.5 |
Fabric hose
Spec. | Inner diameter (mm) | Wall thickness tolerance (mm) | Outer diameter (mm) | Working pressure (bar) | Bursting pressure(bar) | Bend radius (mm) | Weight(kg/m) |
2" | 51±0.7 | 11.5±0.7 | 74±1 | 55 | 220 | 200 | 2.8±0.2 |
2.5" | 63.5±0.8 | 12±0.7 | 88±1 | 55 | 220 | 250 | 3.7±0.3 |
3" | 76±1 | 14±1 | 104±1.2 | 55 | 220 | 270 | 4.9±0.4 |
3.5" | 89±1 | 15±1 | 119±1.2 | 55 | 220 | 290 | 5.8±0.4 |
4" | 102±1 | 16 | 135±1.2 | 55 | 220 | 300 | 7.4±0.4 |
4.5" | 114 | 16±1 | 148±1.5 | 55 | 220 | 320 | 8.5±0.5 |
5" | 127±1 | 16±1 | 159±1.5 | 55 | 220 | 360 | 9±0.5 |
Fabric reinforce hose and wire braid hose
- Our hose is the best hose made.
Fabric hose Working pressure: 55bar, Bursting pressure: 220bar
Braided wire hose Working pressure: 85bar, Bursting pressure: 240bar - Available with Metric or Heavy Duty ends or ends for concrete pump or shotcrete pump and available with one or two ends. Our hoses ends are heat treated and externally swaged for long life.
- We may also produce according to your requirements, please feel free to contact us.
Guangzhou Tengshun Concrete Pumping Technology Co., Ltd. is an independent corporation approved by the Administration of Industry and Commerce. Our company is an import & export enterprise which integrates research and development, production and sale. Located in the Northeast of the beautiful Pearl River Delta - Zengcheng, Guangzhou, we are 60km away from the heart of Guangzhou, enjoying very convenient transportation.
We specialize in manufacturing and selling concrete delivery pumps and accessaries. Our main products include 2" - 5" high and low pressure steel pipes, elbow pipes, reducers, 2" - 5" rubber hoses, 2" - 6" precision casted and forged couplings, high manganese steel elbow pipes, hard alloy wearing plates, cutting rings, S pipe rocking valves, concrete pump pistons, hydraulic transfer cylinders, rubber seal elements, PE parts, etc.
