5 inch Rubber End Hose 4mtrs with Flange
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TS | |
| Model Number | TS01 |
Product Description
Specifications

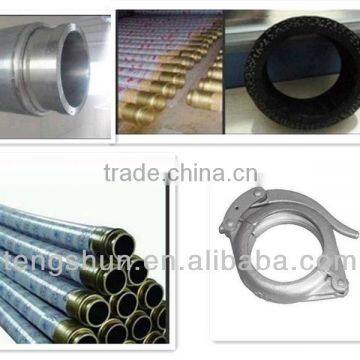

5 inch Rubber End HoseHigh quality rubber hose , steel hoses and fabric hoses, available in size 2" to 6"
Concrete Pump End Hose
There are two kinds of rubber hoses, steel hoses and fabric hoses, available in size 2" to 5", installed in concrete pumps and shotcrete pumps respectively.
- Fabric hose size: 2"-5" Working pressure: 55bar
- Wire braid hose size: 2"-5" Working pressure: 85bar
Steel hose
Spec. | Inner diameter (mm) | Wall thickness tolerance (mm) | Outer diameter (mm) | Working pressure (bar) | Bursting pressure(bar) | Bend radius (mm) | Weight(kg/m) |
2" | 50 | 9±0.75 | 68±1.5 | 85 | 240 | 200 | 2.6 |
2.5" | 64 | 10±0.75 | 85±1.5 | 85 | 240 | 250 | 4.3 |
3" | 76.2 | 12.9±1 | 102±1.5 | 85 | 240 | 270 | 6.1 |
3.5" | 89 | 13.5±1 | 116±1.5 | 85 | 240 | 290 | 8 |
4" | 101.6 | 14.2±1 | 130±1.75 | 85 | 240 | 300 | 9 |
4.5" | 115 | 14±1 | 143±2 | 85 | 240 | 320 | 10.2 |
5" | 127 | 16±1 | 158±2 | 85 | 240 | 360 | 12.5 |
Fabric hose
Spec. | Inner diameter (mm) | Wall thickness tolerance (mm) | Outer diameter (mm) | Working pressure (bar) | Bursting pressure(bar) | Bend radius (mm) | Weight(kg/m) |
2" | 51±0.7 | 11.5±0.7 | 74±1 | 55 | 220 | 200 | 2.8±0.2 |
2.5" | 63.5±0.8 | 12±0.7 | 88±1 | 55 | 220 | 250 | 3.7±0.3 |
3" | 76±1 | 14±1 | 104±1.2 | 55 | 220 | 270 | 4.9±0.4 |
3.5" | 89±1 | 15±1 | 119±1.2 | 55 | 220 | 290 | 5.8±0.4 |
4" | 102±1 | 16 | 135±1.2 | 55 | 220 | 300 | 7.4±0.4 |
4.5" | 114 | 16±1 | 148±1.5 | 55 | 220 | 320 | 8.5±0.5 |
5" | 127±1 | 16±1 | 159±1.5 | 55 | 220 | 360 | 9±0.5 |
Fabric reinforce hose and wire braid hose
- Our hose is the best hose made.
Fabric hose Working pressure: 55bar, Bursting pressure: 220bar
Wire braid hose Working pressure: 85bar, Bursting pressure: 240bar - Available with Metric or Heavy Duty ends or ends for concrete pump or shotcrete pump and available with one or two ends. Our hoses ends are heat treated and externally swaged for long life.
- We may also produce according to your requirements, please feel free to contact us.
