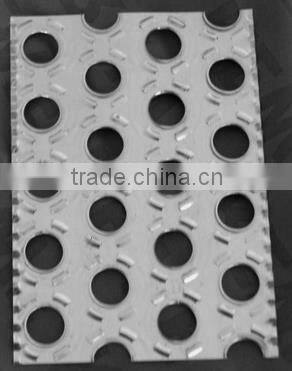

Water to Air Cooling Coil With Copper Tube Aluminum Fin

Model

Air Flow(m3/h)

Windward Tubes

Effective Height
(mm)

Heat Exchange Area

(m2)

Header Tube Diameter
(mm)

Total Heat Load

Water Flow(m3/h)

L×W×H

   (kw)

ZCTL-4

208

4

152

4

φ48×3.5

0.61

0.11

252×228×260

ZCTL-6

468

6

228

8

φ48×3.5

1.38

0.24

328×304×260

ZCTL-8

832

8

304

15

φ48×3.5

2.45

0.42

404×380×260

ZCTL-10

1300

10

380

23

φ48×3.5

3.82

0.66

480×456×260

ZCTL-12

1871

12

456

33

φ48×3.5

5.51

0.95

556×532×260

ZCTL-14

2547

14

532

45

φ61×4

7.49

1.29

632×608×260

ZCTL-16

3327

16

608

58

φ61×4

9.79

1.68

708×684×260

ZCTL-18

4211

18

684

74

φ76×4

12.39

2.13

784×760×260

ZCTL-20

5198

20

760

91

φ76×4

15.30

2.63

860×836×260

ZCTL-22

6290

22

836

110

φ76×4

18.51

3.18

936×912×260

ZCTL-24

7486

24

912

131

φ76×4

22.03

3.79

1012×988×260

ZCTL-26

8785

26

988

154

φ76×4

25.85

4.45

1088×1064×260

ZCTL-28

10189

28

1064

179

φ76×4

29.98

5.16

1164×1140×260

ZCTL-30

11696

30

1140

205

φ89×4.5

34.42

5.92

1240×1216×280

ZCTL-32

13308

32

1216

234

φ89×4.5

39.16

6.73

1316×1292×280

ZCTL-34

15023

34

1292

264

φ89×4.5

44.21

7.60

1392×1368×280

ZCTL-36

16843

36

1368

296

φ89×4.5

49.56

8.52

1468×1444×280

ZCTL-38

18766

38

1444

330

φ108×4.5

55.22

9.50

1544×1520×280

ZCTL-40

20794

40

1520

365

φ108×4.5

61.18

10.52

1620×1596×280

ZCTL-42

22925

42

1596

403

φ108×4.5

67.45

11.60

1696×1672×280

ZCTL-44

25160

44

1672

442

φ108×4.5

74.03

12.73

1772×1748×280

ZCTL-46

27500

46

1748

483

φ108×4.5

80.92

13.91

1848×1824×280
