China High Quality Finned Tube Radiator Design

FOB Price

US$ 650 - 3,500 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	Quanbang	Model Number	YCCL
Structure	Tube Heat Exchanger	Liquid Flow Rate	customized
Maximum Working Pressure	2.5 MPa
Weight	customized	Dimension(LWH)	customized
Certification	Other, TUV
Warranty	1 year	After-sales Service Provided	No overseas service provided

Packaging Details

Customized Packaging

Product Description

China high quality finned tube radiator design

This kind of heat exchangers are to use steam, conduction oil and hot water etc. to radiate the heat to air to the required temperature. Mainly applied in Chemical Industry, Cereals and Oil Industry, Feed Processing Industry and so on.

Product Description

Type: Compact Heat Exchanger

Heating source: low/medium pressure steam (0.3-2.5MPa); conduction oil; hot water

Pressure-bearing: high

Heat transfer Function: medium level

Material feature: carbon steel tube with extruded aluminum fin, outer frame spray painted.

Array: staggered arrangement

Fin Shape:

Performance Parameter

Model	Air Flow(m3/h)	Windward Tubes	EFCTV. Height(mm)	HX. Area (m2)	Header Tube Diameter (mm)	Heat Load(kw)			L×W×H (mm)
Model	Air Flow(m3/h)	Windward Tubes	EFCTV. Height(mm)	HX. Area (m2)	Header Tube Diameter (mm)	Steam	CNDT. Oil	Hot Water	L×W×H (mm)
YCCL-14×6×0.5	5000	14	575	47	φ57×3.5	156	104	69	900×600×679
YCCL-15×6×0.8	8000	15	823	72	φ76×4	249	166	111	1000×600×923
YCCL-17×6×0.9	10000	17	926	92	φ76×4	312	208	138	1100×600×1026
YCCL-20×6×1.1	15000	20	1157	135	φ89×4.5	467	312	208	1300×600×1257
YCCL-22×6×1.2	18000	22	1282	164	φ89×4.5	561	374	249	1400×600×1382
YCCL-24×6×1.3	20000	24	1323	185	φ89×4.5	623	415	277	1500×600×1423
YCCL-27×6×1.4	25000	27	1447	227	φ114×6	779	519	346	1700×600×1547
YCCL-29×6×1.5	28000	29	1525	257	φ114×6	872	582	388	1800×600×1625
YCCL-29×6×1.6	30000	29	1634	276	φ114×6	935	623	415	1800×600×1734

Packaging & Shipping

Packaging according to custmer's requirement

Shipping Port: Shanghai

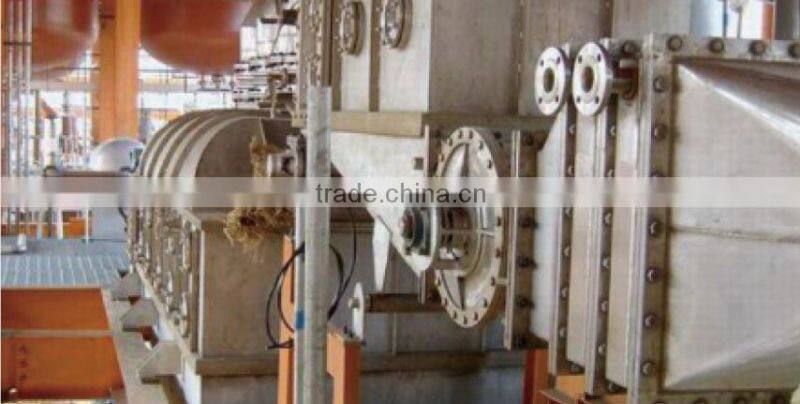

Application Field

Applied in Drying Installations, Food Processing and Chemical Industry etc.

ISO Certificate

Company Profile

Wuxi Quanbang Energy Technology Co., Ltd.

Wuxi Quanbang Energy Technology CO.,LTD is a technology enterprise dedicated in heat exchanges industry which has many years professional experience of design and manufacture. Our products are wildly applied in cereals and oil processing, chemical production and boiler etc. We have risen steadily as one of the pioneers and leaders in this industry in china.
