Home > Products > solar battery > Long Life AGM GEL Battery 12v 150Ah Solar Battery for Solar Inverter

Long Life AGM GEL Battery 12v 150Ah Solar Battery for Solar Inverter

FOB Price

US$ 1 - 200 / Piece

50 Pieces(Min. Order)

Port Guangzhou
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	Fortune Power
Model Number	NP12-150	Usage	Other, Solar&Wind System,UPS,Power System,Telecomunication System,Lighting
Voltage	Other, 12v	Sealed Type	Sealed
Maintenance Type	Free	Size	484171241mm
Weight	42KG, 42kg	Nominal Capacity	150AH

Product Description

Specifications Of VRLA seal battery for solar 12V150AH :
Nominal Voltage		12V
Rated Capacity (10 hour rate)		150AH
Size (LengthWidthHeight*Total Height)		484170240*240MM
Weight Approx		42.5KG
Capacity 25°C (77°F)	10 Hour Rate(9.0A)	150AH
	5 Hour Rate(14.4A)	120AH
	1 Hour Rate(54.0A)	90AH
	1.5 Hour Discharge To 10.5V	60A
Internal Resistance	Full Charged Battery at 25°C(77°F)	3.8mΩ
Capacity Affected By Temperature (10 Hour Rate)	40°C(104°F)	102%
	25°C(77°F)	100%
	0°C(32°F)	85%
	-15°C(5°F)	65%
Self-Discharge at 25°C (77°F)	Capacity after 3 Month Storage	91%
	Capacity after 6 Month Storage	82%
	Capacity after 12 Month Storage	64%
Terminal		T11
Cycle Charge (Constant Voltage)	Initial Charging Current Less Than 60A
	Voltage 14.10-14.40V
Float Charge (Constant Voltage)	Voltage 13.50-13.80V
Warranty	3 Years
OEM Service	Accept
Color	Black, Gray,white
Container Material	UL94HB And UL 94V-0 ABS Plastic
Certificate	CE; UL; ISO9001; ISO14001; TLC; Solar Product Certificate

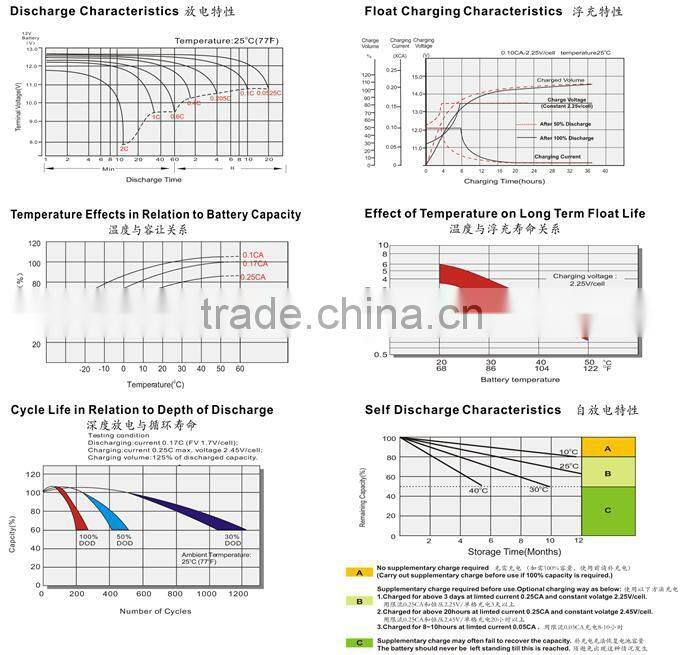

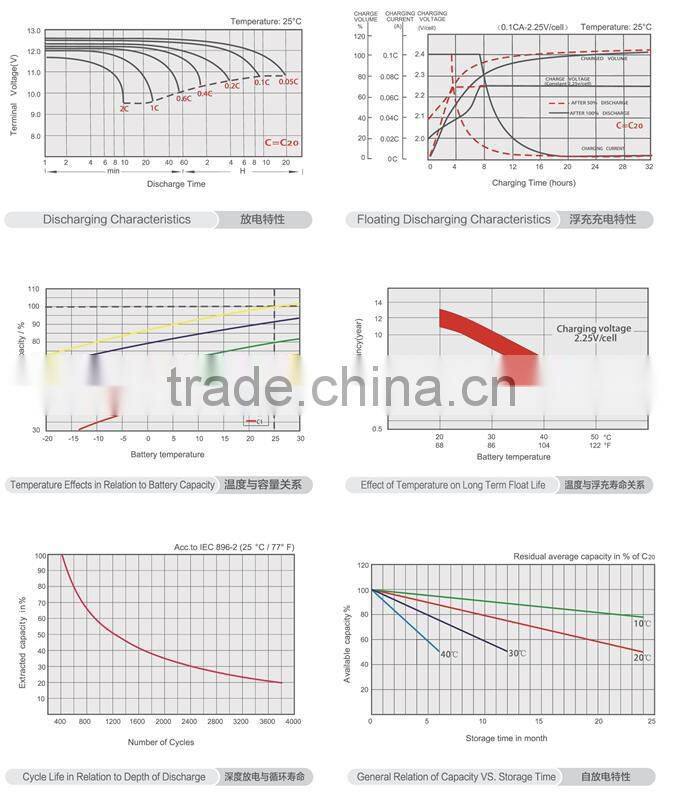

Battery Datas:

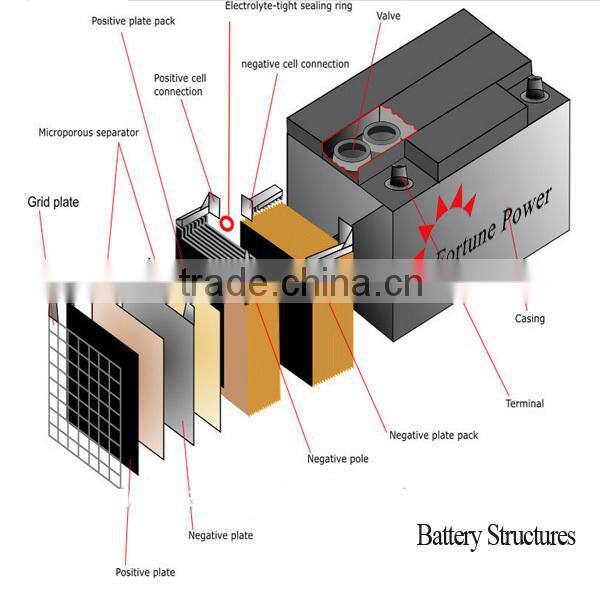

Our Material Advantage:

1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic.
2) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3) High quality AGM separator
4) Positive plates: PbCa grids minimize corrosion and prolong life.
5) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly.
6) Vent Valve: Allows the release of the excess gas automatically for safety.

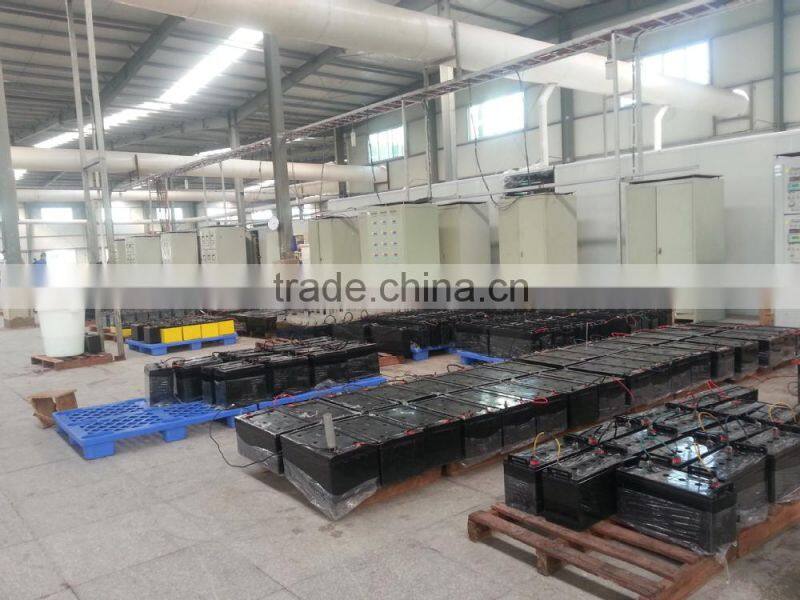

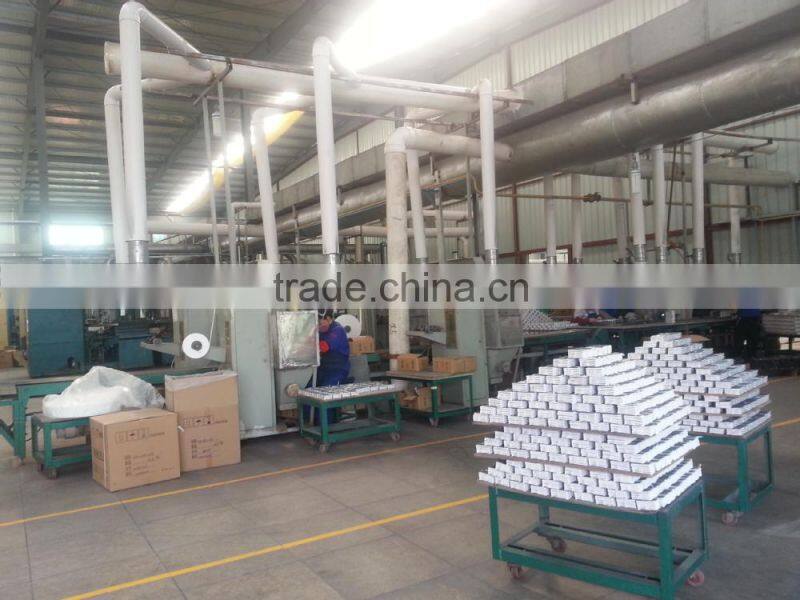

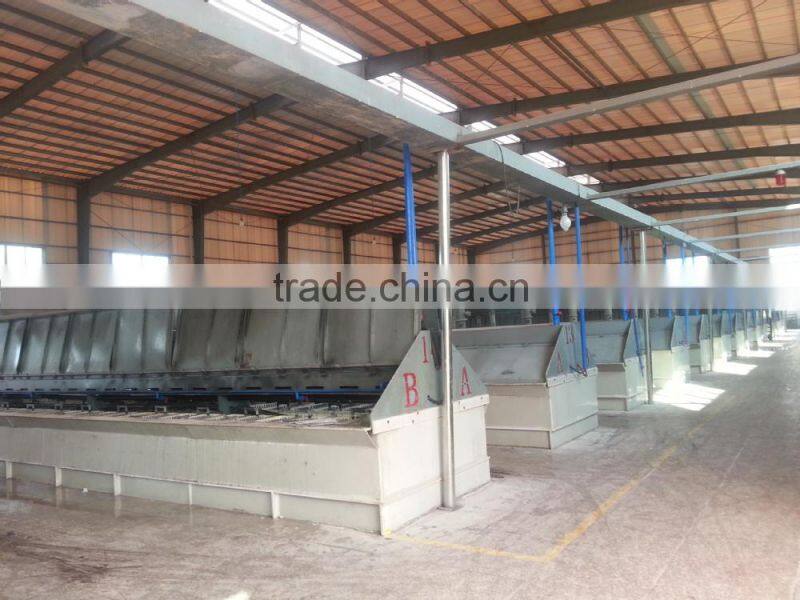

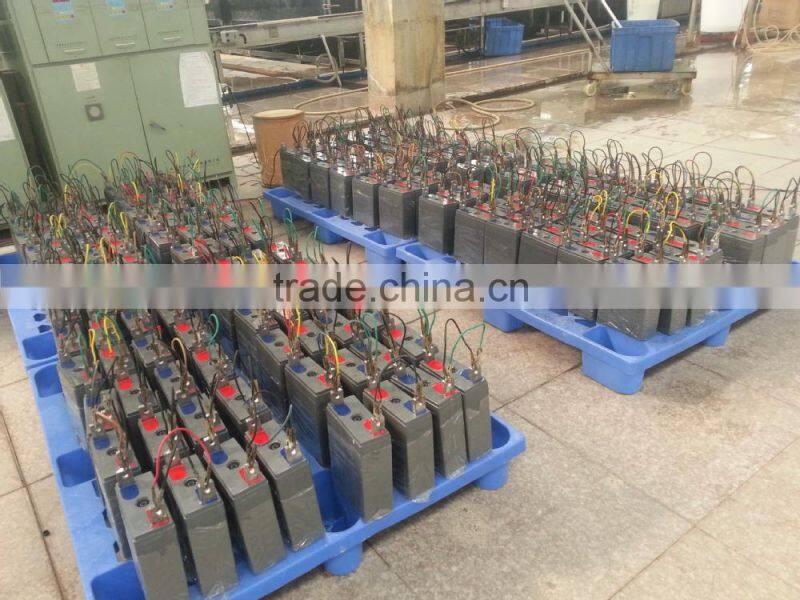

Fortune Power Battery Production Progress

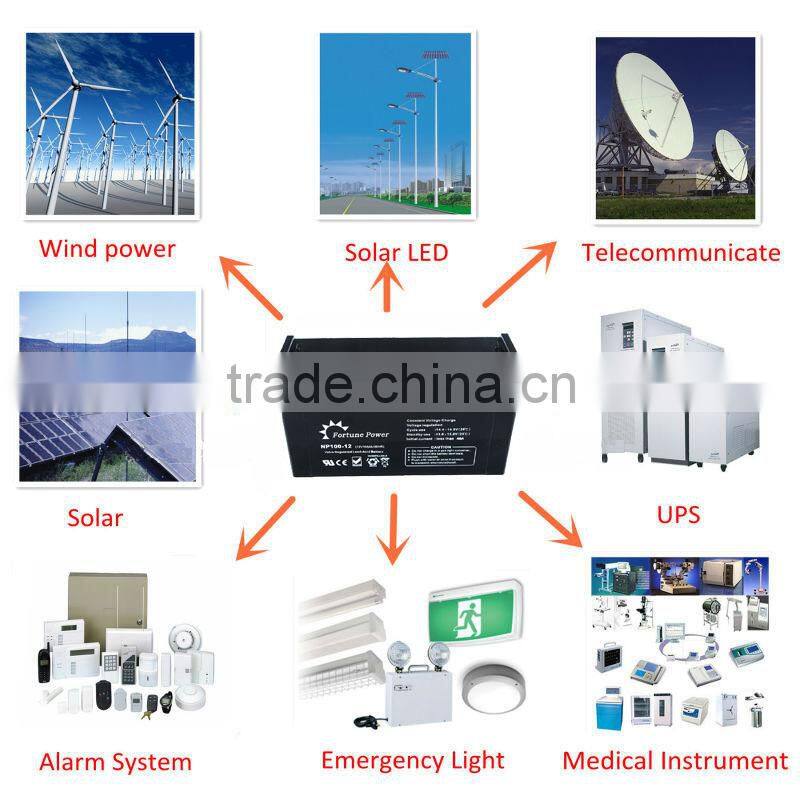

Product Application

Mainly applied for:

1.Solar power system(off-grid solar power system, solar street light system, solar garden light system)

2.Wind Power System

2. UPS and computer backup power

3. telecommunication system

4. Power station System

5. Railway System

6. Emergency lighting system

7. Automatic control system

8. Alarm system for fire protection, security

Storage and installation:

1.Fortune Power battery is not in use should remove the cable, pole jacket cover and wipe clean;

2.once every three months for Fortune Power battery to maintain charging, constant voltage charging method for limiting law, the initial charging current is 0.1CA, the charging voltage is 2.4V / single cell (25 ℃ when);
3.Fortune Power battery should be stored in dry and ventilated place, away from direct sunlight and away from heat sources;
4.when handling batteries even force, the force of the housing portion of the battery to avoid damage to the pole;
5.the installation should use insulated tools to prevent click.

Solar Battery Types

Battery Type	Nominal Voltage(V)	10h rate capacity(ah)	dimension				Weight(kg)
Battery Type	Nominal Voltage(V)	10h rate capacity(ah)	Length	Width	Height	Total height	Weight(kg)
12-17	12	17	181	76	167	167	5.5
12-24	12	24	166	125	175	125	8.5
12-38	12	38	198	166	175	175	13
12-65	12	65	350	166	175	175	21
12-80	12	90	330	172	238	240	27
12-100	12	100	405	175	230	230	30
12-120	12	120	405	175	230	230	31
12-150	12	150	483	170	239	239	42
12-200	12	200	522	240	242	242	55

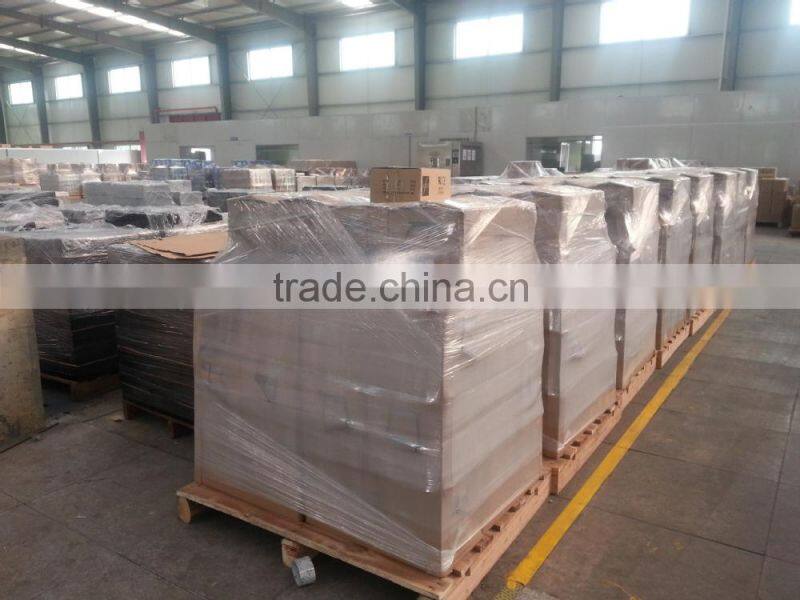

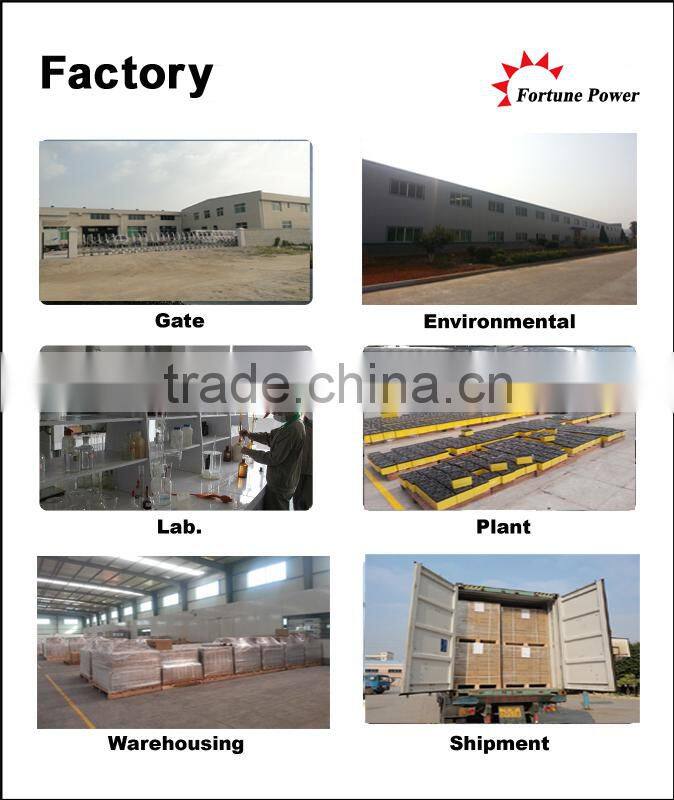

Fortune Power Battery Factory Informations

Fortune Power Battery Certificates

FAQ

Q1. Are you the manufacturer?

Yes, we are the leading manufacturers in Guangzhou.

Q2. What kinds of battery do you have?

We have AGM Battery, GEL Battery, UPS Battery, Solar Battery, Lead Acid Battery…

Q3. What is your product series range?

12V 1.2Ah-250Ah

6V 1.2Ah-220Ah

2V 100Ah-3000Ah

Q5.What is your products advantage?

We produce lead plates by ourselves, we control the quality strictly. Offer you excellent quality with reasonable price and good service.

Q6. What is your battery life cycle?

Life cycle is connecting with discharge depth of discharge(DOD)

If 30% DOD,1500 cycle times,

If 50% DOD,700 cycle times,

If 100% DOD,300 cycle times.

Q7.How about the warranty of your products?

3 years warranty since shipping day.

Q8.Do you offer samples for testing?

Yes, we offer free samples for testing, but the clients need pay the freight.

Q9.Is it available for OEM service?

Yes, registered brands from reliable client are available.

Q10.What certificates do you have?

We have CE,ISO,SGS,UL,CQC certificates.
