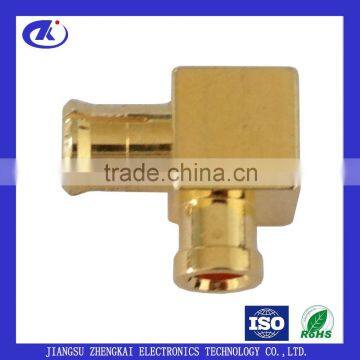

RF Coaxial MCX Male Right Angle Connector

FOB Price

US$ 1.2 - 1.32 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electrical Requirements
Impedance	50Ω
Frequency	DC-6 GHz
Withstand Voltage(at Sea Level)	750V,50Hz
Working Voltage(at Sea Level)	170V,50Hz
Insulation Resistance	≥ 1000MΩ
Sheltered Effectiveness	straight 70 dB,1GHz
Contact Resistance	Center Conductor		≤5mΩ
	Outer Conductor		≤2.5mΩ
Mechanical Requirements
Center Conductor Retention	0.27N(standard retention)
Outer Conductor Retention	78.5N
Vibration	98m/S²,10-500Hz,10g_nAcceleration
Durability	500cycles
Environmental Requirements
Temp.Range	-55°C - +155°C
Salt Spray	48h spray
Material
Body	Brass
Center Conductor	Plug	Brass
	Jack	Beryllium Copper
Outer Conductor	Brass/Beryllium Copper
Crimp Tube	Brass/Red Copper
Other Metal	Brass
Insulator	PTFE
Sealing Ring	Silicone Rubber
Surface Treatment
Body	Gold
Center Conductor	Gold
Outer Conductor	Gold
Other Metal	Gold

Metal Workshop

Assembly Workshop

Assembly workshop and professional team;

Test Area

Quality: We use the best quality components to ensure the standard of our

product range is of the highest caliber

All products we sold out are strictly selected and tested by our QC department

Packing Area
