Home > Products > Metal Processing Machinery > light steel stud roll forming machine

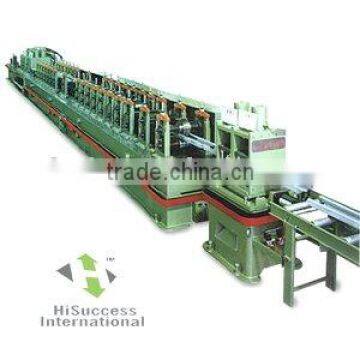

light steel stud roll forming machine
- 2 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Place of Origin | Shanghai, China | Brand Name | HiSuccess International | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Technical parameters:
1. Roll stand: 20 stations
2. Power supply: 23.5kw, 380V, 50HZ
3. Main motor power: 15KW,it adopts cycloid cone pulley reducer, chain transmission
4. Hydraulic station power: 5kw, 7.5Mpa
5. Material of roller: 45# wrought steel, chromeplated
6. Quenching hardness of roller: HRC580-620
7. Speed: 5~15m/min
8. Quenching deepness of roller: 5mm
9. Method of quenching: salt bath furnace whole quenching
10. Principal axis of roller: high-grade 40Cr
11. Diameter of roller axes: Φ80mm
12. Heat treatment way of roller: salt bath furnace whole quenching
13. The surface of roller adopt finished polishing, the roughness is 0.5um
14. PLC control system, OMRON (Japan)
15. Dimension: Length X width X height=9660mmX2440mmX2600mm
16. Weight: 11T
