Steel Deck Roll Forming Machine
- Shanghai
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | HiSuccess | Model Number | HIM-Roll Forming | |
| Machine Type | Roll Forming Machine | Raw Material | Sheet / Plate Rolling | |
| Material / Metal Processed | Stainless Steel | Power | Hydraulic | |
| Automation | Automatic | Extra Services | Cut To Length | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

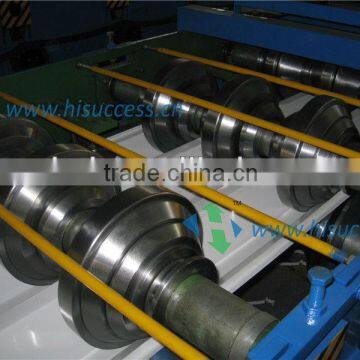

Steel Deck Roll Forming Machine
Brief Introduction
Roll Forming Machine can produce many kinds of high quality and good-looking metal products, such as C/Z purlines, Wall and Roof panel, Glazed tile, Floor deck, Door frame, High-way Guard-rail, Down pipe and so on. This machine is full-automatically controlled by PLC system and has beautiful appearance and strong structure. We can design and manufacture any kind of Roll Forming Machine according to the customer’s requirements.
Main Configuration
Uncoiler / Leveling Organ / Forming Machine / Hydraulic Cutter / PLC Control System / Run-out Table
C and Z Roll Forming Machine
The C and Z Roll Forming Machine can produce different specifications of C and Z purline by adjusting the positions of the rollers. One machine can produce 5 dimensions of products according to customer’s requirements. The product is widely used in steel construction project.
Main Parameters
ITEM | C Purline Machine | Z Purline Machine |
Total Power, kw | 15 | 15 |
Roll Station | 18 | 16 |
Thickness, mm | 1~3 | 1~3 |
Speed, m/min | 3~8 | 3~8 |
Diameter of the Shaft, mm | Ø80 | Ø80 |
Control System | PLC | PLC |
Weight, mt | ≈11 | ≈10 |
Dimension (LxWxH), m3 | 11x0.8x1.3 | 10 x 0.8 x 1.3 |
Layout
Glazed Tile Roll Forming Machine
Different Glazed Tile Roll Forming Machines can produce different kinds of metal tiles. The tiles are widely used in construction and building, such as residential building, super market, cold house, factory and so on.
Main Parameters
ITEM | HIM-RF-760 | HIM-RF-828 |
Main Machine Power, kw | 7.5 | 7.5 |
Hydraulic Station Power, kw | 3 | 3 |
Roll station | 18 | 16 |
Thickness, mm | 0.4~0.6 | 0.4~0.6 |
Speed, m/min | 2~3 | 2~3 |
Uncoil Width, mm | 1250 | 1250 |
Control System | PLC | PLC |
Total Weight, mt | ≈11 | ≈11 |
Dimension (LxWxH), m3 | 11.5x1.2x1.3 | 10.5x1.4x1.3 |
