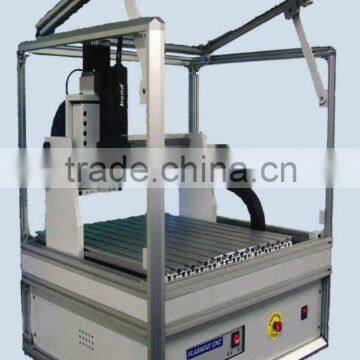

Model 1 CNC Milling Machine

Specifications

The machine is supplied as standard fully guarded with a wide up and over door which has an electrical interlock for user safety and emergency cut out switch. With USB connection the machine is connected to a personal computer or laptop, and is operated using the versatile but user friendly Windows  Flashcut CNC PC software. The 8000- 34000rpm spindle is capable of cutting materials in 3 dimensional, simultaneous motions. Pre-written CNC programs are available direct from Ray-Ran for any shape or size of test sample to any International test standard, eliminating the need for CAD trained operators.

For the advanced user, the system has been designed to accept industry standard G & M codes ensuring full compatibility with leading professional computer aided design software. Unlimited part program size capability allows files to be run as large as your computer's hard drive will allow.
No previous CNC programming experience is required as 2 dimensional CAD drawings in .dxf drawing file format can be imported into the Flashcut software. Once required parameters have been entered, Flashcut automatically generates the G-Code program to machine the sample.

This appartus has been designed to complement the Ray-Ran test sample injection moulding apparatus and the Ray-Ran range of test sample cutting products, For the production of test sample from sheet material up to 25mm thick

Features include
300 mm x 260 mm x 80 mm XYZ axis, 500 mm x 440 mm table size, Variable spindle speeds from 8,000 rpm to 32,000 rpm, Optional Tool Changing System available, Small footprint design for desktop or bench mounting, Totally enclosed safety cabinet for user protection, Emergency Stop Button, Single line and continuous run modes with manual feed rate override, Computer interface with cabling and Windows  Flashcut CNC PC software, Drop down menus with graphical display 3 Dimensional graphical tool path preview, Low cost CNC programs available to any International test standard, Set of 3 Carbide milling cutters, Vice and clamps, Uses industry standard G & M codes  Product user manual, CE declaration of conformity, 1 year return to base manufacturer's warranty.

Test Description
A 3 Axis CNC Milling Machine ideal for machining test samples and small 2 dimensional components too thick for a cutting out with a press and profile cutter

Ray-Ran can provide pre-written programs.

Part Numbers
RR/CNC model 1.
