SY-067 Ballast Terminal Block Connector
- fob:ningbo
- T/T
You May Like
-
SY-074CA Electrical Equipment & Supplies Connector 150 Degree Terminal Block
-
Electrical Equipment & SuppliesTerminal Block with 8 Way
-
SY Electrical Equipment & Supplies Terminal Block
-
Sineyi-108 Yuyao 2014 new U type CA8F Terminal block
-
SY-107 European specifications Terminal terminal block connector
-
Sineyi-104 EU Standard 5 poles Fused Terminal
Product Details
| Place of Origin | Zhejiang, China | Brand Name | sineyi | |
| Model Number | pa11 | Number of Contacts | 1 - 10 | |
| Type | Screw |
Product Description
Specifications
lvory ballast terminal block Materials:Housing: polyamide 66,lvory,UL94V-2
Insert:steel,zinc plated
Iscrew:M3*7,zinc plated
SY-067 Ballast Terminal Block Connector
1ballast terminal blockFeatures
2.dual conductors
3.screw/push-in combined
4.easy insertion and removal
5.test slot provide
6.chassis mounting
7.choice of 2 or 3 poles
Product Specification
| Current: | 12A |
| Voltage: | 450V(VDE/FI/CQC);300V(UL) |
| Wire Range | push-in side--0.5-1.5mSolid |
| 20-16 Solid AWG | |
| Screw Side---2.5mRigid/Flexible | |
| 18-14 solid AWG | |
| Strip Length | 8-9 mm/ 0.32-0.36 in |
| temperature | -40 to 110(VDE/FI/CQC) 105(UL) |
| Pin Spacing | 10mm |
| Housing: Poly amide 66 | UL 94V2 |
| Insert:Steel,zinc plated | Screw:M3×7,zinc plated |

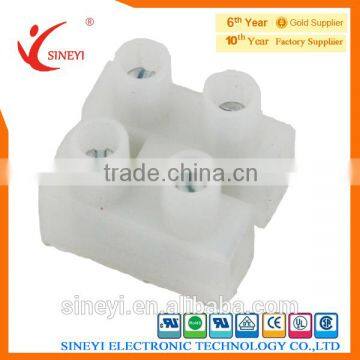

SY-067 Ballast Terminal Block Connector Photos
Shipping
We cooperated with local fedex, dhl, ups, tnt,ems, and got more than 50% discount, help you save the shipping cost, and let you receive it in 3 to 10 days.
Yuyao Sineyi Electronic Technology Factory
--- More than 10 years electronic industry manufacturers
More about us
Trust and Certificates
Why choose us :
1. Sineyi CO.,LTD is a professional manufacturer and exporter of cable glands, cable connector,etc wiring accessories. We have advanced production equipment, abundant technical force.
2. Sineyi quality is first in China(Mainland). Our quality of cable gland is same as AVC Corp( Tainwan).
3. Sineyi engineer team have at least 15 years experience to develop new mold every month.
4.Sineyi size and type of cable gland is most complete in China to satisfy different cable range.
5. Sineyi develop new products every year to keep the competitiveness in the market
If you interested in our SY-067 Ballast Terminal Block Connector
Please inquiry to me~
