Home > Products > SINEYI SAMPLES > Fused Terminal block- Euro-standard
Fused Terminal block- Euro-standard
USD $1 - $1.1
/ Piece
10000 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- FOB:Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | sineyi | |
| Model Number | 15A | Number of Contacts | 31 - 40 | |
| Conductor Size | 11 - 20 AWG | Type | Fuse Block |
Product Description
Specifications

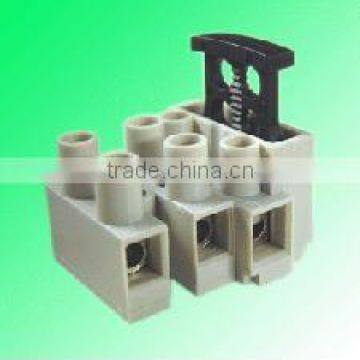

Fused Terminal - Euro-standardwith fuse-carrier
Dovetail for different terminal combinations
For 5x20 mm fuse
Yuyao Sineyi Electronic Technology Factory
--- More than 10 years electronic industry manufacturers
| Technical Data of Fused Terminal - Euro-standard | ||
| Housing | Polyamide 6/6 | |
| 94V-2 grade | ||
| Insert | brass, nickel plated | |
| Wire protector | stainless steel | |
| Screw | M3x6, yellow chromated | |
| Earth screw | M3x14, yellow chromated | |
| Voltage / Ampere (IEC) | ||
| terminal strip | 400V / 15A | |
| fuse carrier | 250V / 6.3A | |
| Voltage / Ampere (UL) | ||
| terminal strip | 200V / 15A | |
| fuse carrier | 200V / 10A | |
| Temperature | ||
| working | -40oC to 100oC | |
| short period | 140oC | |
| Cross section | 2.5mm2 | |
| AWG | 14 | |
| Packing | ||
| 540-1WP | 100x10 per ctn | |
| 540-2WP | 70x10 per ctn | |
| 540-3WP / 3GWP | 50x10 per ctn | |
| 540-4WP / 4GWP | 40x10 per ctn | |
| 540-5WP / 5GWP | 40x10 per ctn | |
Anti-rotation spigot as option
1,2,3,4 and 5 poles available
Earth-screw option IP 20 finger protection
---> Pls feel free contact us get more details and quotation,
we usually reply you in 10mins in the work time.
