Steel Sheet Metal Cutting Fiber Laser 500W 100W 2000W
- Shanghai or as your requirements
- Money Gram
You May Like
-
High Precision IPG 2000w Metal Cutting Fiber Lasers for Steel Plate
-
Fiber Laser Cutting 316 Stainless Steel Cnc Machines
-
IPG 1KW Fiber Laser Machine Cutting Metal Sheet/Tube
-
YAG 500W 850W 1300W CNC Laser Cutting Machine Metal for Signs,MS
-
500W 850W 1300W YAG Laser Cutting Metal Letter Signs and Sheet Metal
-
YAG CNC Laser Cutter Metal Signage and Sheet Metal
Product Details
| Condition | New | Laser Type | Other, Fiber Laser, IPG Fiber laser / Coherent fiber laser | |
| Cutting Thickness | 12mm metal | Cutting Area | 1500mm * 3000mm | |
| Cutting Speed | adjustable | CNC or Not | Yes | |
| Cooling Mode | Water Cooling | Control Software | Golden Laser Original Software | |
| Graphic Format Supported | AI, PLT, DXF, BMP, DST, DWG, LAS, DXP | Place of Origin | Hubei, China | |
| Brand Name | Golden Laser | Model Number | XJG-150300DTB | |
| Certification | CE, ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
sheet metal cutting fiber laser1.IPG/Coherent laser
2.Power 300w 500w 1kw 2kw
2.Fixed/Pallet Working Table
3.CE
Steel Sheet Metal Cutting Fiber Laser 500W 100W 2000W
Advantages of Fiber Laser Cutting Steel Sheet Metal
- High Efficiency High quality cutting system
- Long lasting life time (100,000 hours) of the laser module. (IPG/Coherent/Raycus laser source)
- Small heat affected zones create narrow cutting “kerf”, have the ability to cut most complex design and create sharp corner.
- Lowest maintenance cost & energy-consumption.
Golden Laser - Laser Cutting Machine Series
- Fiber Laser Cutting 1mm Brass Sheet: http://youtu.be/BoRGSCjNszs
- Fiber Laser Cutting 2mm Aluminum: http://youtu.be/BoRGSCjNszs
- Fiber Laser Cutting 3mm Stainless Steel: http://youtu.be/KqAz3e2mL-0
- Fiber Laser Cutting 5mm Mild Steel: http://youtu.be/Gx0kpAdZYNs
- Fiber Laser Cutting 10mm Carbon Steel: http://youtu.be/6VHiBKFEJHs
- 500watt Fiber Laser Cutting Machine: http://youtu.be/YP8jvR1w2Gc
- 1000W Fiber Laser Cutting Machine : http://youtu.be/uaOr4Kspm-w
- 2000W Fiber Laser Cutting Machine : http://youtu.be/WALwFCrZxHo
- 3000W Fiber Laser Cutting Machine: http://youtu.be/stjyoxNWupY
- YAG 500W Metal Laser Cutting Machine : http://youtu.be/OEitXJ37RUI
- YAG 650W Metal Laser Cutting Machine : http://youtu.be/1v4_dPme4Y4
- YAG 800W Metal Laser Cutting Machine : http://youtu.be/wce5CbpiS2o
- Metal Pipe / Sheet Laser Cutting Machine: http://youtu.be/XdgpeESOsDs

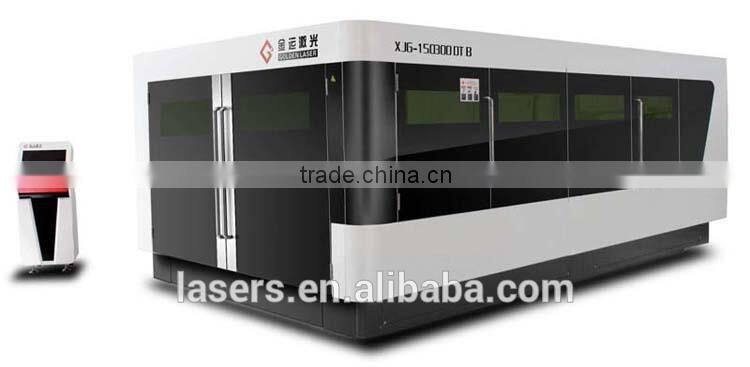

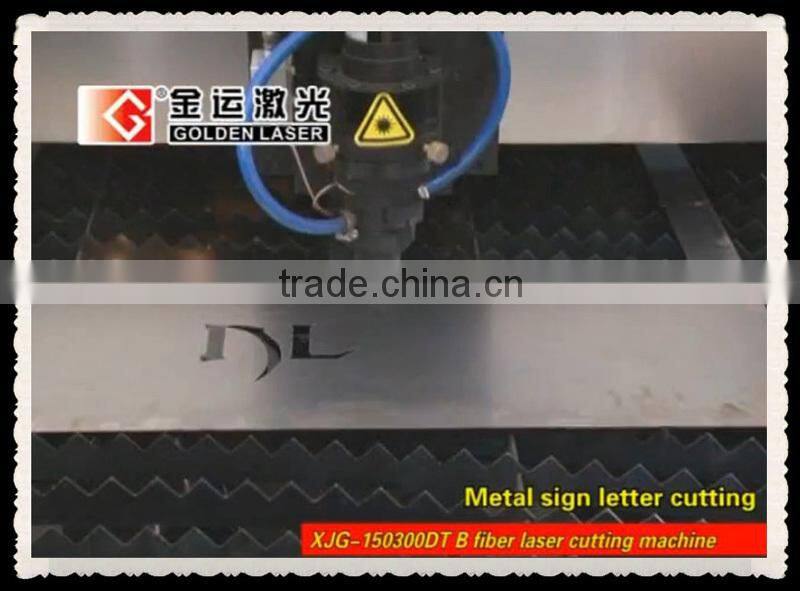

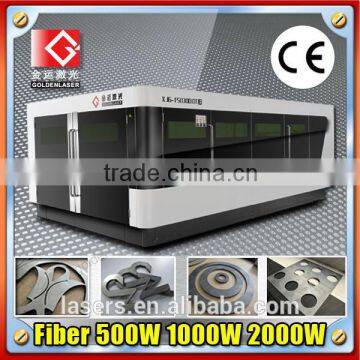

Recommend Model XJG-150300DT B Fiber Laser Metal Cutting Machine

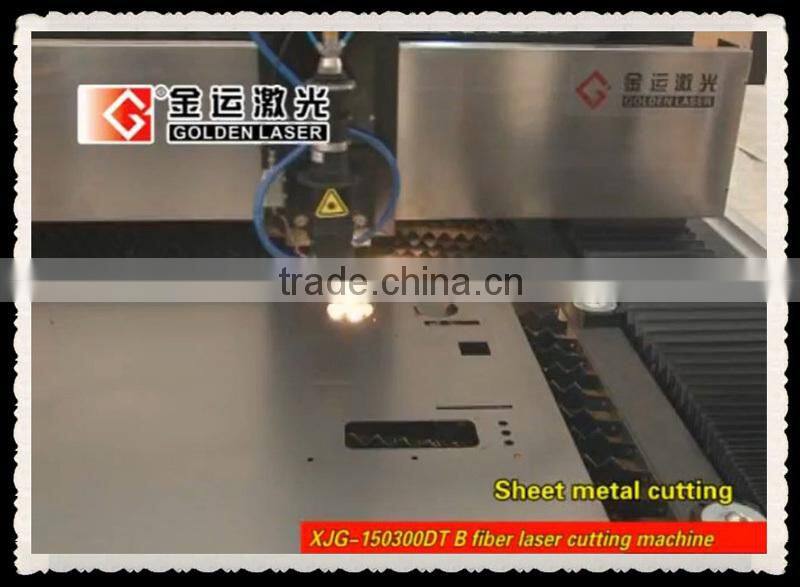

Laser Cutting Machine Detail Photos

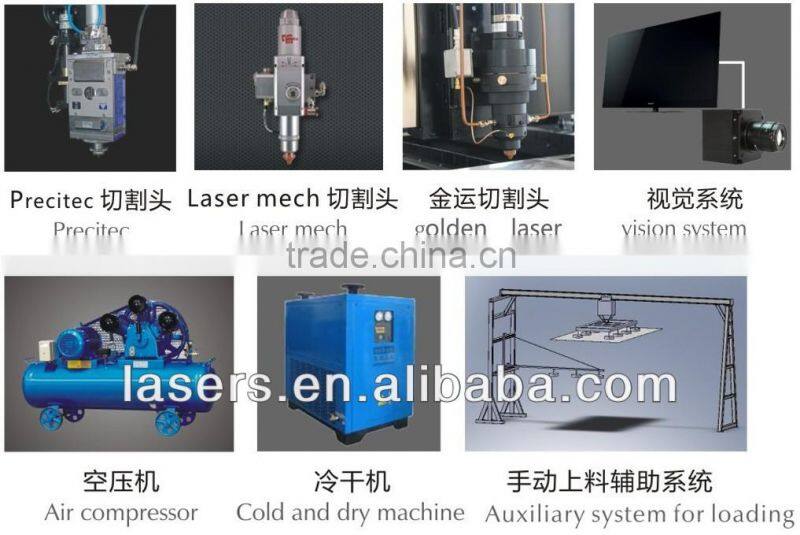

Laser Cutting Machine Collocations

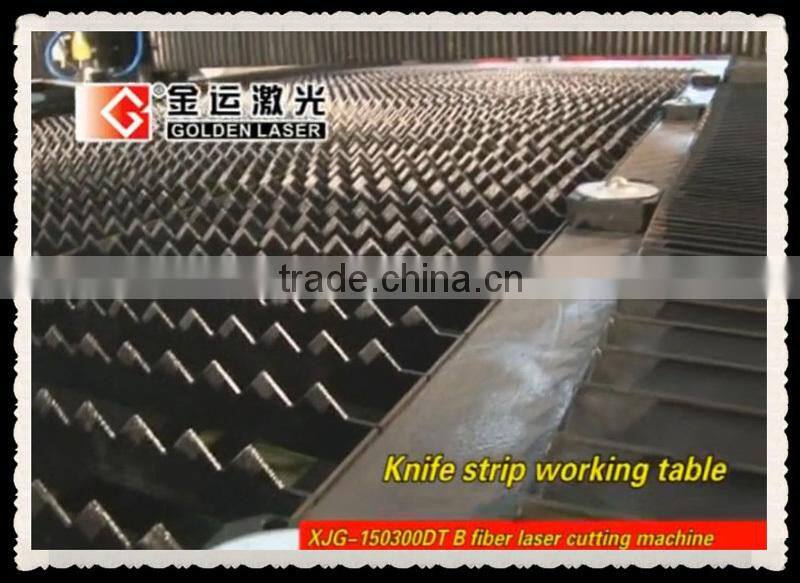

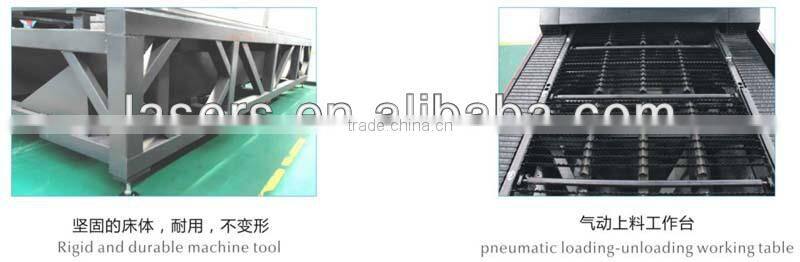

Laser Cutting Machine More Detail Photos
Laser Cutting Machine Main Feature

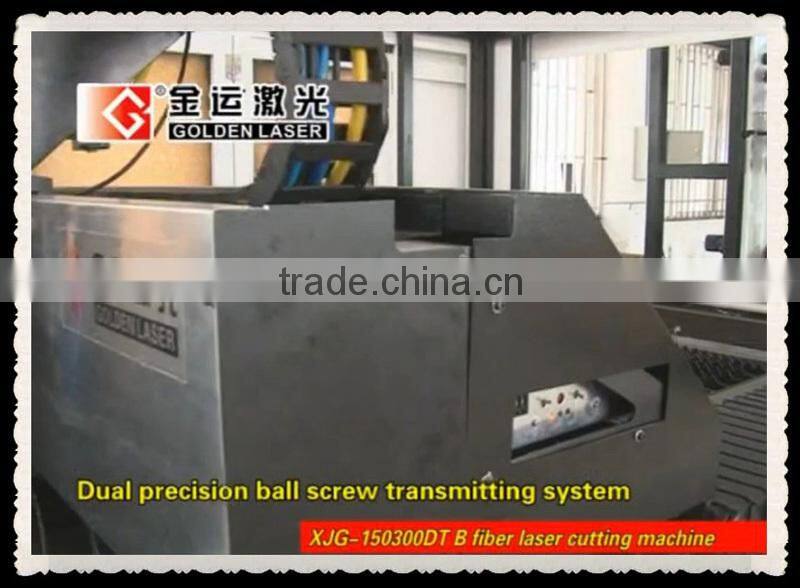

- The double ball screw closed-loop system and imported open CNC system enable high processing accuracy and high working efficiency during high speed cutting.
- Standard collocation of 500W fiber laser generator and optional 300W-2000W fiber laser generator realize low operation and maintenance cost and maximum long-term investment returns and profits.
- Enclosure design meets CE standard which realizes reliable and safe processing. Shuttle table/pallet working table is convenient for material uploading and unloading and further promotes working efficiency.
- Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.
- Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.
- Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.2000mm×4000mm,2000mm×6000mm
- Optimized optical lens, specially designed nozzle and sensor technology realize smoother and more stable cutting. Optional collocation of 2000mm×4000mm, 2000mm×6000mm working table.
Laser Cutting Machine Main Technical Parameter
Laser types | Fiber laser generator |
Cutting area(mm*mm) | 1500×3000/2000×4000/2000×6000 |
Control system | PMAC full-closed loop servo control |
Y axis driving mode | Double ball screw driving/Double gear rack driving |
Cooling system | High precision constant temperature water chiller |
Laser head(standard/ optional) | Golden Laser |
Power supply(standard/ optional) | 220V/380V |
Floor space | 5.8m×3.3m (shuttle working table) |
Laser power w(standard/ optional) | 1000/300-2000W |
Working table structure (standard/ optional) | Fixed /pallet working table |
Positioning accuracy(mm) | 0.05 |
Idle/processing speed(m/s) | 48/24 |
Protection system(standard/ optional) | Enclosure protection |
Format supported | PLT,DXF,AI etc |
Total power(KW) | 7.5/6-20 |
Other standard collocation | Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus and remote controller, etc. |

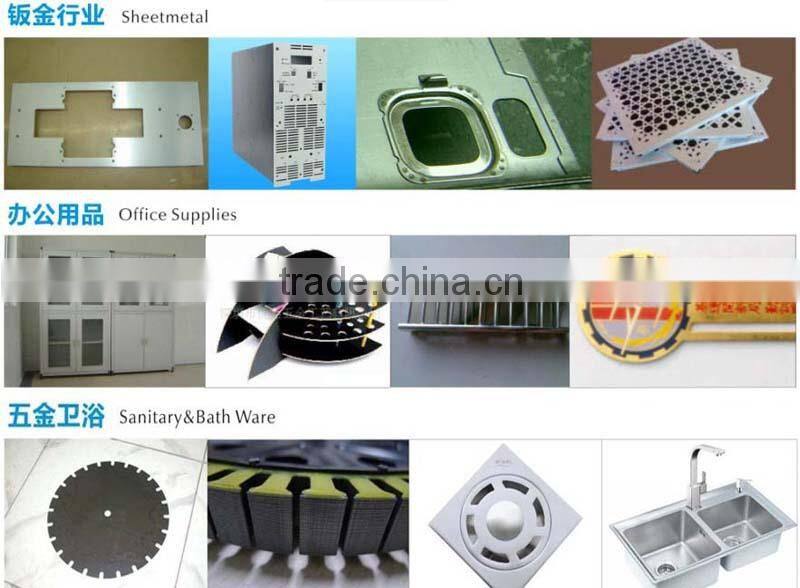

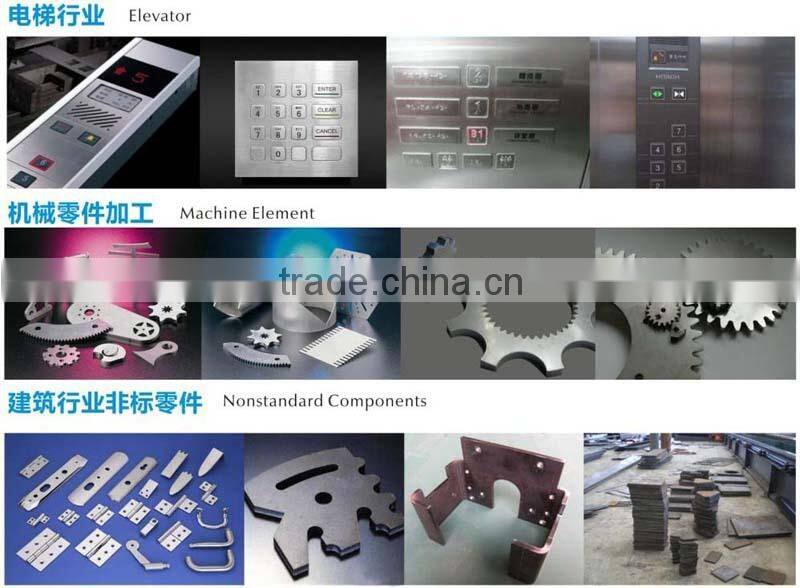

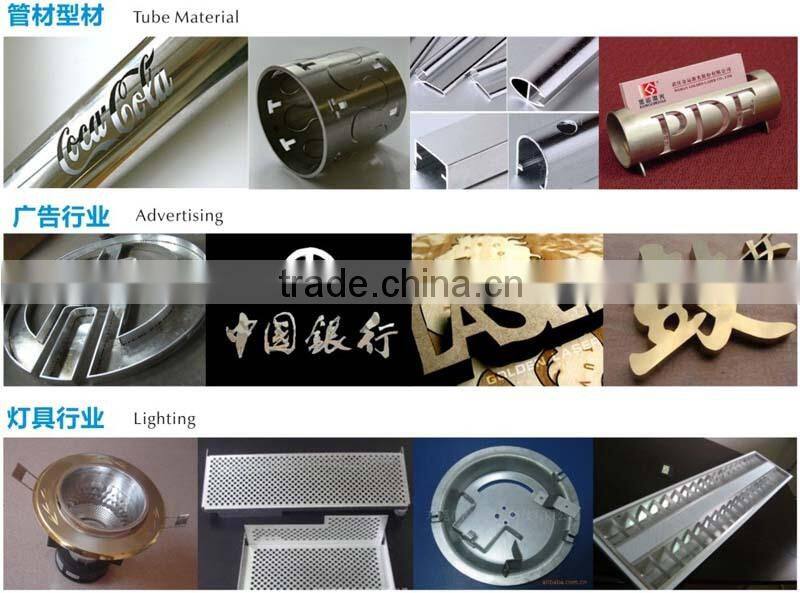

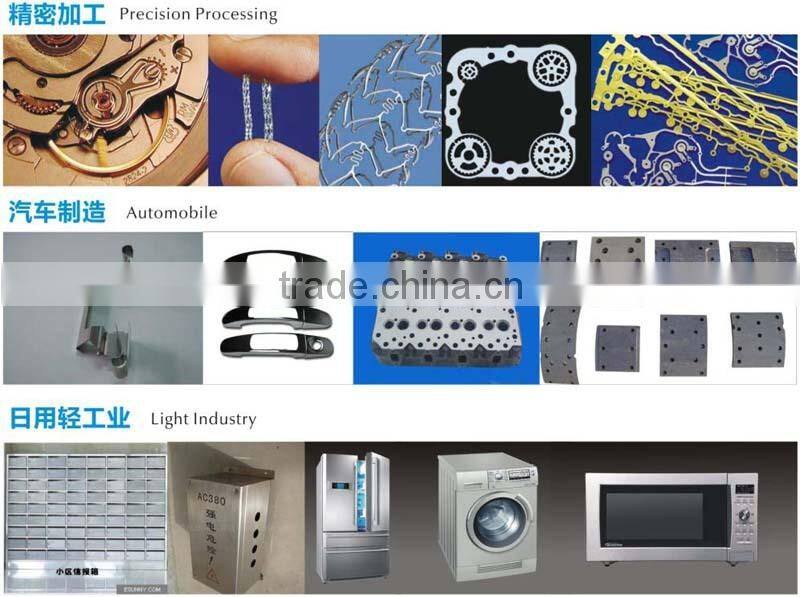

Laser Cutting Machine Application Field
Laser Metal Cutting Machine Application Material
suitable for cutting carbon steel, stainless steel, alloy steel, mild steel, spring steel, galvanized steel , iron, inox, aluminum, copper, brass, titanium and other metal sheets and pipes cutting.
applicable to sheet metals, electrical cabinet, kitchenware, hardware, metal enclosure, elevator panel, advertising, decoration, metal crafts, lighting lamps, medical instruments, automotive parts and other metal cutting fields.

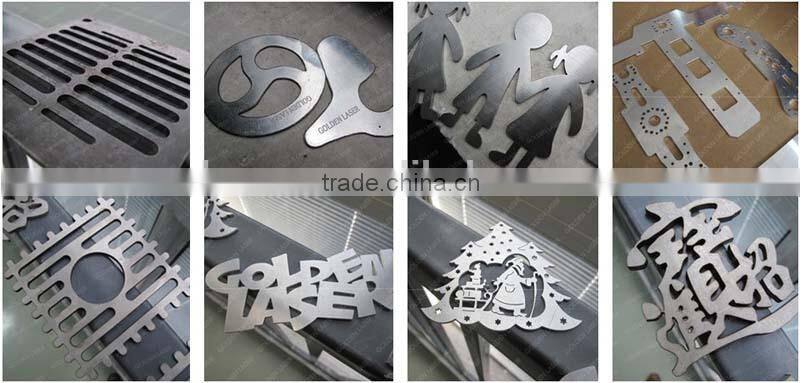

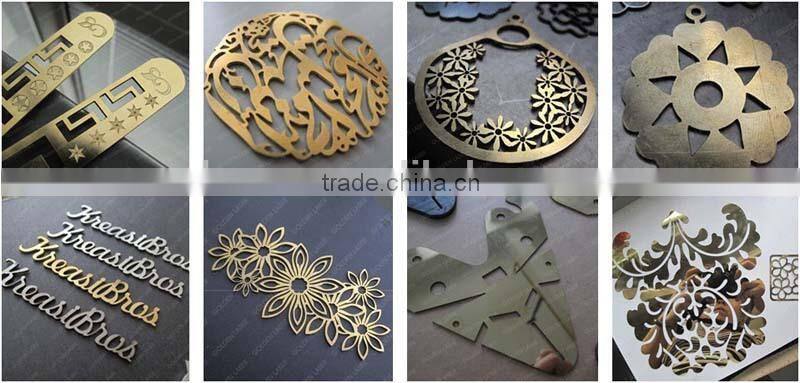

Laser Cutting Machine New Samples

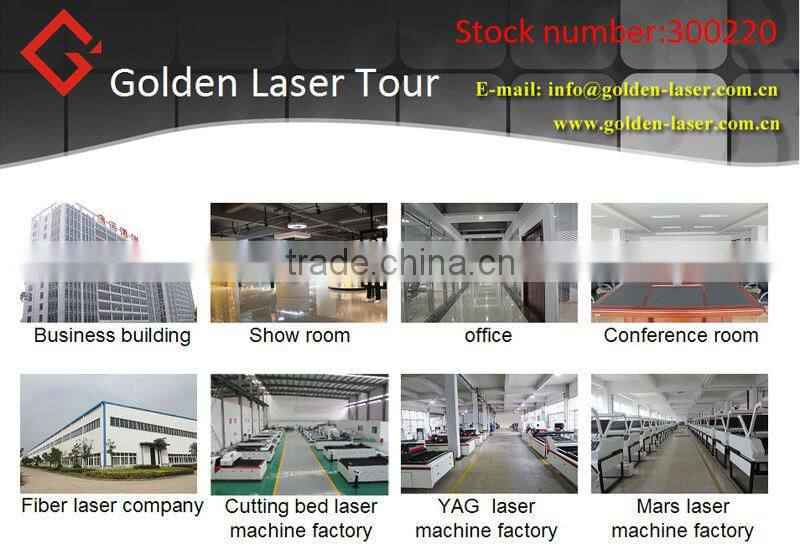

Why Golden Laser
- Brand. A Leading laser solution provider with 12 years of experience in laser industry.
- Responsibility & Reputation. As a public listed company, we carry much more responsibilities for our customers and global market than other competitors.
- Professional. We go deeper than just selling machines. We give professional advice and provide laser solution to help customers optimize their projects.
- Life-time Service. Besides 1 year of machine warranty, we provide life-time after-sales service. We have top R&D, After-Sale Service and Tech-Support teams EXCLUSIVE for overseas market to follow up customers’ technical support.
GOLDEN LASER is a listed laser machine company,who manufactures not only laser metal cutting machine,fiber laser cutting machine,yag laser cutting machine but also Co2 laser cutter,laser engraving machine,laser embroidery machine,laser welding machine and laser marking machine!

Welcome to contact Golden Laser by leaving a message below for further information. Your kindly response of below questions will help us to recommend the most suitable model to you asap.
1, What materials need to cut? size and thickness?
2, After processed, what will be the material used for? (application)
3, Which country will the machine be shipped to?
4,Are you an end user or machine distribuor?
- Attn: Ms. Kelly Lee
- E-M-A-I-L: info(at)
- Site:
- YouTube Channel: /user/Goldenlaservideos
Contact Us
- Wuhan Golden Laser Co., Ltd.
- Contact nameJaeny May Chat Now
- Phone86-150-71258391
- AddressGolden Laser Building,NO.6 Shiqiao 1ST Road,Jiang an district, Wuhan, Hubei
