Coherent 1000W Fiber CNC Laser Cutter Stainless Sheet Metal

Condition	New		Laser Type	Fiber Laser
Applicable Material	Metal		Cutting Thickness	up to 12mm metal
Cutting Area	1500x3000mm		Cutting Speed	adjustable
CNC or Not	Yes		Cooling Mode	Water Cooling
Control Software	Golden Laser Software		Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin	Hubei, China		Brand Name	Golden Laser
Model Number	XJG-150300DT		Certification	CE, ISO
After-sales Service Provided	Overseas service center available

Specifications

1000w fiber cnc laser cutter
1.cutting area1.5X3m,2X4m,2X6m
2.laser power300w 500w 1kw 2kw
3.high speed
4.high quality

(2)The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser equipment. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.

(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.

(4) Golden Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.

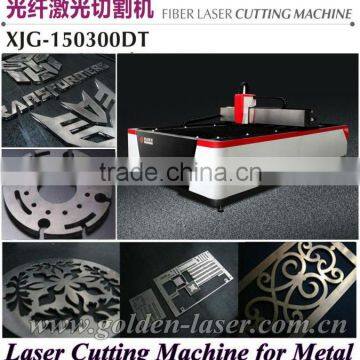

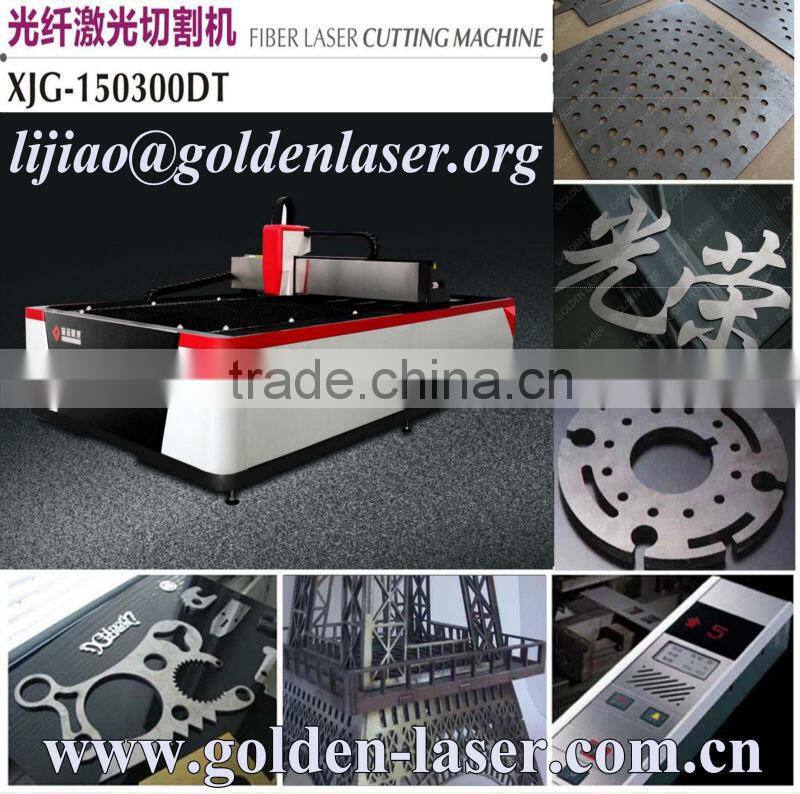

XJG-150300DT Fiber Laser Cutting Machine Main Technical Data:
Laser Type:	IPG Fiber laser /  Coherent fiber laser
Laser Power:	500W / 300W / 1000W / 2000W
Working area:	1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
Working Table Structure:	Fixed / Pallet Working Table
Control System:	PMAC full-closed loop servo control
Driving Mode:	Double ball screw driving / Double gear rack driving
Idle/Processing Speed:	48m/min / 24m/min
Positioning Accuracy:	0.05mm
Cooling System:	High precision constant temperature water chiller
Protection System:	Enclosure protection

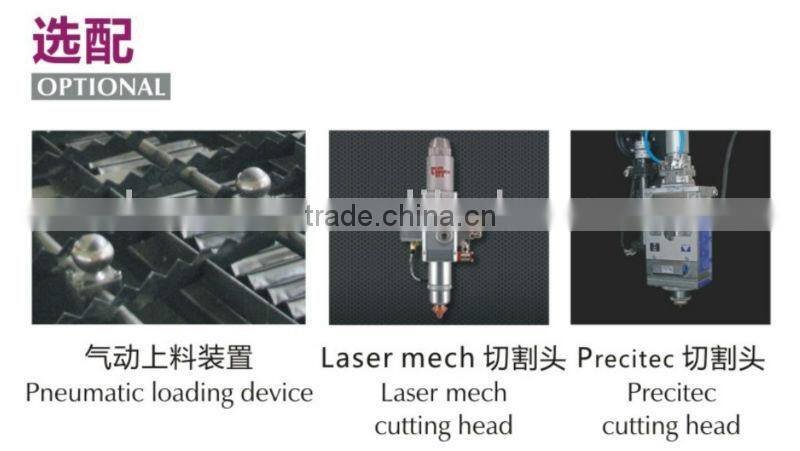

Laser Head:	Golden Laser / Precitec / Laser mech
Power Supply:	AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz
Total Power:	7.5KW / 6KW~20KW
Support Format:	PLT, DXF, BMP, AI, DST, DWG, etc.
Floor Space:	6.5mX3.2m (shuttle working table)

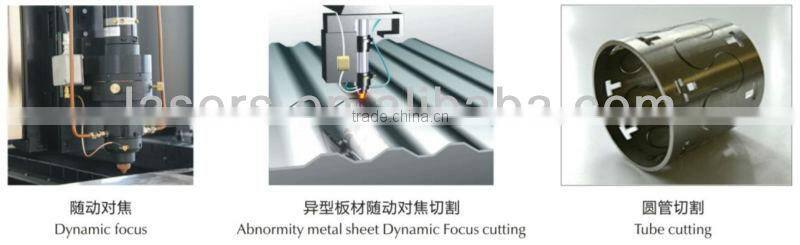

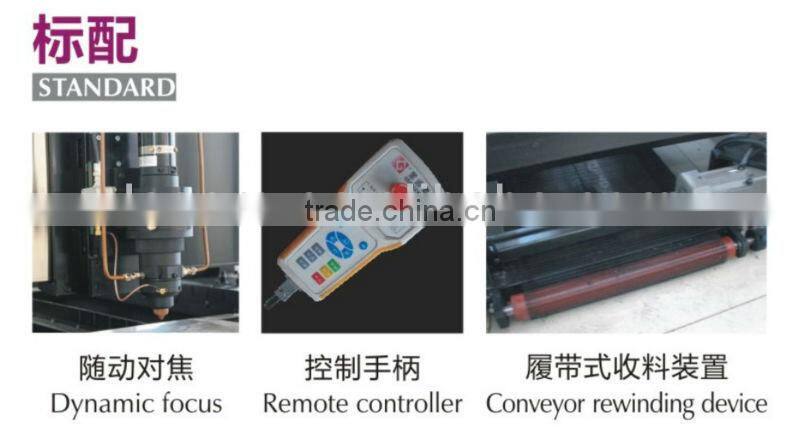

Other Standard Collocation:	Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc.
Related Model:
XJG-6040 DT	Fiber Laser Cutting Machine 600X400mm
XJG-13090 DT	Fiber Laser Cutting Machine 1300X900mm
XJG-150300 DT	Fiber Laser Cutting Machine 1500X3000mm
GJMSJG-Series	YAG Laser Cutting Machine 600X400mm,1300X900mm,1300X2500mm,1500X3000mm



Machine Features:

♦The double ball screw closed-loop system and imported open-type CNC system enable high processing accuracy and high working efficiency during high speed cutting.

♦Standard collocation of 500W fiber laser generator and optional 300W-2000W fiber laser generator ensures low operation and maintenance cost.

♦Open structure is easy and convenient for material uploading and unloading.

♦Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.

♦Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.

♦Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.

♦Optimized optical lens, specially designed nozzle and sensor technology realize smoother and more stable cutting.



Application Materials and Industry

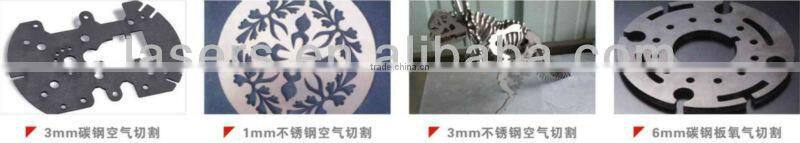

It is applicable to stainless steel, carbon steel, alloy, galvanized steel, titanium sheet and other metal sheets and pipes (different power due to different materials)

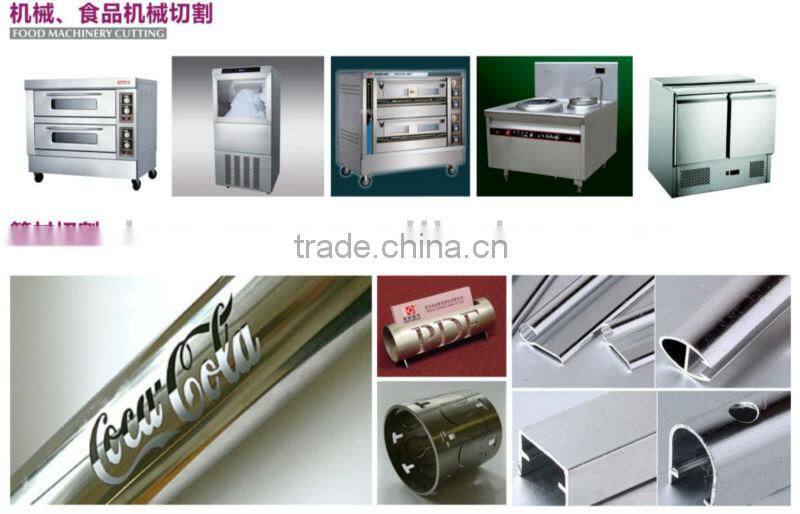

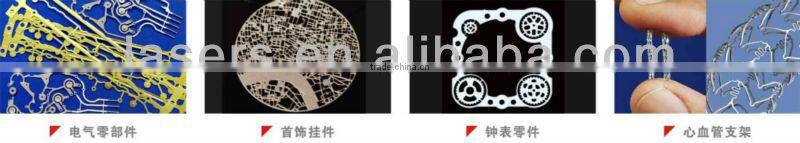

It is applicable to sheet metals, kitchenware, hardware, advertising, decoration, gifts, lighting lamps, medical instruments and other field.



<< Golden Laser - Metal Laser Cutting Machine Series:

In the field of laser applications for metal cutting, besides providing various working sizes of laser cutting machines for different industries and different requirement, Golden Laser provides a variety of types of laser generators with different power and comprehensive customized solutions for customers.



Different types of laser generators have different advantages for cutting. As a metal cutting machine manufacturer with solid strength and outstanding competitiveness, Golden Laser launched fiber laser generator, YAG lamp pump generator and CO2 RF metal laser tube for customers’ option. Customers can choose the most suitable laser generator to meet production demands according to the application industry, cutting materials, cutting requirements, budgets and other factors.



<< Advantages Comparison between Different Types of Laser Generators:

	Fiber Laser Generator	YAG Lamp Pump Laser Generator	CO2 RF Metal Laser Tube
Power	200W~2000W	500W/650W/850W/1300W	300W/500W
Advantages	Excellent laser beam quality, high cutting precision, high cutting speed, high efficient photoelectric conversion rate, low use-cost and maintenance cost, easy operation and convenient maintenance	Compared with fiber laser generator and CO2 RF metal laser tube of the same power, it has lower price, thicker material cutting ability, wider application field and lower one-time investment.	It can cut metal sheets and non-metal materials. Wider range of applicable materials. Adjustable output power. Maintenance free. Easy to operate and convenient to use.
Applicable Materials	All kinds of metal sheets and pipes	All kinds of metal sheets and pipes	All kinds of metal sheets, acrylic, wood board and other nonmetal materials
Applicable Industry	Sheet metal, hardware, watches, metal art craft works, etc.	Sheet metal, kitchenware, metal letters and accessories & hardware, etc.	Sheet metal, advertising, furniture and models, etc.

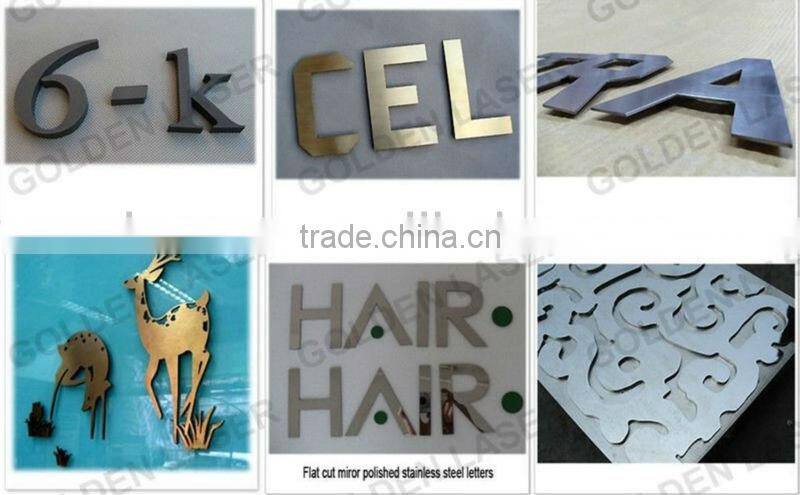

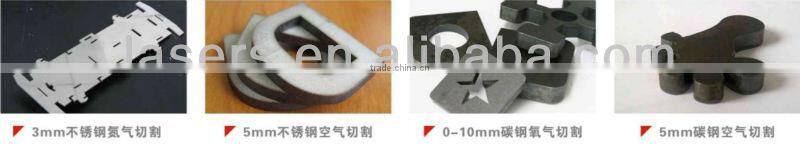

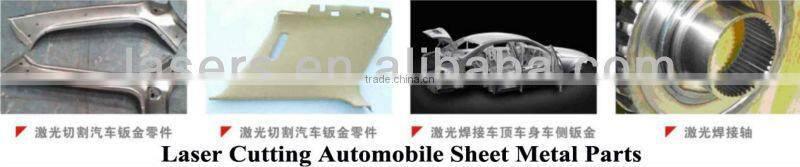

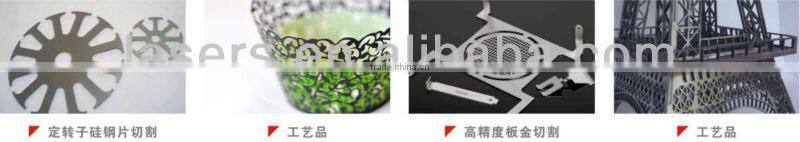

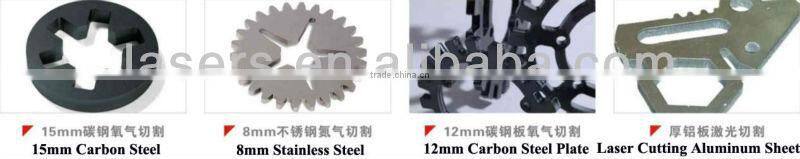

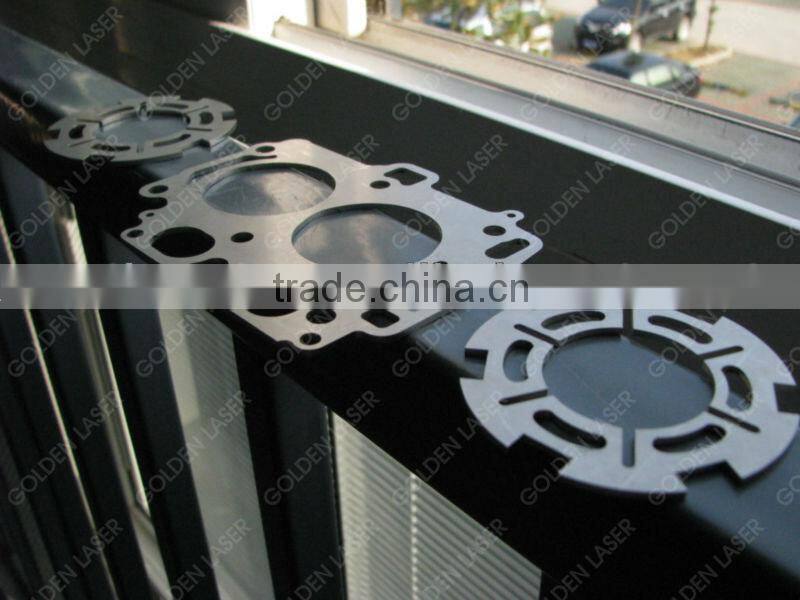

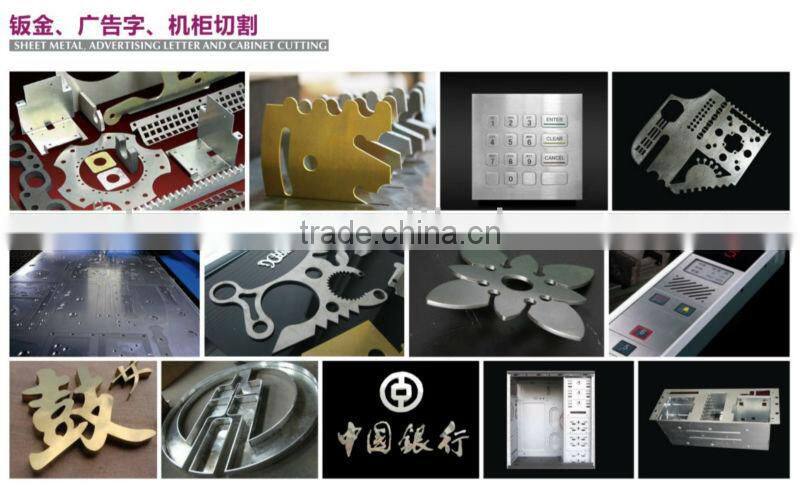

<< Sheet Metal, Advertising Letters and Cabinet Laser Cutting Samples:



When inquiry for price list,working videos,package,delivery time and more specification,please let me know :
1,Which material do you need to cut ?
2,What is the size and thickness ?
3,What is your business industry ? Are you an end user or reseller?

 We will be happy to help you in any way we can.
