500W Laser for Metal Cutting 8ft X 4ft

Condition	New		Laser Type	Other, YAG, YAG lamp-pumped solid-state laser generator
Applicable Material	Metal		Cutting Thickness	Max 10mm
Cutting Area	1300x2500mm,1500x3000mm		Cutting Speed	0~300mm/s (speed is changing due to different thickness of materials), 0~300mm/s (speed is changing due to different thickness of materials)
CNC or Not	Yes		Cooling Mode	Water Cooling
Control Software	Golden Laser Original Software		Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin	Hubei, China		Brand Name	GoldenLaser
Model Number	GJMSJG-150300DT/130250DT		Certification	CE, ISO
After-sales Service Provided	Engineers available to service machinery overseas

Specifications

laser for metal cutting
1,YAG 500w 650w 850w 1300w
2,Dynamic focus cutting
3,Laser cut MS,SS sheet/pipe
4,Low cost

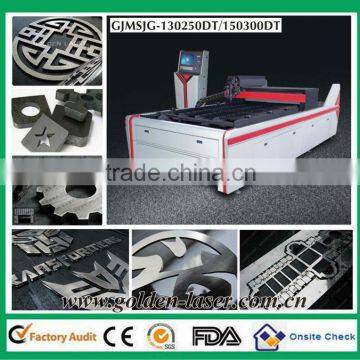

       500W Laser for Metal Cutting 8ft X 4ft



Golden Laser Provides integrated metal processing solutions of pattern copying, nesting, cutting (even and uneven surface cutting, rotary cutting and auto recognition cutting), marking, scribing, polishing & painting and other processes. The solutions provide our clients with unmatched and unique metal working effects.

The solutions have been successfully applied to many areas including sheet metal processing, advertising, electronic products & appliances, equipment panels & enclosure, etc. and played a pivotal role of enhancing quality and added value of the products.



GOLDEN LASER Series Metal Cutting Machines Advantages:

Features:

1. Thick steel plate frame with strong deformation resistance ability, stable performance and nice appearance. 2. With medium power YAG lamp-pumped laser (500W / 650W), it is able to cut any intricate graphics with high speed and high precision for various metal sheets. 3. Dynamic focusing device for automatic focus and continuous cutting uneven material. 4. Working table with ball transfer unit and pneumatic loading device for loading and unloading easily, saving labor power and avoiding material scratched. 5. Following bottom exhaust system, a very good air suction system, making the whole processing without fumes. 6. Digital operation panel and mobile controller, easy to use. 7. Advanced technologies of smart nesting, fast digitizing and auto-recognition ensure material saving and high efficiency. 8. Rotary attachment (integrated or detached type optional) for positioning punching, slotting, notching and cutting metal tubes and pipes. 9. You can just use air as auxiliary gas to laser cut (no required oxygen gas). Good cutting effect, maximizing reducing use-cost.

CO2 YAG Fiber Laser Cutting Machine



Advantages Comparison between Different Types of Laser Generators:

	Fiber Laser Generator	YAG Lamp Pump Laser Generator	CO2 RF Metal Laser Tube
Power	200W~2000W	500W/650W/850W/1300W	300W/500W
Advantages	Excellent laser beam quality, high cutting precision, high cutting speed, high efficient photoelectric conversion rate, low use-cost and maintenance cost, easy operation and convenient maintenance	Compared with fiber laser generator and CO2 RF metal laser tube of the same power, it has lower price, thicker material cutting ability, wider application field and lower one-time investment.	It can cut metal sheets and non-metal materials. Wider range of applicable materials. Adjustable output power. Maintenance free. Easy to operate and convenient to use.
Applicable Materials	All kinds of metal sheets and pipes	All kinds of metal sheets and pipes	All kinds of metal sheets, acrylic, wood board and other nonmetal materials
Applicable Industry	Sheet metal, hardware, watches, metal art craft works, etc.	Sheet metal, kitchenware, metal letters and accessories & hardware, etc.	Sheet metal, advertising, furniture and models, etc.



Recommend Model :GJMSJG-130250DT/150300DT

 metal laser cutting machine with precision ball screw transmission



Metal Laser Cutting Machine Main Features

1, It is welded by thick steel panel. It is stable and has good deformation resistance capability. Aging process technology ensures long-last duration and accuracy of the machine.



2, It is equipped with medium power yag lamp pump laser generator and can do cutting of any graphics within the size of 1500mm×3000mm(or 1300mm×2500mm). It is suitable for large-scale thin metal sheet cutting and the processing is fast and precise.



3, Auto following focus device realizes dynamic focus continuous cutting on materials with different thickness.conveyor rewind device

Realizes convenient material collecting.



4, The working table is equipped with universal wheel and pneumatic loading device(optional), which saves human labor, avoids metal sheet.Damage and ensures good cutting quality.



5, Separate digitalized operating table and movable remote controller is convenient for operation. There are several input modes of usb flash disk data copy, usb cable data transmission, network connections and other data transmission methods. One computer can control several laser machines, saving cost.



6, Standard collocation of automatic nesting software (do nesting on the remaining materials) and optional collocation of high speed pattern copying, auto-recognition cutting, polishing & painting and metal etching save materials and improves working efficiency.



7, The machine can be allocated with integrated rotary device or detached rotary device and can do fixed position punching, notching and cutting on metal pipes.



Application Field

Applicable Materials: stainless steel, mild steel, carbon steel, alloy steel, spring steel, iron, galvanized iron, galvanized sheet, copper, brass, aluminum, aluminium, bronze, gold, silver, titanium, metal sheets, metal plates, metal pipes, etc.

Applicable Industries: laser cutting machines are widely used in sheet metal processing, metals ironware components and parts, chassis, racks & cabinets processing, kitchen ware, metal crafts, metal sign letters, metal signage, elevator panel cutting, hardware, auto parts, jewelry, nameplates, electronics, advertising, etc.

( Cut Circle, Triangle, Octagonal etc. on sheet metal/Cut Metal Sinage )



GoldenLaser Cutting Machine Functions
(1)Cut lines and holes with different diameters from different directions on metal pipe and sheet
(2)Cut inclined section at the end section of the metal sheet and pipe
(3)Cut branch pipe intersected with the main circular pipe.
(4)Cut square hole,waist-shaped hole and circular hole on the metal sheet and pipe.
(5)Can truncate on the metal sheet and pipe

(6)Can cut all kinds of graphics on the surface of the square pipe and metal sheet.



Main Technical Parameter:
Model No.	GJMSJG-6040DT	GJMSJG-13090DT	GJMSJG-130250DT	GJMSJG-150300DT
Working Area	400×600mm	1300×900mm	1300×2500mm	1500×3000mm
Laser Type	YAG lamp-pumped solid-state laser generator
Laser Power	500W / 650W / 850W / 1300W
Working Table	Rack working platform
Cutting Speed	0~300mm/s (speed is changing due to different thickness of materials)
Positioning Accuracy	±0.1mm
Motion System	Digital offline control system, Servo motor, High precision ball screw transmitting system
Cooling System	Constant temperature water chiller
Power Supply	AC380V±5% 50/60Hz
Supporting Format	PLT, DXF, BMP, AI, DST, DWG, etc.
Standard	Dynamic focusing device, Remote controller, Conveyor rewinding device, Professional automatic nesting software
Optional	Rotary device, Pneumatic loading device, fast digitizing system, auto-recognition system, Polishing coloring, Pattern engraving, High pressure air compressor, Dryer and gas tank



Metal Laser Cutting Samples:
