Fowl Breeding Cage Welding Machine
- TIANJIN
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | DAPU | |
| Model Number | DP-1200A | Primary Voltage | 380V or according to client's voltage | |
| Rated Duty Cycle | 50% | Rated Capacity | 60kva*2pcs | |
| Dimensions | 2.5*2.1*1.4m | Usage | Fowl breeding cage welding machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Fowl breeding cage welding machine1)1.8-3mm wire,25-200 aperture,1.2m width
2)Automatic welding
4)Factory in Anping,China

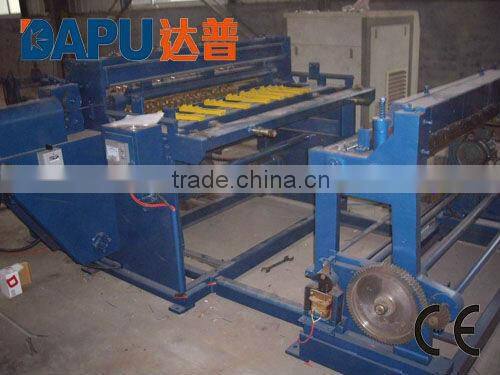

Fowl breeding cage welding machine
Fowl breeding cage welding machine for bottom cage
Wire Diameter | 1.8-3mm | Width of Mesh | 1200mm |
Longitude Wire Space | 50-200mm | Cross Wire Space | 25-200mm |
Welding Electrodes | 16 pcs | Welding Speed | 60 times/min |
Longitude Wire Feeding | From Wire Coils | Cross Wire Feeding | Dia.1.8-2.5mm From wire Coils Dia.2.6-3.0mm Should be Pre-Cut |
Rated Electrical Power | 60kva*2 pcs | Rated Voltage | 3-phase,380V/220V/415V/440V 50Hz or 60Hz |
Overall Size | 2.5*2.1*1.4m | Weight | 2500kg |
Fowl breeding cage welding machine for top cage
Wire Diameter | 2-3.5mm | Width of Mesh | 1200mm |
Longitude Wire Space | 50-200mm | Cross Wire Space | 25-200mm |
Welding Electrodes | 16 pcs | Welding Speed | 45 times/min |
Longitude Wire Feeding | From Wire Coils | Cross Wire Feeding | From Wire Coils |
Rated Electrical Power | 60kva*2 pcs | Rated Voltage | 3-phase,380V/220V/415V/440V 50Hz or 60Hz |
Overall Size | 5.5*2.1*1.5mm | Weight | 2500kg |
Note:
If your wanted wire diameter is within both of the two machines. You can only choose the cage welding machine for top cage. It can also be used for welding bottom cage mesh, but lower speed.
If your wanted wire diameter or mesh opening size are not included in the two machines. Our factory can also supply other welding machine to meet yourrequirments.

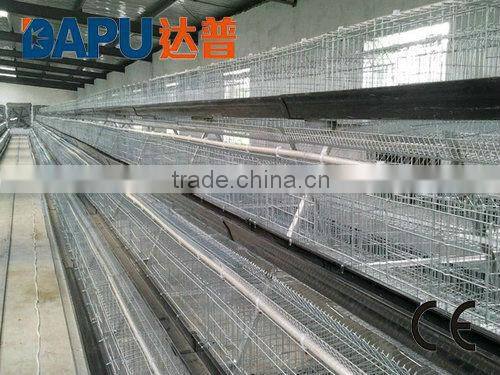

Fowl breeding cage
