Automatic Chicken Cage Mesh Welding Machine Factory

Specifications

Automatic chicken cage mesh welding machine factory

Automatic chicken layer cage mesh welding machine manufacturer

Automatic chicken breeding cage mesh welding machine supplier

Automatic chicken cage mesh welding machine for bottom cage mesh.

1.The machine only need one worker to operate.

2.The longitudes wires are fed from wire coils automatically, the cross wires are fed fro wire coils when wire diameter is 1.8-2.5mm; cross wires should be pre-straightened and pre-cut and fed from hopper device automatically when wire diameter is 2.6-3mm.

3. The machine is equipped with weft cutting and positioning device, make the cross wires identical and regular. It is uncessary to slice the side.

4. The mesh pulling part adopts elastic tension link and opening positioning mesh, it is easy to regulate the mesh hole.

5. Welding aperture can adjust randomly within range.

Automatic breeding chicken cage mesh welding machine manufacturer

Automatic layer chicken cage mesh welding machine supplier

Automatic chicken cage mesh welding machine for top cage mesh

1. The machine adopts air cylinder pulling mesh. The air cylinder of both sides will cut the edges automatically.

2. The longitude wires and cross wires are fed from wire coils.

3. The cross wire feeding is controllled by servo motor, which can feed different lengh of cross wires in the same sheet. It can feed short cross wires to reserve the designed mesh hole.

4.This machine is controlled by PLC&Touch screen.

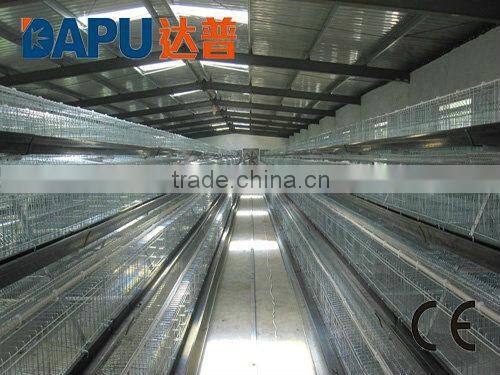

Finished Chicken cages
