Home > Products > Diesel Water Pump Set > Diesel Pump Industrial Water Supply

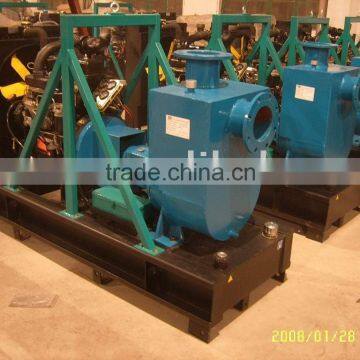

Diesel Pump Industrial Water Supply

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	U-POWER, U-Power
Model Number	84GPR01, 84GPR01	Theory	Centrifugal Pump
Structure	Single-stage Pump	Usage	Water
Power	Other, diesel engine	Standard or Nonstandard	Standard
Fuel	Diesel	Pressure	Low Pressure
Application	Metering

Product Description

Specifications

Diesel Pump Set
1)Ricardo engines powered
2)cast iron:shaft,impeller,casing
3)stuffing seal
4)farm irrigation pump

diesel pump set treating fresh water,Industrial water supply

Outflow:460cbm/h

Head/lift:45m

Selected Water Supply Solutions: Example 1

Model	84GPR01(Q=460m³/h H=45m)
Usuage	FARM IRRIGATION
Treated Water	FRESH WATER/RIVER WATER
Model Diesel Engine	Ricardo
Rated Output/Max output(KW)	84KW(115HP)/93KW(127HP)
Rated Speed (r/min)	1500
Starting Method	24V DC Electric motor
Cooling Method	closed water cooling
Governing Method	Mechanic governing
Intake Method	Turbocharged
Cylinders	6
Bore/Stroke	105/120mm
Type	closed water cooling,in-line,4 stroke,humid liner,direct injection

Model Diesel Water Pump	IS200-150-400
Type	sigle grade,sigle suction,centrifugal pump
Outflow/head lift	460m³/h,head lift:45m
Suction lift	7m
Shaft Power	74.2KW
Inlet diameter	200mm(8inch)
Outlet diameter	150mm(6inch)
Casing material	cast iron
Shaft material	cast iron
Impeller material	cast iron
Sealing method	stuffing sealing

Display/Control System	Display oil pressure,charging current,water temperature,oil temperature.

Standar Equipments	Diesel engine: 1set
	Water pump: 1set

	5" Outlet flexible hose:1000m(20m/coil)===>best quality
	5" Connection joint:50sets(Aluminium alloy)===>best quality
	Bottom valve with flange and seal gasket:1set,bolt&screw:8 sets
	Inlet flange(6") with seal gasket:1set,bolt&screw:8 sets
	Outlet flange(5") with seal gasket:1set,bolt&screw:8 sets
	Outlet ball valve with short steel pipe for priming water:1set
	Oil filter:1set
	Fuel filter:1set
	Air filter:1set
	Display meters: 4set
	Flexible shaft joint: 1pc
	Common base with fuel tank(8hr working):1set
	Battery:DC 12V*1
	Accessary spare parts
	Technic file: 1set
Product N.W.(KG)
Packing	Wooden case
Packing
Unit Price	FOB QINGDAO,
Payment Terms	T/T30% deposit,after collection,arrange production.The 70% should be paid before the shipment.When got full payment,we release the full set of Original DOCS.
Delivery Time	10 working days after received 30%deposit
MOQ	1SET
