2014 hot sales!Diesel Water Pump Set for made in China

Specifications

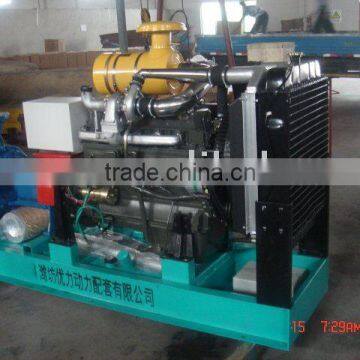

Diesel water pump set

Usage: Farm irrigation,fire fighting,industrial water supply system

Treated Water: Fresh water,River water

Outflow:30-2016m³/h

Head Lift:7-120m

Diesel engine parameters:

1)Model:R6105ZD

2)Rated output/Max output(KW):84/92.4KW

3)Rated speed(r/min):1500

4)Starting method: Electric motor 24V DC

5)Cooling method: Closed water cooling

6)Governing method: Mechanical/Electronic governing(Optional)

7)Intake method: turbocharged

8)Cylinders:6

9)Bore/Stroke:105/125mm

10)Type: in line,4 stroke, humid liner, direct injection

Water pump parameters:

1)Model:IS200-150-400A

2)Type: Single grade, single suction,centrifugal

3)Outflow:429m³/h

4)Head:39.1m

5)Shaft power:62KW

6)Inlet diameter:200mm

7)Outlet diameter:150mm

8)Casing material: cast iron

9)Shaft material: cast iron

10)Impeller material:cast iron

11)Sealing method: Stuffing sealing/Mechanical sealing(Optional)

Control system(OPTIONAL):

1) ATS function

2)Warning of oil low pressure, slow speed, high water temperature, high oil temperature etc

3)Display functions with warning ,start and stop

Standard equipment:

1)Diesel engine: 1set

2)Water pump: 1set

3)Control panel: 1set

4)Flexible shaft joint: 1pc

5)Common base:1set

    Fuel tank:optional

6)Accessory spare parts 1set

7)Technical file: 1set

8)With affiliated sensors and sensor wires

9)Inlet/outlet flange,bolt&screws,bottom valve and filters (OPTIONAL)

Quality Gurantee:1year/1500working hours(the first reach is valid )
